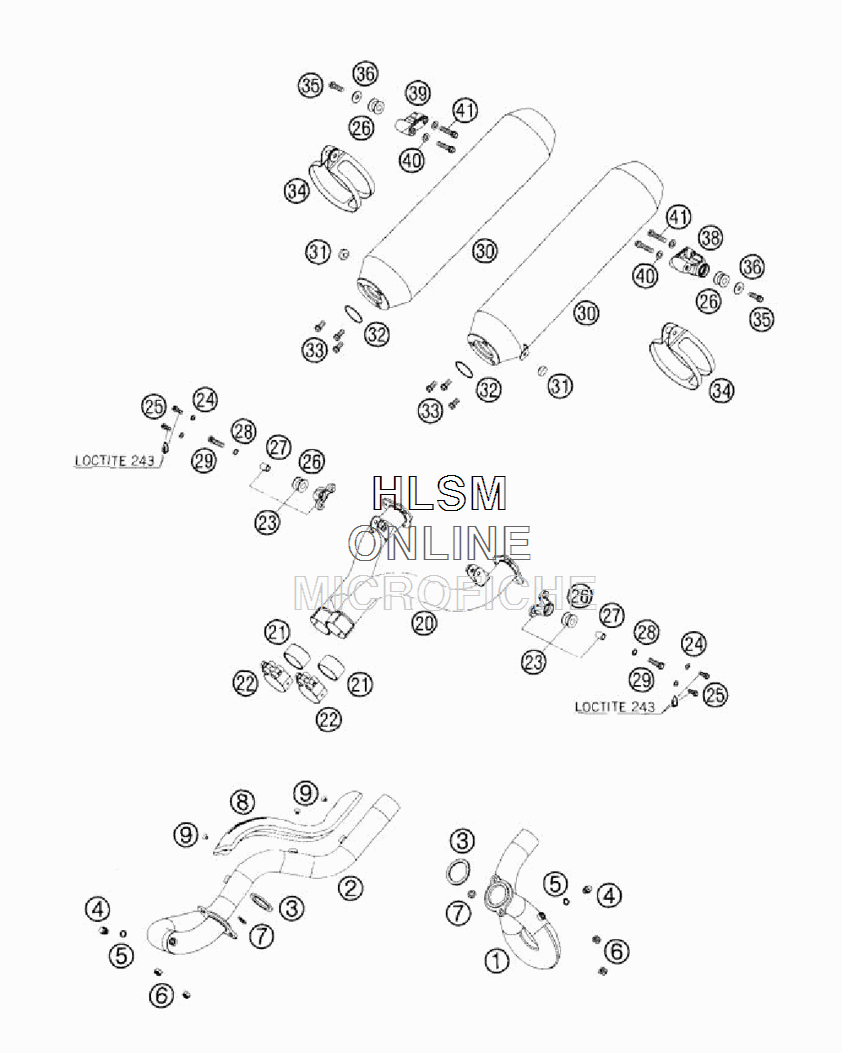

EXHAUST PIPES - EXHAUST SILENCER для Ktm 950 ADVENTURE (S) - 2005 года выпуска
-
№АртикулНазвание
-
160005008000 EXHAUST PIPE REAREXHAUST PIPE REAR
-
260005007100 EXHAUST PIPE FRONTEXHAUST PIPE FRONT
-
360005005000 GASKETGASKET
-
40910100003 PLUG DIN0910-M10X1PLUG DIN0910-M10X1
-
50603100141 COPPER GASKET DIN7603-10X1 4X1COPPER GASKET DIN7603-10X1 4X1
-
651010086100 SELF LOCKING NUT M 8 CUSELF LOCKING NUT M 8 CU
-
70125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
860005011000 THERMAL SHIELDTHERMAL SHIELD
-
90991060082 FLAT H.SCREW M6X8 DIN7991 NIROFLAT H.SCREW M6X8 DIN7991 NIRO
-
2060005048000 DISTRIBUTOR TUBEDISTRIBUTOR TUBE
-
2160005005001 GRAPHIT RING 42X47X25GRAPHIT RING 42X47X25
-
2260005051000 EXHAUST CLAMP D=49MMEXHAUST CLAMP D=49MM
-
2358405085044 SILENCER BRACKET CPL.SILENCER BRACKET CPL.
-
240137060003 SPRING WASHER DIN0137-8 6SPRING WASHER DIN0137-8 6
-
250015060203 HH COLLAR SCREW M6X20 WS=8HH COLLAR SCREW M6X20 WS=8
-
2654305068100 DAMP. COMPONENT SILICONE GREYDAMP. COMPONENT SILICONE GREY
-
2756505069000 SPACER BUSHING 8,4X12X16SPACER BUSHING 8,4X12X16
-
2836003014000 LOCK WASHER 8MMLOCK WASHER 8MM
-
290015080303 HH COLLAR SCREW M8X30 WS=10HH COLLAR SCREW M8X30 WS=10
-
3060005083000 SILENCER (EURO/AUS)SILENCER (EURO/AUS)
-
3060005183000 SILENCER (USA)SILENCER (USA)
-
3154308042000 RUBBER BUFFERRUBBER BUFFER
-
3260005005002 EXHAUST GASKETEXHAUST GASKET
-
330015080163 HH COLLAR SCREW M8X16 WS=10HH COLLAR SCREW M8X16 WS=10
-
3460005095000 CLAMP FOR SILENCERCLAMP FOR SILENCER
-
350015080253 HH COLLAR SCREW M8X25 WS=10HH COLLAR SCREW M8X25 WS=10
-
360021080003 WASHER DIN9021-A 8,4WASHER DIN9021-A 8,4
-
3860005085000 SILENCER/HANDLE HOLDER USSILENCER/HANDLE HOLDER US
-
3960005086000 SILENCER/HANDLE HOLDER R/SSILENCER/HANDLE HOLDER R/S
-
400125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
410015080353 HH COLLAR SCREW M8X35 WS=10HH COLLAR SCREW M8X35 WS=10
