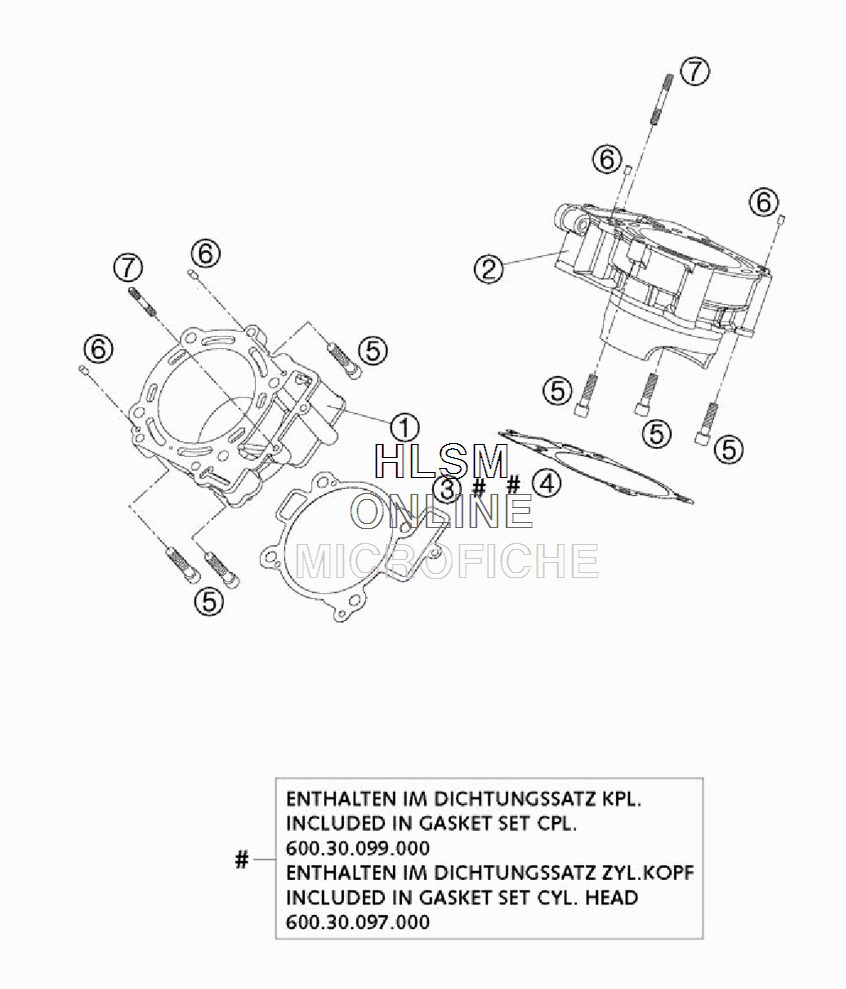

CYLINDER для Ktm 950 ADVENTURE S US - 2005 года выпуска
-
№АртикулНазвание
-
160030005100 CYLINDER FRONT D=100CYLINDER FRONT D=100
-
260030105100 CYLINDER REAR D=100CYLINDER REAR D=100
-
360030035000 CYLINDER-BASE GASKET FR 0,35MMCYLINDER-BASE GASKET FR 0,35MM
-
460030135000 CYLINDER-BASE GASKET RR 0,35MMCYLINDER-BASE GASKET RR 0,35MM
-
50912080353 AH SCREW DIN0912-M 8X35AH SCREW DIN0912-M 8X35
-
60474050100 GROOVED PIN DIN1474 5X10GROOVED PIN DIN1474 5X10
-
760030043020 STUD M6X47STUD M6X47
