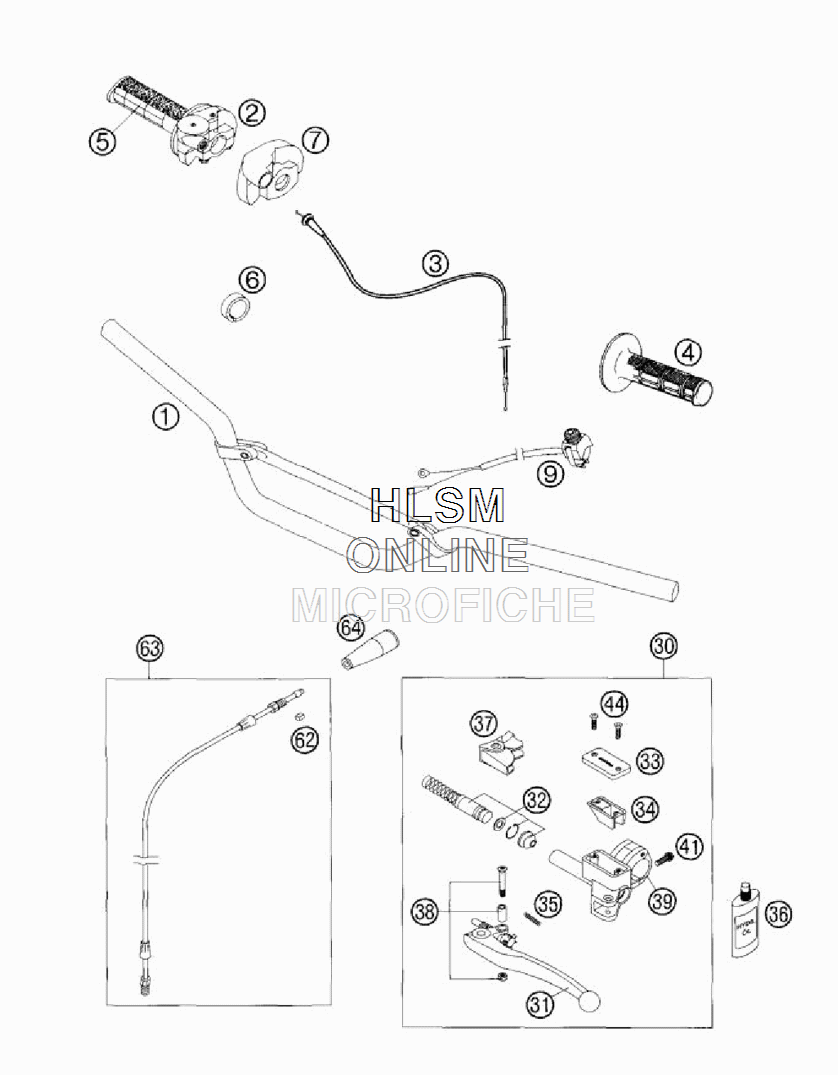

HANDLEBAR W/ CONTROLS для Ktm 65 SX - 2005 года выпуска`
-
№АртикулНазвание
-
146102001200 HANDLEBARHANDLEBAR
-
246102010000 THROTTLE GRIP W COVERTHROTTLE GRIP W COVER
-
346102091000 THROTTLE CABLE DOMINOTHROTTLE CABLE DOMINO
-
450202052000 FIXED GRIP DOMINO BLACKFIXED GRIP DOMINO BLACK
-
550202003000 TWIST GRIP COVER DOMINO BLACKTWIST GRIP COVER DOMINO BLACK
-
646002012000 SPACER BUSHING 21,5X28X7,5SPACER BUSHING 21,5X28X7,5
-
750302020000 PROTECTION COVERPROTECTION COVER
-
950311089200 SHORT CIRCUIT BUTTONSHORT CIRCUIT BUTTON
-
3046102030100 MASTER CYLINDER CPL. D=9MMMASTER CYLINDER CPL. D=9MM
-
3154602031000 CLUTCH LEVER SHORT CPL.CLUTCH LEVER SHORT CPL.
-
3159002031000 CLUTCH LEVER LONG CPL.CLUTCH LEVER LONG CPL.
-
3259002032100 REP.KIT PISTON 9,0MMREP.KIT PISTON 9,0MM
-
3350302033100 COVERHYD,CLUTCHCOVERHYD,CLUTCH
-
3450302034000 RUBBER FOR RESERVOIRRUBBER FOR RESERVOIR
-
3559002035000 SPRING FOR CLUTCH LEVERSPRING FOR CLUTCH LEVER
-
3650302036200 OIL FOR HYD. CLUTCH 75MLOIL FOR HYD. CLUTCH 75ML
-
3750302037000 PROTECTCAP FOR LEVER PERCHPROTECTCAP FOR LEVER PERCH
-
3850302038000 LEVER SCREW CPL.LEVER SCREW CPL.
-
3950302030150 CLAMP WITH PINCLAMP WITH PIN
-
410015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
440965040123 FLAT HEAD SCREW DIN0965-M 4X12FLAT HEAD SCREW DIN0965-M 4X12
-
6250332063050 SELF CUTTING RING HYDR.PIPESELF CUTTING RING HYDR.PIPE
-
6346132063000 PIPE KIT FOR HYDR.CLUTCHPIPE KIT FOR HYDR.CLUTCH
-
6454002016000 PROTECTION CAPPROTECTION CAP
