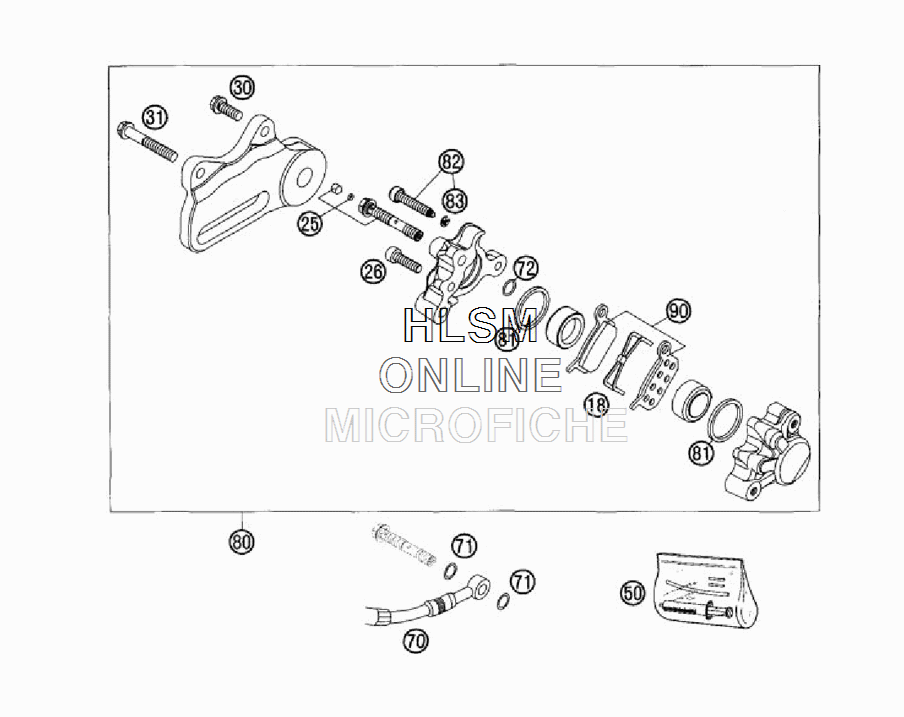

BRAKE CALIPER REAR для Ktm 65 SX - 2005 года выпуска`
-
№АртикулНазвание
-
1845113018000 RETAINING SPRINGRETAINING SPRING
-
2546113225000 HOLLOW SCREW CPL.HOLLOW SCREW CPL.
-
260912050163 AH SCREW DIN0912-M 5X16AH SCREW DIN0912-M 5X16
-
300015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
310015060403 HH COLLAR SCREW M 6X40 WS=8HH COLLAR SCREW M 6X40 WS=8
-
5045119050000 BLEEDER INJECTION-SET 50-65BLEEDER INJECTION-SET 50-65
-
7046113070000 BRAKE HOSE REARBRAKE HOSE REAR
-
710770060019 O-RING 6,00X1,00O-RING 6,00X1,00
-
720770080019 O-RING 8,00X1,00 EPDMO-RING 8,00X1,00 EPDM
-
8046113080000 BRAKE CALIPER REAR CPL.BRAKE CALIPER REAR CPL.
-
810770022020 O-RING 22X2X2 EPDMO-RING 22X2X2 EPDM
-
8245113225000 AH SCREW + CIRCLIPAH SCREW + CIRCLIP
-
830799025000 TAB WASHER DIN6799 RS2,5TAB WASHER DIN6799 RS2,5
-
9045113030000 BRAKE PAD SETBRAKE PAD SET
