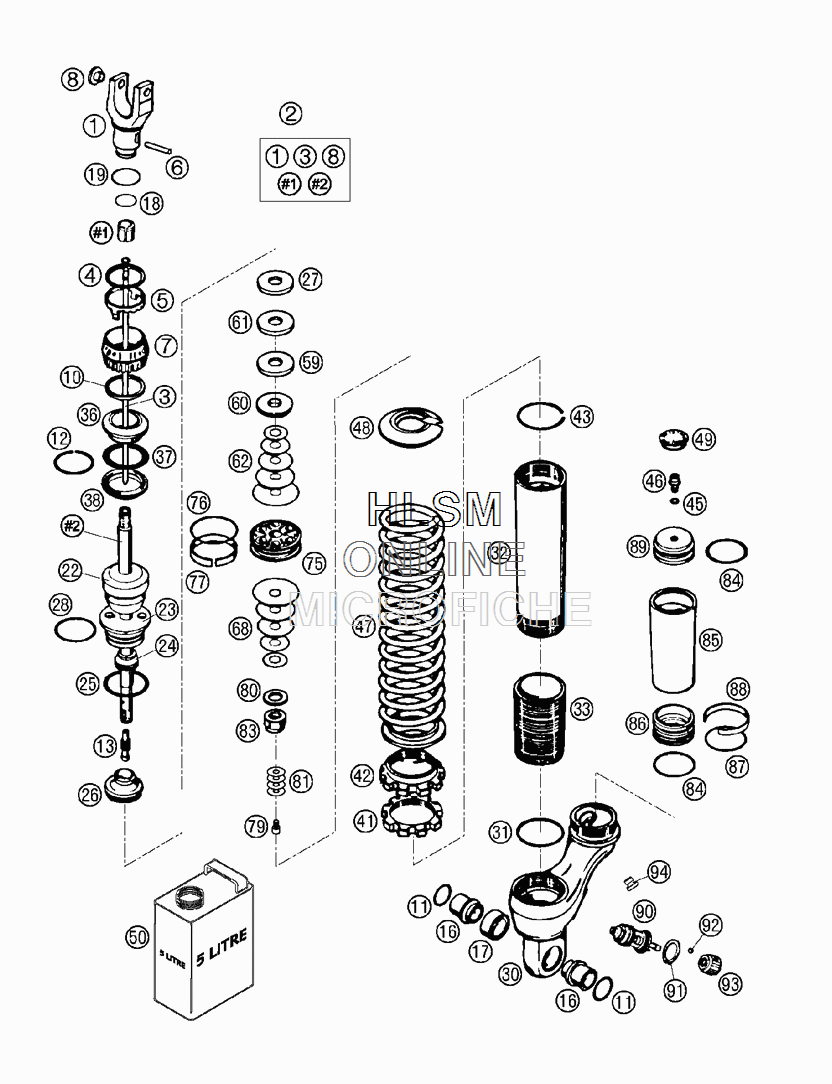

MONOSHOCK - DISASSEMBLED для Ktm 640 SUPERMOTO WHITE CHASSIS - 2005 года выпуска
-
№АртикулНазвание
-
146811558 SHOCK ABS. BOTTOM-FORK L75BSHOCK ABS. BOTTOM-FORK L75B
-
246811560S PISTON ROD D=14 BA M14X1PISTON ROD D=14 BA M14X1
-
346811545S NEEDLE CPL. D=4 BA; L=183NEEDLE CPL. D=4 BA; L=183
-
446811222 O-RING 36X0,5O-RING 36X0,5
-
546811263 WASHERWASHER
-
646811261 PIN 4X35PIN 4X35
-
746811262 ADJ. KNOB D=41ADJ. KNOB D=41
-
846811205 ADAPTOR-BUSH M10X1,50; D=15ADAPTOR-BUSH M10X1,50; D=15
-
1046811221 O-RING 35X3O-RING 35X3
-
1146811050 SEAL KGWSEAL KGW
-
1246811268 CIRCLIP 22X1,2CIRCLIP 22X1,2
-
1346811259 NEEDLE SEAT 5X17,25NEEDLE SEAT 5X17,25
-
1646811078 ADAPTOR KGW 10X24ADAPTOR KGW 10X24
-
1746811027 BUSHING KGW 1525BUSHING KGW 1525
-
1846811499 O-RING NBR 21X2O-RING NBR 21X2
-
1946811500 O-RING NBR 32X1,5O-RING NBR 32X1,5
-
2246810365 BUMP RUBBER WP55 WHITEBUMP RUBBER WP55 WHITE
-
2346811045 SCREW CAP M47,4; H=22,5SCREW CAP M47,4; H=22,5
-
2446811044 DUST SEAL 1424DUST SEAL 1424
-
2546810325 O-RING 35X5O-RING 35X5
-
2646811540S1 ADAPTER CPL. D=46; H=23 BAADAPTER CPL. D=46; H=23 BA
