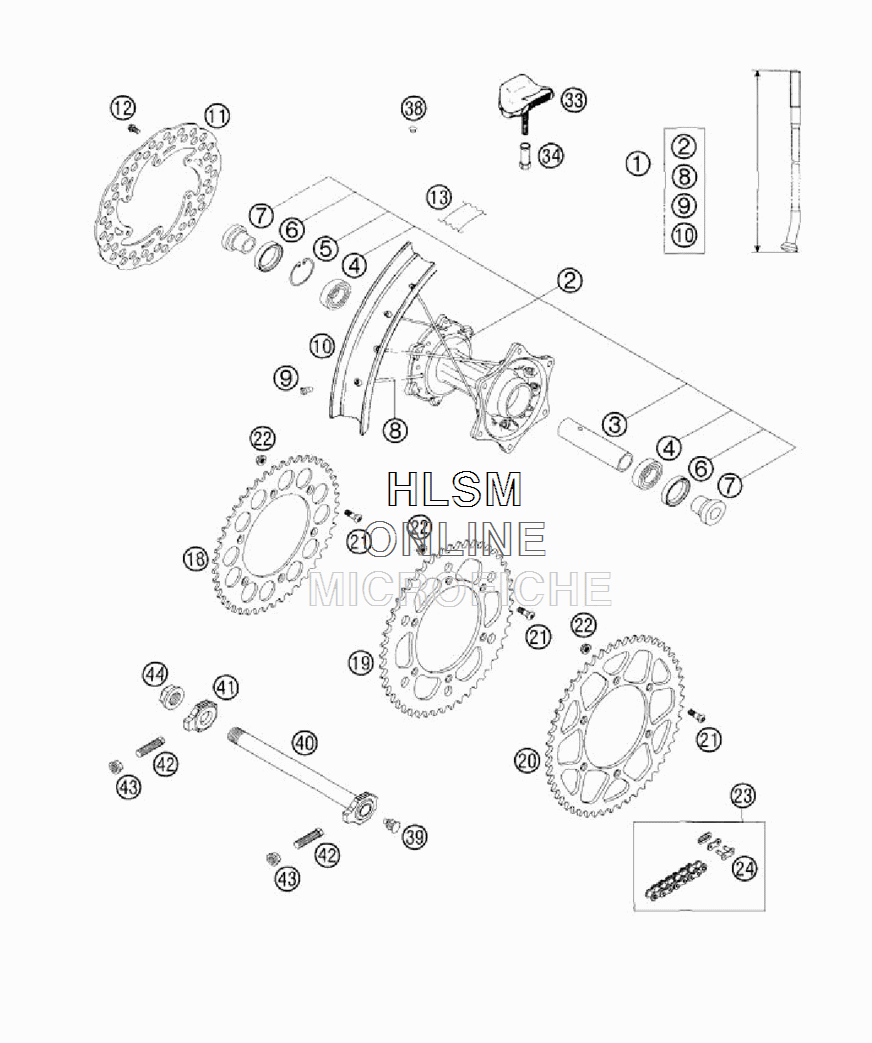

REAR WHEEL 18 AND 19 для Ktm 525 EXC RFS - 2005 года выпуска`
-
№АртикулНазвание
-
154810001344 REAR WHEEL 2,15X18" EXCELREAR WHEEL 2,15X18" EXCEL
-
25481001004496 REAR HUB CPL. GOLDREAR HUB CPL. GOLD
-
359010011000 BUSHING SPACER TUBE 121,5MMBUSHING SPACER TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X41X7 BSLSHAFT SEAL RING 32X41X7 BSL
-
754610016000 BUSHING FOR HUBBUSHING FOR HUB
-
850310072195 SPOKE M5X195-10G 18" DDESPOKE M5X195-10G 18" DDE
-
958309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
1054810070000 REAR RIM 2,15X18" EXCEL ALIREAR RIM 2,15X18" EXCEL ALI
-
1154810060000 BRAKE DISC REAR D=220MMBRAKE DISC REAR D=220MM
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18 AND 19RIM BAND 18 AND 19
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151051 REAR SPROCKET 51-FREAR SPROCKET 51-F
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2350310165118 CHAIN 5/8X1/4 + MASTER LINK (118 ROLLS)CHAIN 5/8X1/4 + MASTER LINK (118 ROLLS)
-
2350310265114 X-RING CHAIN 5/8X1/4" +M.LINK (114 ROLLS)X-RING CHAIN 5/8X1/4" +M.LINK (114 ROLLS)
-
2350310265118 X-RING CHAIN 5/8X1/4" +M.LINK (118 ROLLS)X-RING CHAIN 5/8X1/4" +M.LINK (118 ROLLS)
-
2450310166000 MASTER LINK 5/8X1/4"MASTER LINK 5/8X1/4"
-
2450310266000 MASTER LINK 5/8X1/4" X-RINGMASTER LINK 5/8X1/4" X-RING
-
3354010100100 RIM LOCK VM3 (2.15)RIM LOCK VM3 (2.15)
-
3450310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4050310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAINTENSIONERR/SCHAINTENSIONERR/S
-
4250304040000 SPEC. SCREW M10X1,25X40 WS=10SPEC. SCREW M10X1,25X40 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUTM20X1,5HEXAGON NUTM20X1,5
