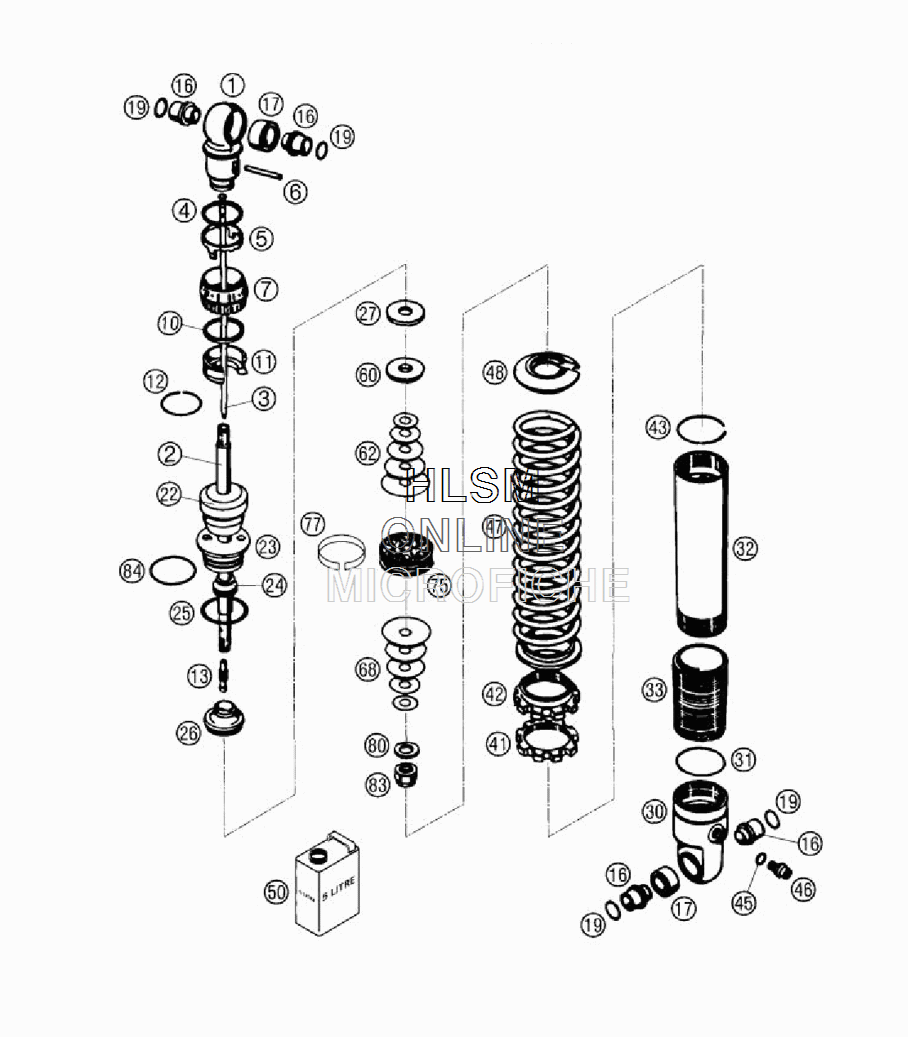

MONOSHOCK - DISASSEMBLED для Ktm 50 SX Pro Sr LC - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    46811525 SHOCKABS. BOTTOM L=46
    SHOCKABS. BOTTOM L=46
  • 2
    36120576 PISTON ROD D=14;L=96
    PISTON ROD D=14;L=96
  • 3
    46811391S NEEDLE CPL. D=4; L=112
    NEEDLE CPL. D=4; L=112
  • 4
    46811222 O-RING 36X0,5
    O-RING 36X0,5
  • 5
    46811263 WASHER
    WASHER
  • 6
    46811261 PIN 4X35
    PIN 4X35
  • 7
    46811262 ADJ. KNOB D=41
    ADJ. KNOB D=41
  • 10
    46811221 O-RING 35X3
    O-RING 35X3
  • 11
    46811367 INTERMEDIATO RING H=4
    INTERMEDIATO RING H=4
  • 12
    46811268 CIRCLIP 22X1,2
    CIRCLIP 22X1,2
  • 13
    46811259 NEEDLE SEAT 5X17,25
    NEEDLE SEAT 5X17,25
  • 16
    46811077 ADAPTOR BUSH KGW 10X22
    ADAPTOR BUSH KGW 10X22
  • 17
    46811027 BUSHING KGW 1525
    BUSHING KGW 1525
  • 19
    46811050 SEAL KGW
    SEAL KGW
  • 22
    36120427 BUMP RUBBER WP65 L=20
    BUMP RUBBER WP65 L=20
  • 23
    36120651 SCREW CAP M37,65
    SCREW CAP M37,65
  • 24
    46811044 DUST SEAL 1424
    DUST SEAL 1424
  • 25
    36120064 O-RING NBR 29,74X3,53
    O-RING NBR 29,74X3,53
  • 26
    36120522S1 ADAPTER CPL. D=36 H=20,5
    ADAPTER CPL. D=36 H=20,5
  • 27
    36120469 SHIM 28,5X14X2
    SHIM 28,5X14X2
  • 30
    36120551 SHOCK ABSORBER CASE KGW H=38
    SHOCK ABSORBER CASE KGW H=38
  • 31
    40540037 O-RING 38X2
    O-RING 38X2
  • 32
    36120096 TUBE L=122
    TUBE L=122
  • 33
    36120019 THREADED BUSH L=70 BLACK
    THREADED BUSH L=70 BLACK
  • 41
    36120015 COUNTERNUT
    COUNTERNUT
  • 42
    36120418 ADJUSTING NUT
    ADJUSTING NUT
  • 43
    40540015 CIRCLIP38X1,5
    CIRCLIP38X1,5
  • 45
    46810893 O-RING NBR 5,28X1,78
    O-RING NBR 5,28X1,78
  • 46
    36120151 SCREW PLUG M5X6
    SCREW PLUG M5X6
  • 47
    93010168 SPRING (46,5) 45-130 D=7,75
    SPRING (46,5) 45-130 D=7,75
  • 47
    93010169 SPRING (46,5) 50-130 D=8,0
    SPRING (46,5) 50-130 D=8,0
  • 48
    36120386 SPRING RET H=3; D=14,5
    SPRING RET H=3; D=14,5
  • 50
    50180342S1 SHOCK ABSORBER FLUID 5 LT 2003
    SHOCK ABSORBER FLUID 5 LT 2003
  • 60
    36120557 REBOUND BUSH H=5,6
    REBOUND BUSH H=5,6
  • 62
    36120350 SHIM 10X21X0,30
    SHIM 10X21X0,30
  • 62
    36120298 SHIM 10X16X0,2
    SHIM 10X16X0,2
  • 62
    36120343 SHIM 10X23X0,25
    SHIM 10X23X0,25
  • 62
    36120344 SHIM 10X25X0,25
    SHIM 10X25X0,25
  • 62
    36120345 SHIM 10X27X0,25
    SHIM 10X27X0,25
  • 62
    36120338 SHIM 10X29X0,20
    SHIM 10X29X0,20
  • 62
    36120339 SHIM 10X31X0,20
    SHIM 10X31X0,20
  • 62
    36120340 SHIM 10X33X0,20
    SHIM 10X33X0,20
  • 68
    36120312 SHIM 10X16X0,30
    SHIM 10X16X0,30
  • 68
    36120334 SHIM 10X21X0,20
    SHIM 10X21X0,20
  • 68
    36120336 SHIM 10X25X0,20
    SHIM 10X25X0,20
  • 68
    36120327 SHIM 10X23X0,15
    SHIM 10X23X0,15
  • 68
    36120655 PRESSURE-RING 27X23,25X0,30
    PRESSURE-RING 27X23,25X0,30
  • 68
    36120328 SHIM 10X25X0,15
    SHIM 10X25X0,15
  • 75
    36120624 PISTON 6+6X5,5/3,5
    PISTON 6+6X5,5/3,5
  • 77
    36120040 PISTON RING 8X1X108,3
    PISTON RING 8X1X108,3
  • 80
    36120604 SHIM D10XD22X2,5
    SHIM D10XD22X2,5
  • 83
    36120605S PISTON ROD NUT CPL. H=15,2
    PISTON ROD NUT CPL. H=15,2
