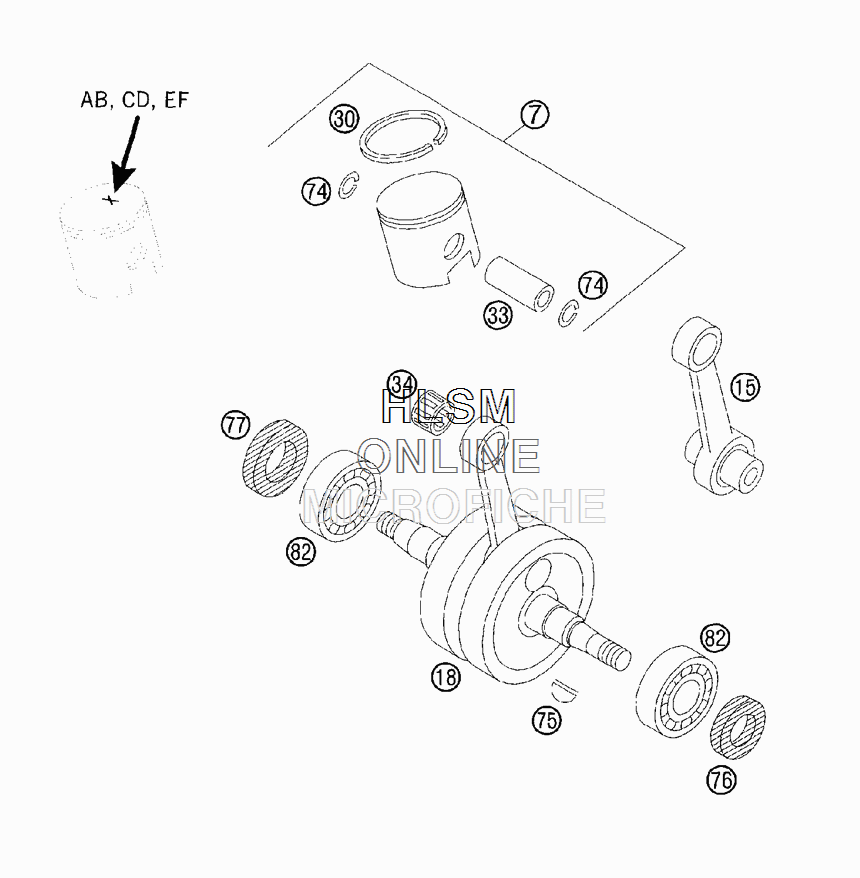

CRANKSHAFT W/ PISTON для Ktm 50 Mini Adventure - 2005 года выпуска`
-
№АртикулНазвание
-
745130007000A PISTON CPL.39,5 "AB"PISTON CPL.39,5 "AB"
-
745130007000C PISTON CPL.39,5 "CD"PISTON CPL.39,5 "CD"
-
745130007000E PISTON CPL.39,5 "EF"PISTON CPL.39,5 "EF"
-
1545130515000 CON.ROD REPAIR SETCON.ROD REPAIR SET
-
1845130518100 CRANKSHAFTCRANKSHAFT
-
3045130030000 PISTON RING 50CCMPISTON RING 50CCM
-
3345130033000 PISTON PIN 50CCMPISTON PIN 50CCM
-
3445130034000 NEEDLE BEAR.PISTONPIN 112X15X15NEEDLE BEAR.PISTONPIN 112X15X15
-
7445130074000 CIRCLIP 2001CIRCLIP 2001
-
7545130075000 WOODRUFF KEY 2,5X3,7WOODRUFF KEY 2,5X3,7
-
7645130076000 OIL SEAL RING 15X24X7OIL SEAL RING 15X24X7
-
7745130077000 OIL SEAL RING 17X35X7OIL SEAL RING 17X35X7
-
8245130082100 BALL BEARING 17X40X12BALL BEARING 17X40X12
