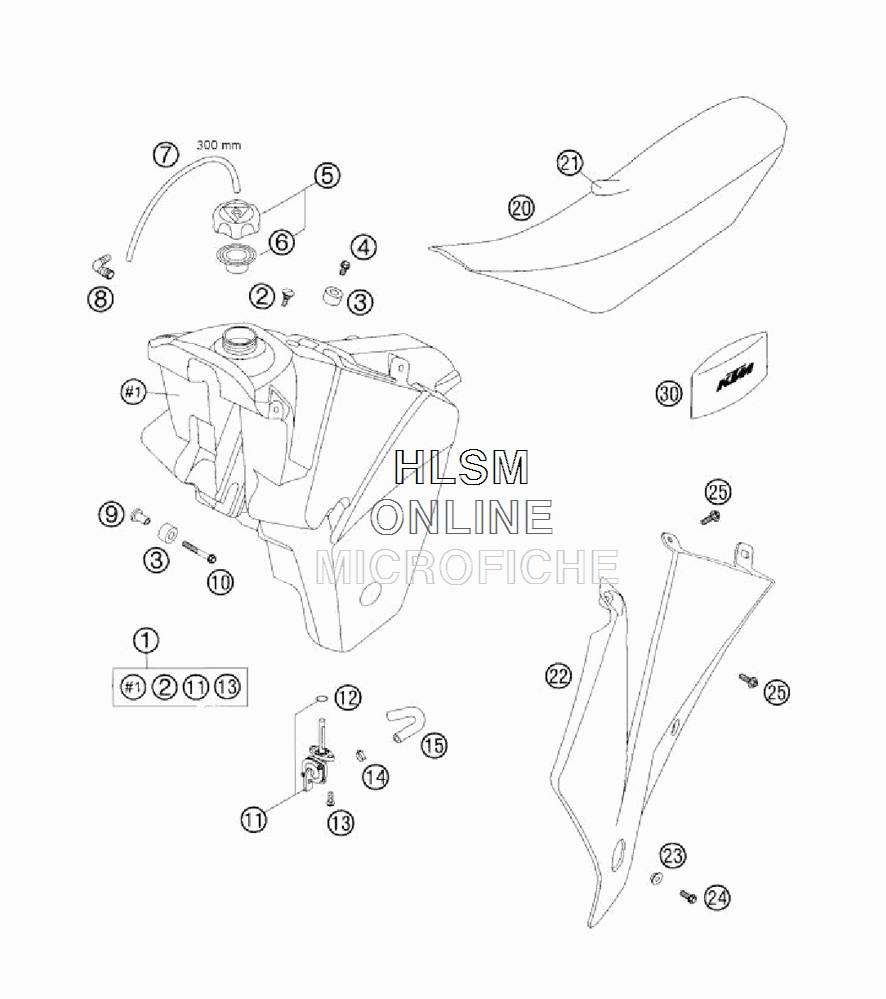

TANK - SEAT - COVER для Ktm 450 SX - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    5900711300004 FUEL TANK CPL.
    FUEL TANK CPL.
  • 2
    50307011000 SCREW SEAT FASTENING D=6X23/18
    SCREW SEAT FASTENING D=6X23/18
  • 3
    50307014000 TANK ROLLER 12X26X12
    TANK ROLLER 12X26X12
  • 4
    0015060123 HH COLLAR SCREW M6X12 WS=8
    HH COLLAR SCREW M6X12 WS=8
  • 5
    59007008044 FILLER CAP CPL. WITH VALVE
    FILLER CAP CPL. WITH VALVE
  • 6
    59007009000 GASKET FOR FILLER CAP HIGH
    GASKET FOR FILLER CAP HIGH
  • 7
    31007107001 PVC-HOSE 6X9 MM PER METRE
    PVC-HOSE 6X9 MM PER METRE
  • 8
    51030022000 ANGLE PIECE 90 DEGREE M10X1
    ANGLE PIECE 90 DEGREE M10X1
  • 9
    59003001055 SUPORT BUSHING TANKROLLER
    SUPORT BUSHING TANKROLLER
  • 10
    0015060453 HH COLLAR SCREW M6X45 WS=8
    HH COLLAR SCREW M6X45 WS=8
  • 11
    50307005000 GAS COCK MIKUNI ON/OFF
    GAS COCK MIKUNI ON/OFF
  • 12
    0770130023 O-RING 13,00X2,30
    O-RING 13,00X2,30
  • 13
    0017060203 EJOT PT SCREW K60X20 WS=6
    EJOT PT SCREW K60X20 WS=6
  • 14
    58031005000 CLAMP YDNAC 10128 12MM
    CLAMP YDNAC 10128 12MM
  • 15
    59007016000 FUEL HOSE 7,5X13MM
    FUEL HOSE 7,5X13MM
  • 20
    54807040400 SEAT BLACK WITHOUT KTM-LOGO
    SEAT BLACK WITHOUT KTM-LOGO
  • 20
    54807040300 SEAT HIGH 20MM
    SEAT HIGH 20MM
  • 21
    54807040450 SEAT COV.BLACK WITHOUT LOGO
    SEAT COV.BLACK WITHOUT LOGO
  • 22
    5480805000004 SPOILER US ORANGE
    SPOILER US ORANGE
  • 22
    5480805100004 SPOILER R/S ORANGE
    SPOILER R/S ORANGE
  • 23
    50308052000 BUSH FOR SPOILER 6X11X16X5 MM
    BUSH FOR SPOILER 6X11X16X5 MM
  • 24
    0015060203 HH COLLAR SCREW M6X20 WS=8
    HH COLLAR SCREW M6X20 WS=8
  • 25
    0017060204 EJOT PT SCREW K60X20 ALU WS=6
    EJOT PT SCREW K60X20 ALU WS=6
  • 30
    59029099000 TOOL SET
    TOOL SET
