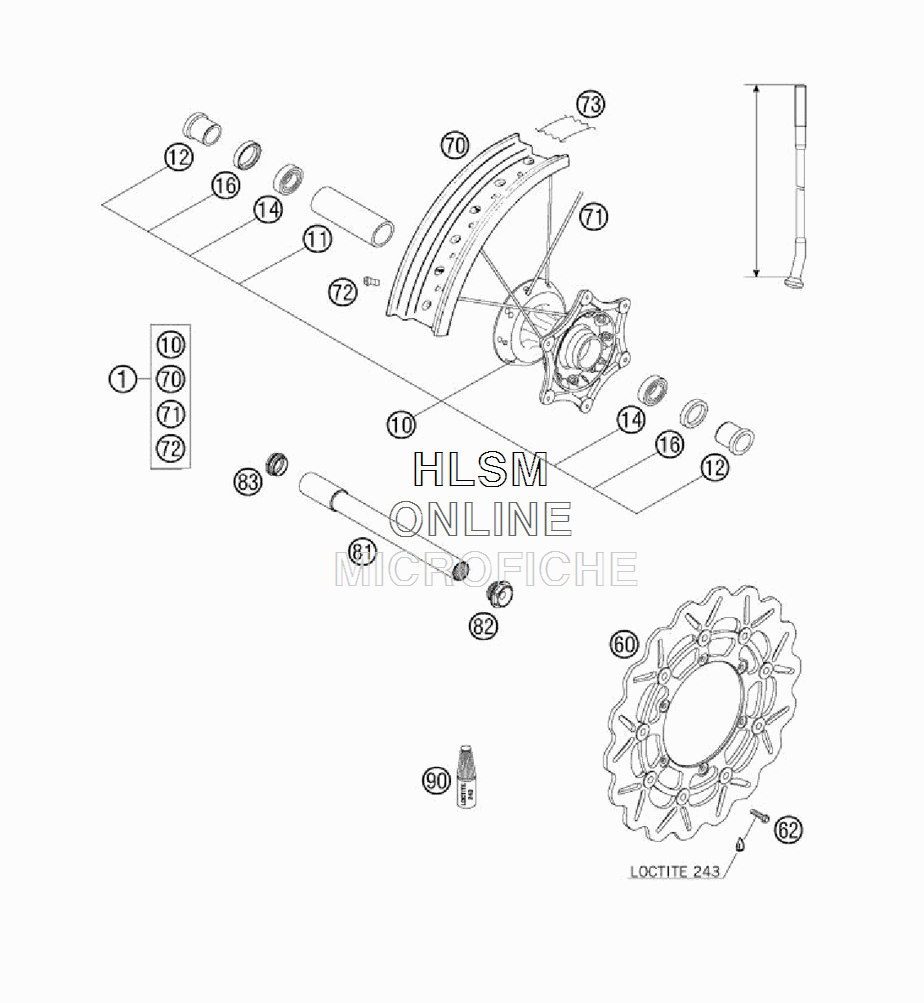

FRONT WHEEL 17'' для Ktm 450 SMR - 2005 года выпуска`
-
№АртикулНазвание
-
158409001644 FRONT WHEEL SP 3,5X17" POL.FRONT WHEEL SP 3,5X17" POL.
-
105480901004491 FRONT HUB CPL. SX SILVERFRONT HUB CPL. SX SILVER
-
1154809011000 BEA.SPACERTUBE 35X2 L=79,4BEA.SPACERTUBE 35X2 L=79,4
-
1254809012000 SPACER BUSHING F. FR. WHEELSPACER BUSHING F. FR. WHEEL
-
140625069068 GR.BALL BEAR.6906 DDU2CG23S6NMGR.BALL BEAR.6906 DDU2CG23S6NM
-
160760354771 SHAFT SEAL RING 35X47X7 TCSHAFT SEAL RING 35X47X7 TC
-
6058609060000 BRAKE DISC FRONTBRAKE DISC FRONT
-
6259009062016 SPECIAL SCREW M6X16 WS=8 10.9SPECIAL SCREW M6X16 WS=8 10.9
-
7058409070000 RIM FRONT 3,5X17" POLISHEDRIM FRONT 3,5X17" POLISHED
-
7150309071175 SPOKE M4,5X175-15G 17" DDESPOKE M4,5X175-15G 17" DDE
-
7250309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
7358309073000 RIM BAND 17"RIM BAND 17"
-
8154809081000 WHEEL SPIN.FR. D=26 M24X1,5WHEEL SPIN.FR. D=26 M24X1,5
-
8254809082000 SPINDLE SCREW M24X1,5 WS=27SPINDLE SCREW M24X1,5 WS=27
-
8354809081050 PLUG BUSHING WS=27PLUG BUSHING WS=27
-
906899785 LOCTITE 243 BLUE 6CCMLOCTITE 243 BLUE 6CCM
