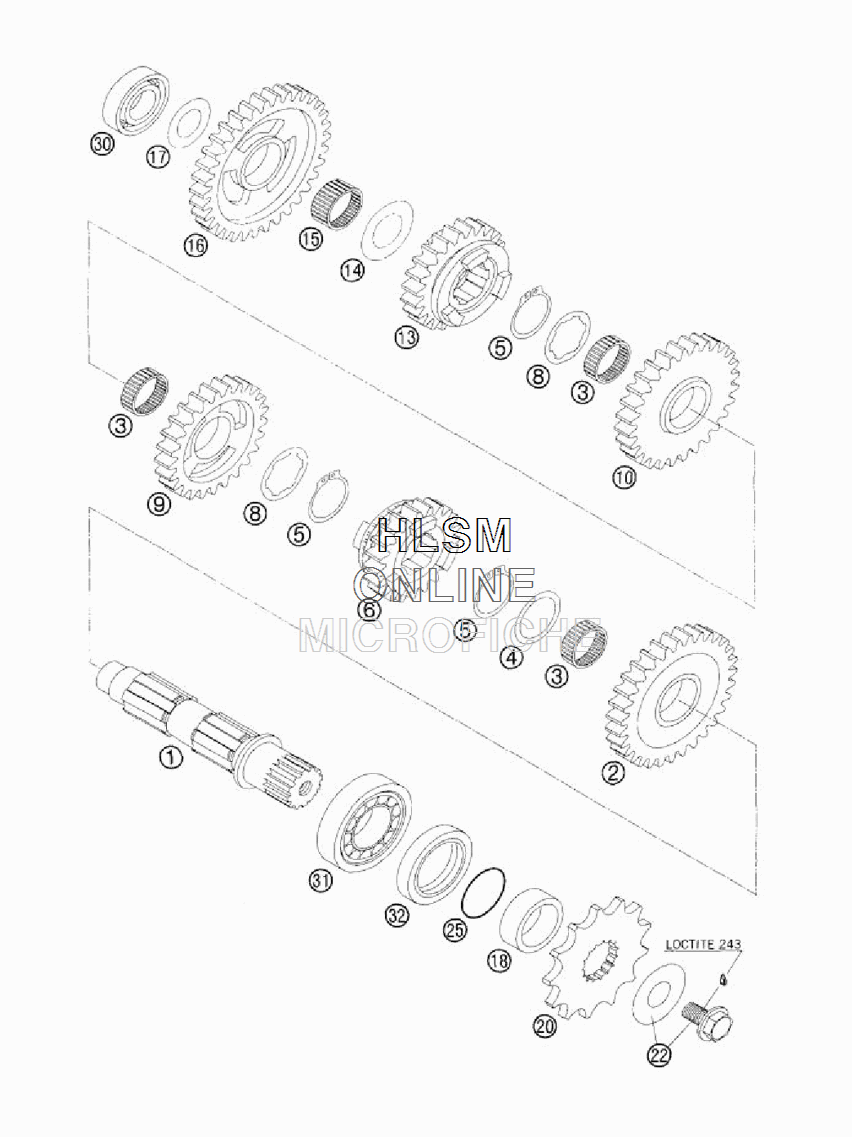

TRANSMISSION - COUNTER SHAFT (EU) для Ktm 450 MXC RFS - 2005 года выпуска`
-
№АртикулНазвание
-
159033010000 MAIN SHAFT RACINGMAIN SHAFT RACING
-
259033012025 IDLER GEAR 2.G 31-T "25"IDLER GEAR 2.G 31-T "25"
-
30405222611 NEEDLE BEAR.K 22X26X10 DIVIDEDNEEDLE BEAR.K 22X26X10 DIVIDED
-
459033031000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
50471250120 CIRCLIPDIN0471-25X1,2CIRCLIPDIN0471-25X1,2
-
659033016026 SLIDING GEAR 6.G 21-T"26"SLIDING GEAR 6.G 21-T"26"
-
859033030000 STOP DISC 25,2X32X1,5STOP DISC 25,2X32X1,5
-
959033014033 IDLER GEAR 4.G 26-T "33"IDLER GEAR 4.G 26-T "33"
-
1059033013028 IDLER GEAR 3.G 28-T "28"IDLER GEAR 3.G 28-T "28"
-
1359033015029 SLIDING GEAR 5.G 23-T "29"SLIDING GEAR 5.G 23-T "29"
-
1459033080000 SHIM 20X32X1SHIM 20X32X1
-
150405202612 NEEDLE SEARING K 2OX26X12NEEDLE SEARING K 2OX26X12
-
1659033011030 IDLER GEAR 1.G 34-T "30"IDLER GEAR 1.G 34-T "30"
-
1756033030000 STOP DISC 17,2X30X1STOP DISC 17,2X30X1
-
1854633014100 SPACER BUSHING 12MMSPACER BUSHING 12MM
-
2050033029013 SPROCKET 13-TSPROCKET 13-T
-
2050033029014 SPROCKET 14-TSPROCKET 14-T
-
2050033029015 SPROCKET 15-TSPROCKET 15-T
-
2259033034044 SCREW+SPRING WASHERSCREW+SPRING WASHER
-
250770020220 O-RING 25,12X1,78NBR70O-RING 25,12X1,78NBR70
-
300625062035 BALL BEARING 6203 JR2 C3BALL BEARING 6203 JR2 C3
-
3149030023000 CVL.ROLL BEARING NJ205CVL.ROLL BEARING NJ205
-
320760324571 SHAFT SEAL RING 32X45X7 BSLNBRSHAFT SEAL RING 32X45X7 BSLNBR
