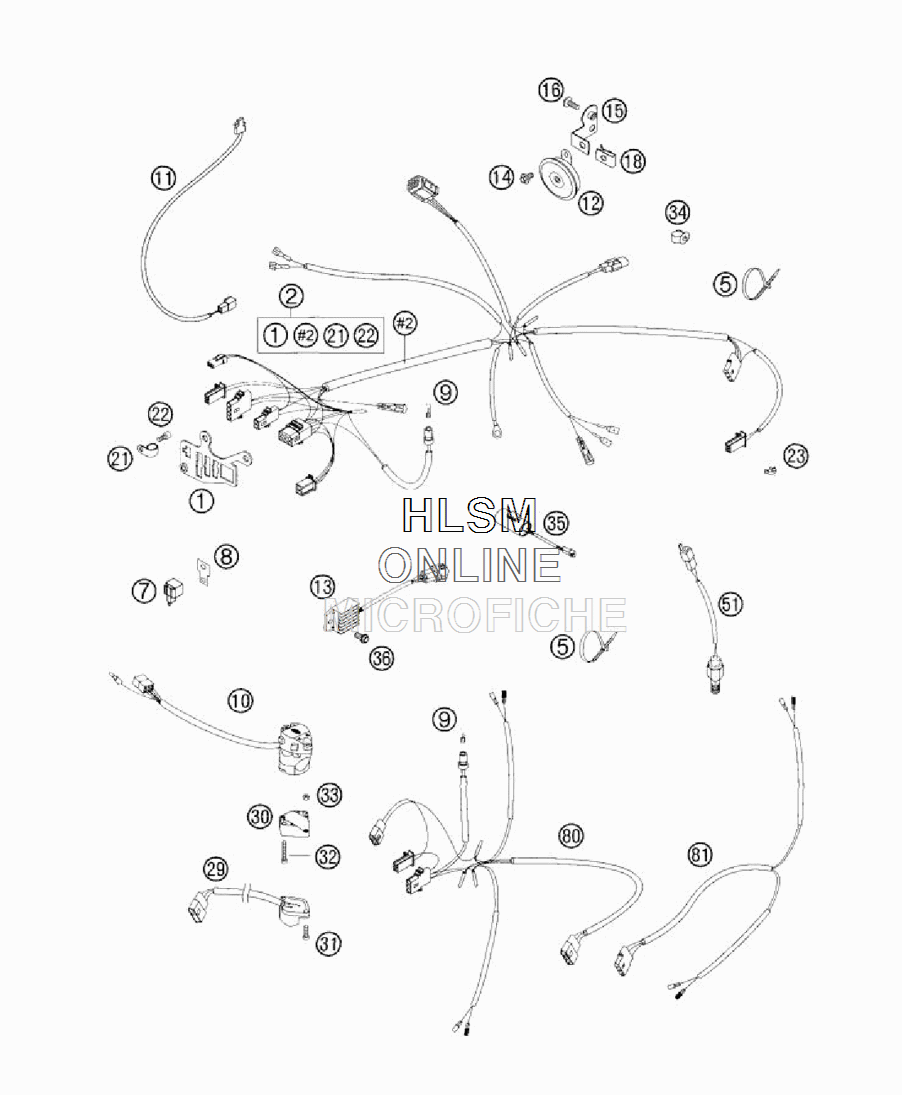

WIRING HARNESS (EU/AUS) для Ktm 300 EXC - 2005 года выпуска`
-
№АртикулНазвание
-
154811083100 SUPPORT BRACKETSUPPORT BRACKET
-
254811075200 WIRING HARNESSWIRING HARNESS
-
544011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
544011076305 CABLE TIE 30074,8MM BLACKCABLE TIE 30074,8MM BLACK
-
744611207200 FLASHER UNIT 97FLASHER UNIT 97
-
858211031100 BRACKET FOR FLASHER RELAYSBRACKET FOR FLASHER RELAYS
-
949111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
1050311070000 H.LIGHT SWITCH CEV 2/4TAKT (SYMBOLS WHITE)H.LIGHT SWITCH CEV 2/4TAKT (SYMBOLS WHITE)
-
1150311050100 FRONT BRAKE LIGHT SWITCHFRONT BRAKE LIGHT SWITCH
-
1250311060000 DC HORN 12V K80/L LEBDC HORN 12V K80/L LEB
-
1380011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
140014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
1559011061000 BRACKETBRACKET
-
160014060153 HH COLLAR SCREW M6X15 WS=8HH COLLAR SCREW M6X15 WS=8
-
1854603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
2157013070000 PVC-CLAMP 7/16 HEYCO 3377PVC-CLAMP 7/16 HEYCO 3377
-
220912050083 AH SCREW DIN 912 M 5X8AH SCREW DIN 912 M 5X8
-
2357013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
-
2357013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
2950311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
3013011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
310985040203 FLAT HEAD SCREW DIN7985-M4X20FLAT HEAD SCREW DIN7985-M4X20
-
320084040223 CYL.HEAD SCREW DIN0084-M4X22ACYL.HEAD SCREW DIN0084-M4X22A
-
330934040003 HEXAGON NUT DIN0934-M4HEXAGON NUT DIN0934-M4
-
3458111076000 CABLE SUPPORT KHS NR.150-47610CABLE SUPPORT KHS NR.150-47610
-
3550311035000 CONDENSATOR 2200MF ADP-48CONDENSATOR 2200MF ADP-48
-
360015060123 HH COLLAR SCREW M6X12 WS=8HH COLLAR SCREW M6X12 WS=8
-
5150311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
8059011080000 FLASH.WIRING HARNESS FRONTFLASH.WIRING HARNESS FRONT
-
8159011081000 FLASH.WIRING HARNESS REARFLASH.WIRING HARNESS REAR
