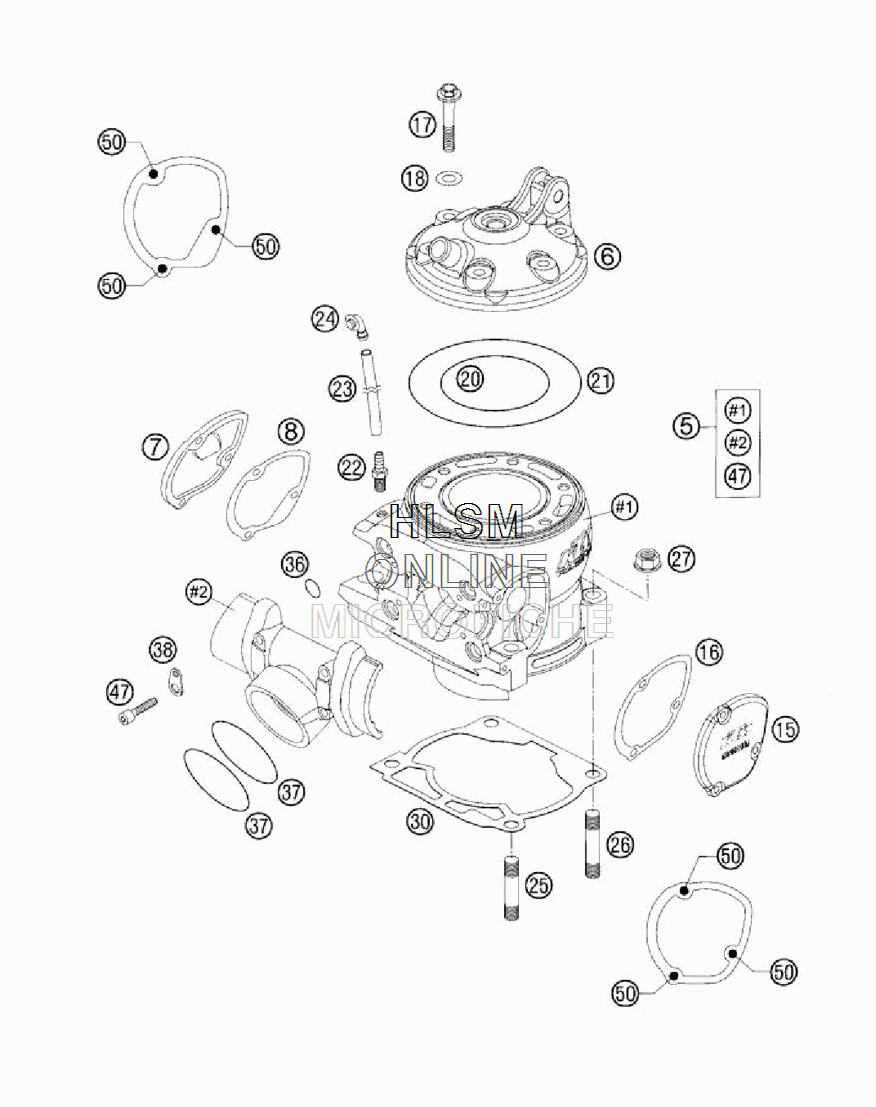

CYLINDER W/ CYLINDER HEAD для Ktm 300 EXC SIXDAYS - 2005 года выпуска
-
№АртикулНазвание
-
554830305044 CYLINDER CPL. W. FLANGECYLINDER CPL. W. FLANGE
-
654830306000 CYLINDER HEAD "3003"CYLINDER HEAD "3003"
-
75473700700098 CONTROL COVER R/SCONTROL COVER R/S
-
854737008000 GASKET FOR CONTROL COVER R/SGASKET FOR CONTROL COVER R/S
-
155473700500098 CONTROL COVER USCONTROL COVER US
-
1654737006000 GASKET FOR CONTROL COVER USGASKET FOR CONTROL COVER US
-
1754830079000 COLLAR SCREW M 8X35 WS=13COLLAR SCREW M 8X35 WS=13
-
1856530080000 CU-SEAL RING 8X 16 X ICU-SEAL RING 8X 16 X I
-
200770800021 O-RING 80,00X2,00 VITONO-RING 80,00X2,00 VITON
-
210770114020 O-RING 114,00X2,00 SILICONEO-RING 114,00X2,00 SILICONE
-
2258336020090 VACUUM CONNECTION M 6X1VACUUM CONNECTION M 6X1
-
2331007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
2450303089000 ANGEL PIECEANGEL PIECE
-
250835100351 STUD DIN0835-M10X35STUD DIN0835-M10X35
-
260835100403 STUD DIN0835-M10X40STUD DIN0835-M10X40
-
2754630044000 COLLAR NUT M10 WS=13COLLAR NUT M10 WS=13
-
3054830030002 GASKET CYLINDER BASE 0,2MMGASKET CYLINDER BASE 0,2MM
-
3054830030004 GASKET CYLINDER BASE 0,4MMGASKET CYLINDER BASE 0,4MM
-
3054830030005 GASKET CYLINDER BASE 0,5MMGASKET CYLINDER BASE 0,5MM
-
3054830030075 GASKET CYLINDER BASE 0,75MMGASKET CYLINDER BASE 0,75MM
-
360770116241 O-RING 11,3 X2,4 SILICONO-RING 11,3 X2,4 SILICON
-
370770440030 O-RING 44,00X3,00 VITONO-RING 44,00X3,00 VITON
-
3851005074000 RETAINING PLATERETAINING PLATE
-
470912060303 AH SCREW DIN0912-M 6X30AH SCREW DIN0912-M 6X30
-
500014050123 HH COLLAR SCREW M 5X12 WS=6HH COLLAR SCREW M 5X12 WS=6
