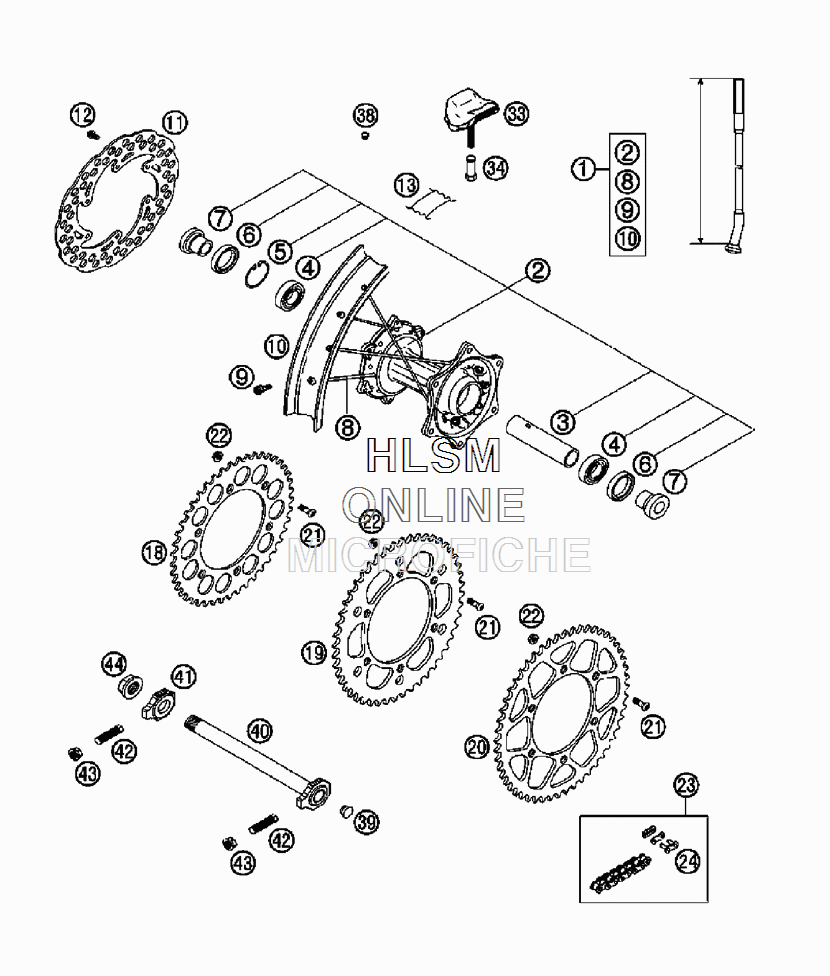

REAR WHEEL для Ktm 250 SXF - 2005 года выпуска`
-
№АртикулНазвание
-
15481000184430 REAR W. CPL. 2,15X19REAR W. CPL. 2,15X19
-
25481001004491 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
359010011000 BUSHING SPACER TUBE 121,5MMBUSHING SPACER TUBE 121,5MM
-
40625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
754610016000 BUSHING FOR HUBBUSHING FOR HUB
-
850310072207 SPOKE M5X207-10G 19" DDESPOKE M5X207-10G 19" DDE
-
958309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
105461007010030 RIM 2,15X19"EXCEL AL4 BLACKRIM 2,15X19"EXCEL AL4 BLACK
-
1154810060000 BRAKE DISC REAR D=220MMBRAKE DISC REAR D=220MM
-
1259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
1350310073200 RIM BAND 18" AND 19"RIM BAND 18" AND 19"
-
1858310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1858310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1858310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1858310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
1958310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
1958310151049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151051 REAR SPROCKET 51-TREAR SPROCKET 51-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2350310165118 CHAIN 5/8X1/4" + MASTER LINKCHAIN 5/8X1/4" + MASTER LINK
-
2450310166000 CONNECTING LINKCONNECTING LINK
-
3354010100100 RIM LOCK VM3 (2.15")RIM LOCK VM3 (2.15")
-
3450310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4050310085044 WHEEL SPINDLE RE. CPL.265MMWHEEL SPINDLE RE. CPL.265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040100 SCREW M10X1,25X50 WS=10SCREW M10X1,25X50 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
Все узлы модели:
- AIR FILTER BOX
- BRAKE CALIPER FRONT
- BRAKE CALIPER REAR
- CARBURETOR
- CLUTCH
- COOLING SYSTEM
- CRANKSHAFT W/ PISTON
- CYLINDER
- CYLINDER HEAD
- DECAL
- ENGINE CASE
- EXHAUST SILENCER
- FORK LEGS
- FRAME W/ SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HAND BRAKE CYLINDER
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM 4K3A
- KICKSTARTER
- LUBRICATING SYSTEM
- MANIFOLD
- MASK W/ FENDERS
- MONOSHOCK
- MONOSHOCK - DISASSEMBLED
- REAR BRAKE CONTROL
- • REAR WHEEL
- SHIFTING MECHANISM
- SPECIAL TOOLS
- SWINGARM
- TANK - SEAT - COVER
- TIMING VALVE
- TRANSMISSION - COUNTERSHAFT
- TRANSMISSION - MAIN SHAFT
- VALVE DRIVE
