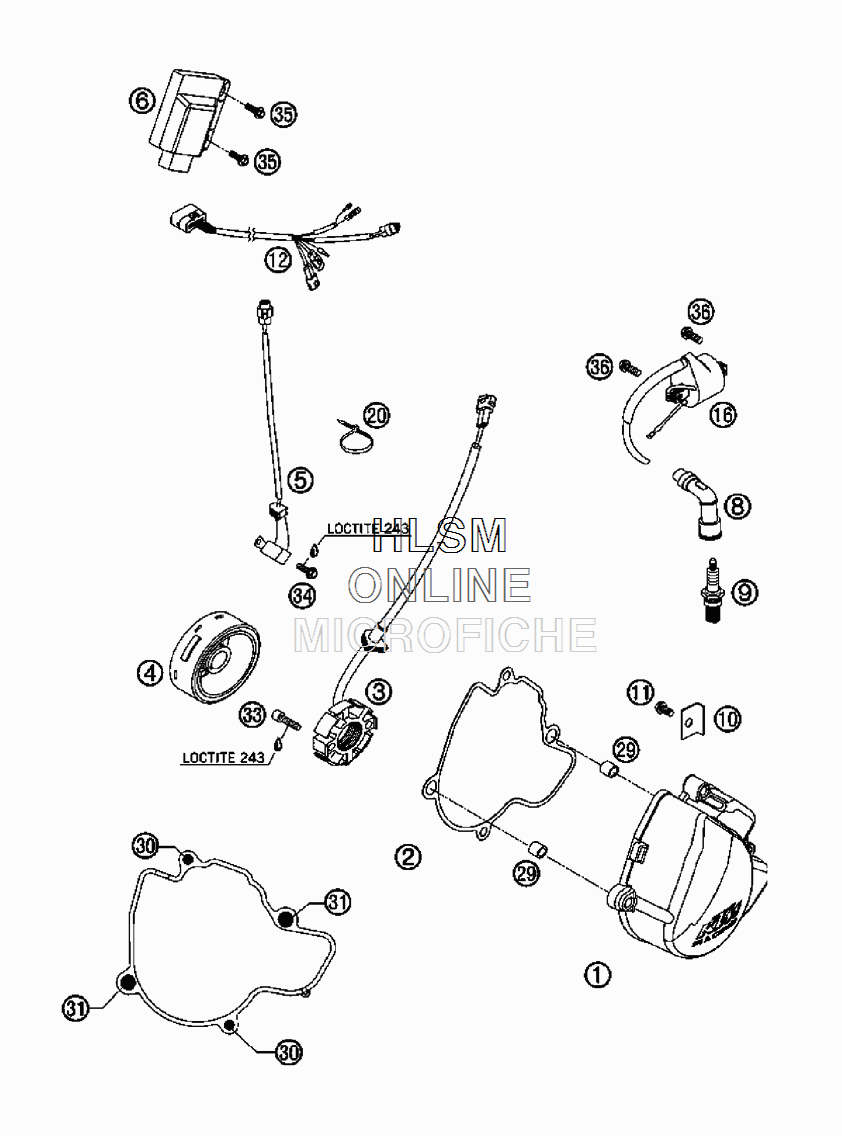

IGNITION SYSTEM 4K3A для Ktm 250 SXF - 2005 года выпуска`
-
№АртикулНазвание
-
177030002000 IGNITION COVERIGNITION COVER
-
277030040000 IGNITION COVER GASKETIGNITION COVER GASKET
-
377039004000 STATOR 4K3-ASTATOR 4K3-A
-
477039005000 FLYWHEELFLYWHEEL
-
559039034000 PULSER COIL KOKUSAN 4K3-A/BPULSER COIL KOKUSAN 4K3-A/B
-
677039031100 CDI UNIT 250 SX/4TCDI UNIT 250 SX/4T
-
859039090100 SPARK PLUG CONNECT. VD05EGSPARK PLUG CONNECT. VD05EG
-
977039093000 SPARK PLUG NGK CR9EKBSPARK PLUG NGK CR9EKB
-
1077030002050 WIRE RETAINING BRACKETWIRE RETAINING BRACKET
-
110015060083 HH COLLAR SCREW M 6X8 WS=8HH COLLAR SCREW M 6X8 WS=8
-
1259439032100 WIRING HARNESS FOR CDIEXCWIRING HARNESS FOR CDIEXC
-
1659039006000 IGNITIONCOIL KOKUSAN 4K3-A/BIGNITIONCOIL KOKUSAN 4K3-A/B
-
2044011076100 CABLE TIE 100/2,5MM BLACKCABLE TIE 100/2,5MM BLACK
-
2949030090000 DOWEL 9,8 X 7 X 10DOWEL 9,8 X 7 X 10
-
300015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
310015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
330912050253 AH SCREW DIN0912-M 5X25AH SCREW DIN0912-M 5X25
-
340015050163 HH COLLAR SCREW M 5X16 WS=8HH COLLAR SCREW M 5X16 WS=8
-
350014060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
360015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
