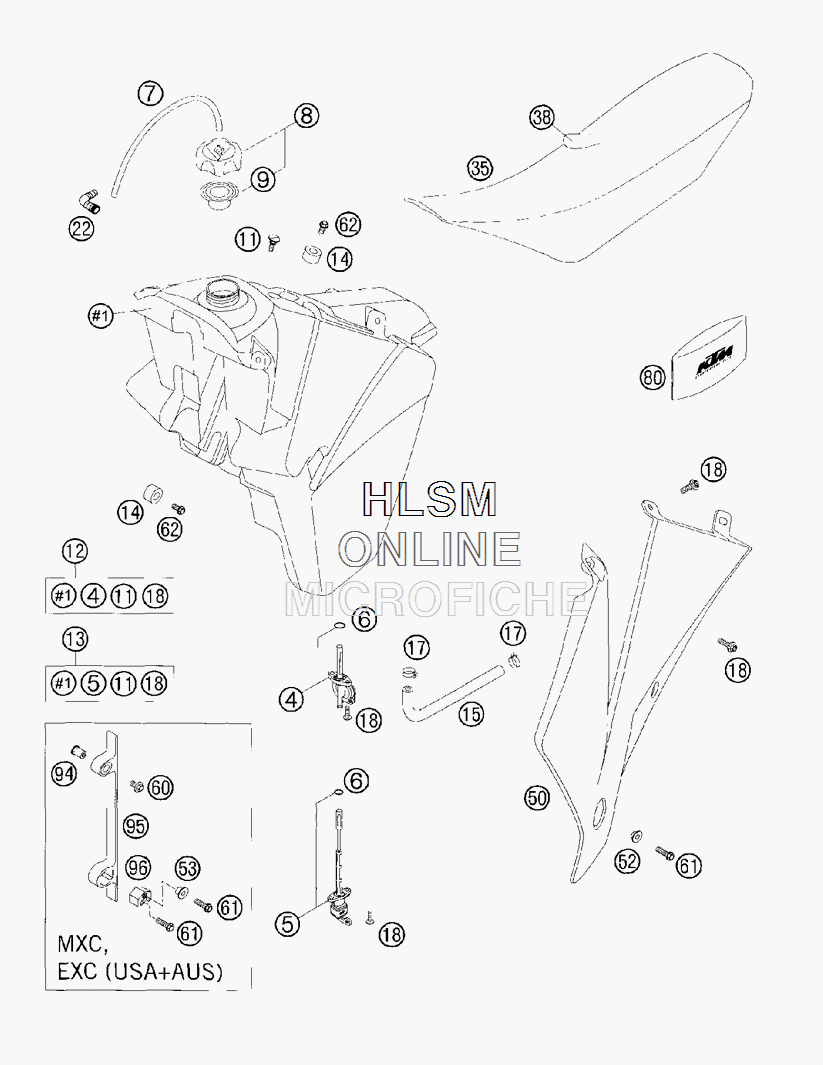

TANK - SEAT - COVER для Ktm 250 SX - 2005 года выпуска`
-
№АртикулНазвание
-
450307005000 GSAS COCK MIKUNI ON/OFFGSAS COCK MIKUNI ON/OFF
-
60770130023 O-RING 13,00X2,30O-RING 13,00X2,30
-
731007107001 PVC-HOSE 6X9 MM PER METREPVC-HOSE 6X9 MM PER METRE
-
859007008044 FILLER CAP CPL. WITH VALVEFILLER CAP CPL. WITH VALVE
-
959007009000 GASKET FOR FILLER CAP HIGHGASKET FOR FILLER CAP HIGH
-
1150307011000 SCREW SEAT FASTENING D=6X23/18SCREW SEAT FASTENING D=6X23/18
-
125030711300004 FUEL TANK CPL. 7,5L ORANGEFUEL TANK CPL. 7,5L ORANGE
-
1450307014000 TANK ROLLER12X26X12TANK ROLLER12X26X12
-
1550307016000 FUEL PREFORMED HOSEFUEL PREFORMED HOSE
-
1758031005000 CLAMP YDNAC 10128 12MMCLAMP YDNAC 10128 12MM
-
180017060204 EJOT PT SCREW K60X20 ALU WS=6EJOT PT SCREW K60X20 ALU WS=6
-
2251030022000 ANGLE PIECE 90 DEGREE M10X1ANGLE PIECE 90 DEGREE M10X1
-
3554807040400 SEAT BLACK WITHOUT KTM-LOGOSEAT BLACK WITHOUT KTM-LOGO
-
3854807040450 SEAT COV.BLACK WITHOUT LOGOSEAT COV.BLACK WITHOUT LOGO
-
505480805000004 SPOILER US ORANGESPOILER US ORANGE
-
505480805100004 SPOILER R/S ORANGESPOILER R/S ORANGE
-
5250308052000 BUSH FOR SPOILER 6X11X16X5 MMBUSH FOR SPOILER 6X11X16X5 MM
-
5350308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
600014060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
610015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
620015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
8050212100100 TOOL SET 125-380 ORANGETOOL SET 125-380 ORANGE
-
9455003139600 BLIND RIVET NUT M6X15,5 STEELBLIND RIVET NUT M6X15,5 STEEL
-
9550335095000 SPOILER ADAPTERSPOILER ADAPTER
-
9650335096000 TANK ADAPTER BUSHTANK ADAPTER BUSH
