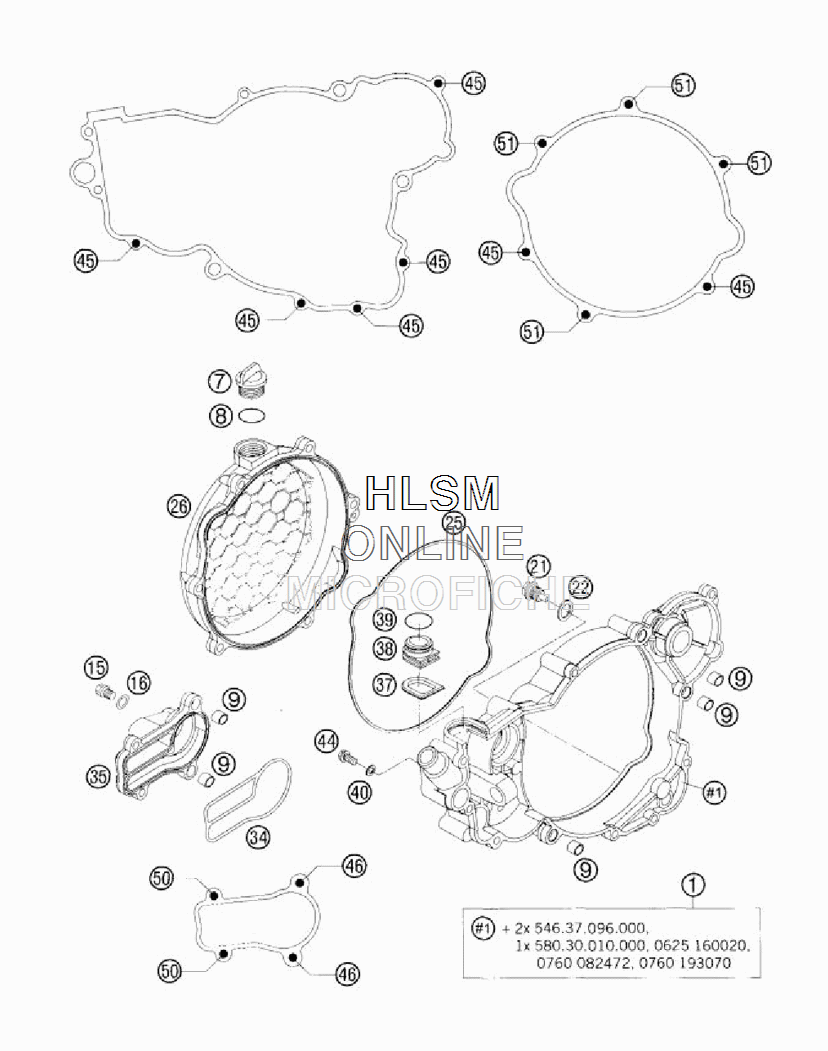

CLUTCH COVER для Ktm 250 EXC - 2005 года выпуска

  • №
    Артикул
    Название
  • 1
    54830001044 INTERM. CLUTCH COVER CPL.
    INTERM. CLUTCH COVER CPL.
  • 7
    58030020000 PLUG M 24X3
    PLUG M 24X3
  • 8
    0770191015 O-RING 19,00X3,00 NBR
    O-RING 19,00X3,00 NBR
  • 9
    49030090000 DOWEL 9,8 X 7 X 10
    DOWEL 9,8 X 7 X 10
  • 15
    0910100003 PLUG DIN0910-M 10X1
    PLUG DIN0910-M 10X1
  • 16
    0603100141 COPPER GASKET DIN7603-10X1 4X1
    COPPER GASKET DIN7603-10X1 4X1
  • 21
    58030021000 OIL DRAIN PLUG W.MAG. M 12X1,5
    OIL DRAIN PLUG W.MAG. M 12X1,5
  • 22
    58038022000 CU-SEAL RING DIN7603-12X18X1,5
    CU-SEAL RING DIN7603-12X18X1,5
  • 25
    54830025000 GASKET E CLU.COVER
    GASKET E CLU.COVER
  • 26
    5483002600098 CLUTCH COVER OUTSIDE
    CLUTCH COVER OUTSIDE
  • 34
    54835003000 GASKET WAPU-COVER
    GASKET WAPU-COVER
  • 35
    54835001000 WATERPUMP COVER
    WATERPUMP COVER
  • 37
    54637107000 SEALING ELEMENT BOTTOM
    SEALING ELEMENT BOTTOM
  • 38
    54837091000 SEALING CARRIER
    SEALING CARRIER
  • 39
    0770021160 O-RING 18,72X2,62
    O-RING 18,72X2,62
  • 40
    0603061001 CU-SEAL RING DIN7603-6X10X1
    CU-SEAL RING DIN7603-6X10X1
  • 44
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 45
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 46
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 50
    0015060553 HH COLLAR SCREW M 6X55 WS=8
    HH COLLAR SCREW M 6X55 WS=8
  • 51
    0015060603 HH COLLAR SCREW M 6X60 WS=8
    HH COLLAR SCREW M 6X60 WS=8
