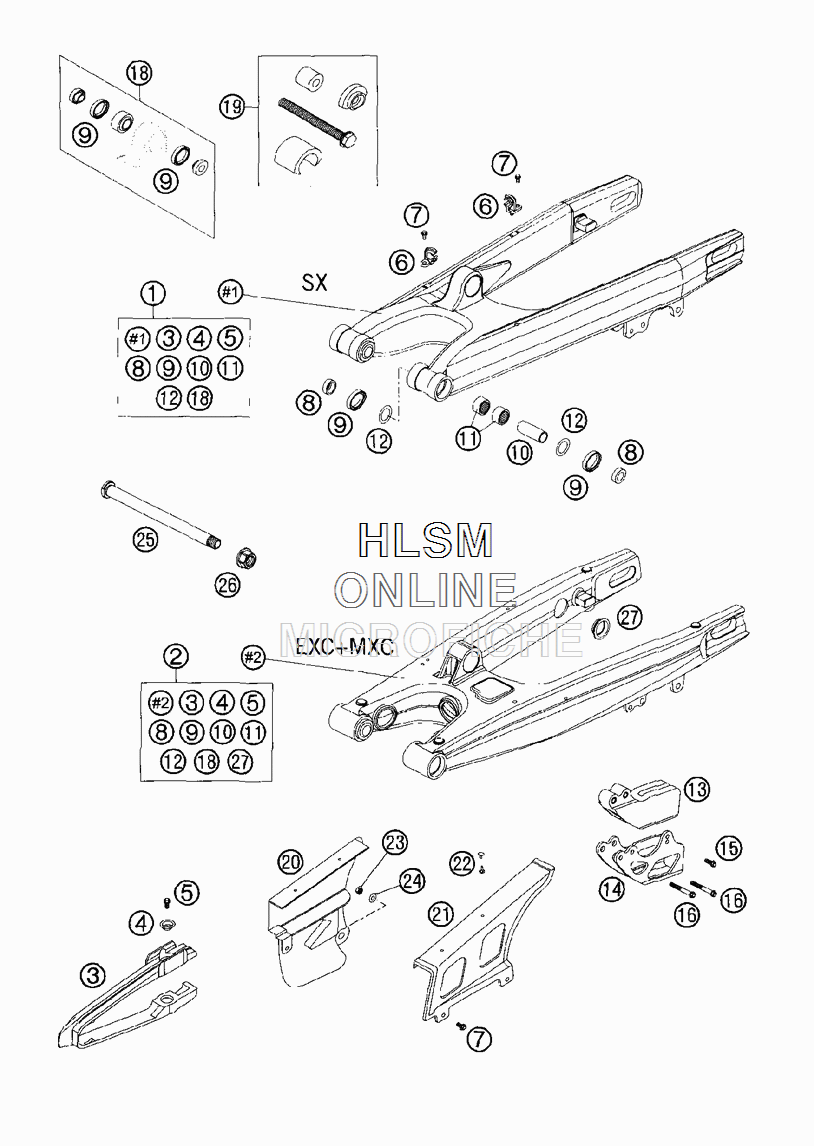

SWINGARM W/ CHAIN GUARD для Ktm 250 EXC SIXDAYS - 2005 года выпуска`
-
№АртикулНазвание
-
254804230244 SWINGARM CPL.SWINGARM CPL.
-
350304066100 CHAIN GUARDCHAIN GUARD
-
472210079000 BUCKETBUCKET
-
50015060103 HH COLLAR SCREW M 6X10 WS=8HH COLLAR SCREW M 6X10 WS=8
-
654611076100 RETAIN.CLAMP FOR BRAKE HOSERETAIN.CLAMP FOR BRAKE HOSE
-
70009050103 SPECIAL SCREW M5,0X10SPECIAL SCREW M5,0X10
-
854804034000 BUCKET F. SHAFT SEAL RINGBUCKET F. SHAFT SEAL RING
-
90760253270 SHAFT SEAL RING 25X32X7SHAFT SEAL RING 25X32X7
-
1054804032000 BUSHING SLEEVE F. SWING ARMBUSHING SLEEVE F. SWING ARM
-
1158033097000 NEEDLE BEARING HK 2216NEEDLE BEARING HK 2216
-
1254603036000 STOP DISK 22,2X31,7X1STOP DISK 22,2X31,7X1
-
1354607066100 CHAIN GUIDE REAR '94CHAIN GUIDE REAR '94
-
1454607070144 RETAINING PLATE CPL.RETAINING PLATE CPL.
-
150015060163 HH COLLAR SCREW M6X16 WS=8HH COLLAR SCREW M6X16 WS=8
-
160015060503 HH COLLAR SCREW M6X50 WS=8HH COLLAR SCREW M6X50 WS=8
-
1850304090044 PIVOT BEARING+BUSHES PDSPIVOT BEARING+BUSHES PDS
-
1950329000044 TOOL BEARING MOUNTING PDSTOOL BEARING MOUNTING PDS
-
2050304060100 CHAIN GUARD SMALLCHAIN GUARD SMALL
-
2154607460000 CHAIN GUARD LARGECHAIN GUARD LARGE
-
2220012062055 HOLLOW RIVET TWO PARTSHOLLOW RIVET TWO PARTS
-
230985060003 SELF LOCK NUT DIN0985-M 6SELF LOCK NUT DIN0985-M 6
-
240021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
2554804037000 SWINGARM BOLT M16X1,5SWINGARM BOLT M16X1,5
-
2654804038000 SELF LOCK NUT M16X1.5 WS=1903SELF LOCK NUT M16X1.5 WS=1903
-
2758404041100 CLOSING COVER ROUNDCLOSING COVER ROUND
