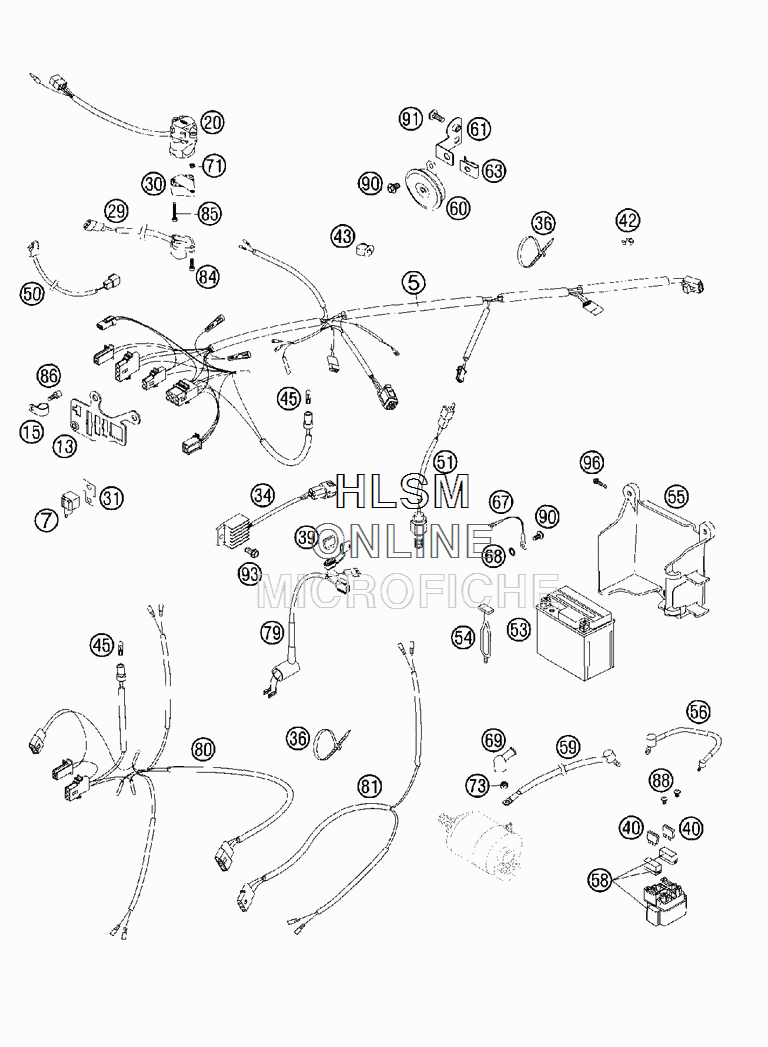

WIRING HARNESS (EU/AUS) для Ktm 250 EXC RACING - 2005 года выпуска`
-
№АртикулНазвание
-
559411075000 WIRING HAR.WIRING HAR.
-
744611207200 FLASHER UNITFLASHER UNIT
-
1354811083100 SUPPORT BRACKETSUPPORT BRACKET
-
1557013070100 PVC-CLAMP 7,9 MM HEYCOPVC-CLAMP 7,9 MM HEYCO
-
2050311070000 H.LIGHT SWITCH CEV 2/4TAKTH.LIGHT SWITCH CEV 2/4TAKT
-
2950311029000 FLASHER SWITCH CEVFLASHER SWITCH CEV
-
3013011070060 ADAPTER FOR FLASHER SWITCHADAPTER FOR FLASHER SWITCH
-
3158211031100 BRACKET FOR FLASHER RELAISEBRACKET FOR FLASHER RELAISE
-
3480011034000 VOLTAGE REGULATORVOLTAGE REGULATOR
-
3644011076200 CABLE TIE 200/3,6MM BLACKCABLE TIE 200/3,6MM BLACK
-
3644011076305 CABLE TIE 300/4,8MM BLACKCABLE TIE 300/4,8MM BLACK
-
3958011109005 FUSE 5AFUSE 5A
-
4058011109110 FUSE 10 AFUSE 10 A
-
4257013072000 WIRING HOLDER 12MMWIRING HOLDER 12MM
-
4257013072100 WIRING HOLDER 16MMWIRING HOLDER 16MM
-
4358111076000 CABLE SUPPORT KHS NR:150-47610CABLE SUPPORT KHS NR:150-47610
-
4549111425000 BULB 12V 1,2W (W2X4,6D)BULB 12V 1,2W (W2X4,6D)
-
5050311050100 FRONT BRAKE LIGHT SWITCH 2002FRONT BRAKE LIGHT SWITCH 2002
-
5150311051100 BRAKE LIGHT SWITCH REAR 'BRAKE LIGHT SWITCH REAR '
-
5358511053000 BATTERY 12V 4AH YTX5L-BSBATTERY 12V 4AH YTX5L-BS
-
5450303018000 RUBBER FOR CENTER STANDRUBBER FOR CENTER STAND
-
5559011055100 BATTERY CARRIER PLASTBLACKBATTERY CARRIER PLASTBLACK
-
5658711086000 WIRING HARNESS BATTERY DUKEWIRING HARNESS BATTERY DUKE
-
5858211058000 STARTER RELAY 12VSTARTER RELAY 12V
-
5958411059100 STARTERCABLE 700 MMSTARTERCABLE 700 MM
-
6050311060000 DC HORN 12V K80/L LEBDC HORN 12V K80/L LEB
-
6159011061000 BRACKETBRACKET
-
6354603048100 RANGE CHANGE METAL NUT M6RANGE CHANGE METAL NUT M6
-
6758411097100 GROUND CABLE D=6MM L=140MMGROUND CABLE D=6MM L=140MM
-
6858411098100 CONTACT WASHER M6 VSV-K6CONTACT WASHER M6 VSV-K6
-
6958440099000 PROTECTION CAP F STARTER ENG.PROTECTION CAP F STARTER ENG.
-
710934040003 HEXAGON NUT DIN0934-M 4HEXAGON NUT DIN0934-M 4
-
730985060003 SELF LOCK. NUT DIN0985-M 6SELF LOCK. NUT DIN0985-M 6
-
7959011079000 FAN WIRING HARNESSFAN WIRING HARNESS
-
8059011080000 FLASH. WIRINGHARNESS FRONTFLASH. WIRINGHARNESS FRONT
-
8159011081000 FLASH. WIRINGHARNESS REARFLASH. WIRINGHARNESS REAR
-
840985040163 FLAT HEAD SCREW DIN7985-M4X16FLAT HEAD SCREW DIN7985-M4X16
-
850084040223 CYL.HEAD SCREW DIN0084-M4X22ACYL.HEAD SCREW DIN0084-M4X22A
-
860912050083 AH SCREW DIN 912 M5X8AH SCREW DIN 912 M5X8
-
880902060083 AH OVAL SCREW ISO 7380 M6X8AH OVAL SCREW ISO 7380 M6X8
-
900014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
910014060153 HH COLLAR SCREW M6X15 WS=8HH COLLAR SCREW M6X15 WS=8
-
930015060123 HH COLLAR SCREW M6X12 WS=8HH COLLAR SCREW M6X12 WS=8
-
960017060203 EJOT PT SCREW K60X20 WS=6EJOT PT SCREW K60X20 WS=6
