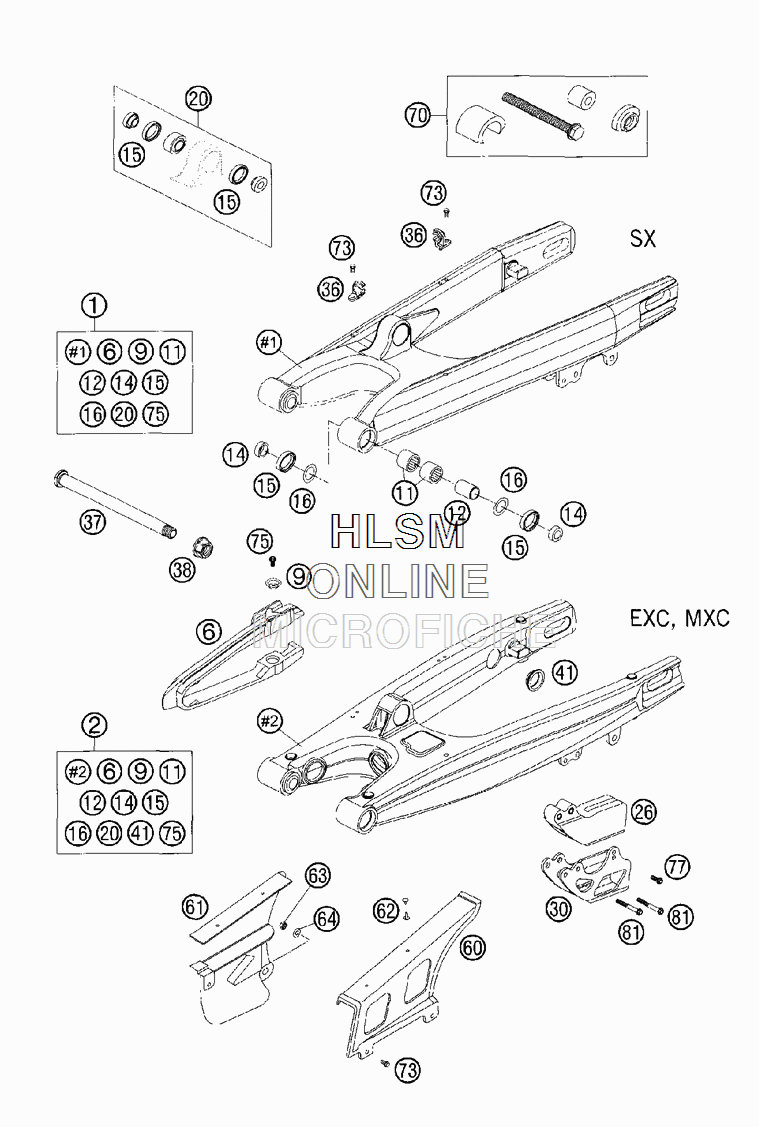

SWINGARM W/ CHAIN GUARD для Ktm 250 EXC RACING - 2005 года выпуска`

№

Артикул

Название
2

59404230144 SWINGARM CPL.

SWINGARM CPL.

0 ₽
6

50304066100 CHAIN GUARD

CHAIN GUARD

5 600 ₽
9

72210079000 BUCKET

BUCKET

680 ₽
11

59004031100 NEEDLE BEARING HK2212V

NEEDLE BEARING HK2212V

2 490 ₽
12

59404032000 BEARING SLEEVE 17X22X38,7

BEARING SLEEVE 17X22X38,7

2 330 ₽
14

54804034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 330 ₽
15

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
16

54603036000 STOP DISK 22,2X31, 7X1

STOP DISK 22,2X31, 7X1

440 ₽
20

50304090044 PIVOT BEARING+BUSHES PDS

PIVOT BEARING+BUSHES PDS

17 470 ₽
26

54607066100 CHAIN GUIDE REAR

CHAIN GUIDE REAR

6 600 ₽
30

54607070144 RETAINING PLATE CPL.

RETAINING PLATE CPL.

8 150 ₽
36

54611076100 RETAIN.CLAMP FOR BRAKE HOSE

RETAIN.CLAMP FOR BRAKE HOSE

350 ₽
37

54804037000 SWINGARM BOLT M16X1,5

SWINGARM BOLT M16X1,5

13 080 ₽
38

54804038000 SELF LOCKNUT M16X1,5 WS=19

SELF LOCKNUT M16X1,5 WS=19

270 ₽
41

58404041100 CLOSING COVER ROUND

CLOSING COVER ROUND

240 ₽
60

54607460000 CHAIN GUARD LARGE EGS

CHAIN GUARD LARGE EGS

11 010 ₽
61

50304060100 CHAIN GUARD SMALL EXC

CHAIN GUARD SMALL EXC

3 140 ₽
62

20012062055 HOLLOW RIVET TWO PARTS

HOLLOW RIVET TWO PARTS

790 ₽
63

0985060003 SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6

290 ₽
64

0021060003 WASHER DIN9021-A 6,4

WASHER DIN9021-A 6,4

290 ₽
70

50329000044 TOOL BEARING MOUNTING PDS

TOOL BEARING MOUNTING PDS

145 420 ₽
73

0009050103 SPECIAL SCREW M50X10

SPECIAL SCREW M50X10

290 ₽
75

0015060103 HH COLLAR SCREW M6X10 WS=8

HH COLLAR SCREW M6X10 WS=8

500 ₽
77

0015060163 HH COLLAR SCREW M6X16 WS=8

HH COLLAR SCREW M6X16 WS=8

290 ₽
81

0015060503 HH COLLAR SCREW M6X50 WS=8

HH COLLAR SCREW M6X50 WS=8

640 ₽
