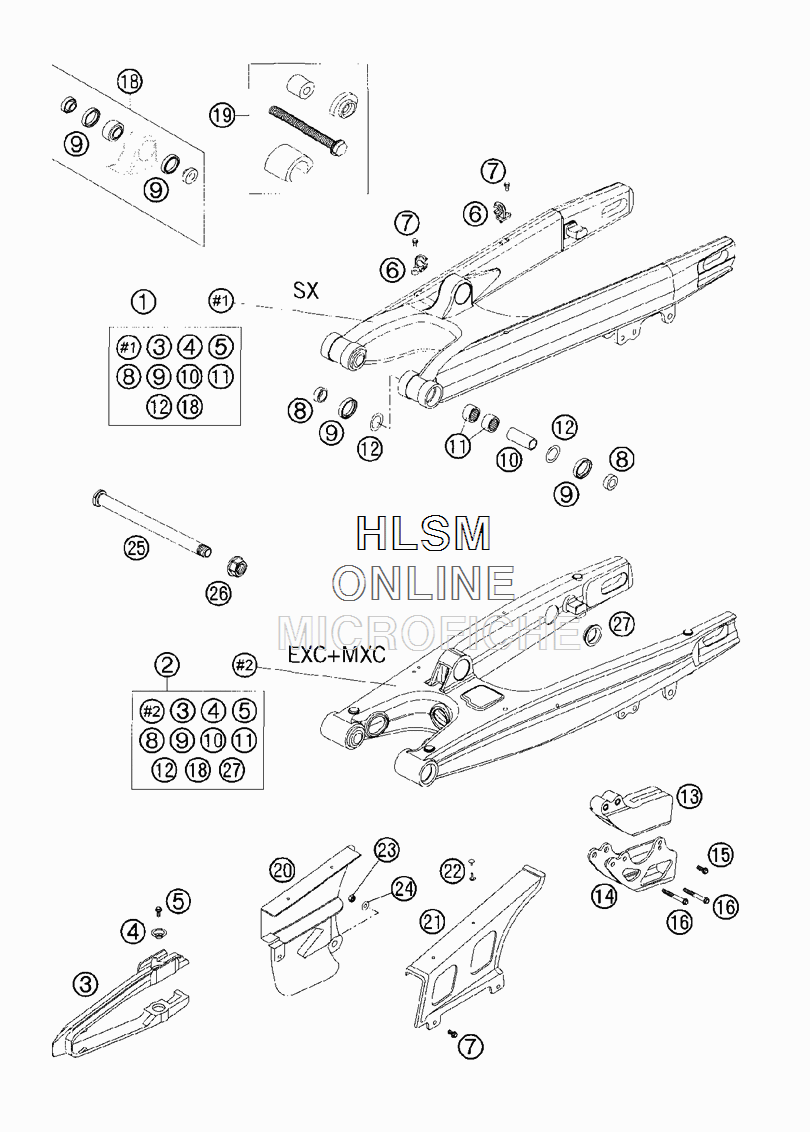

SWINGARM W/ CHAIN GUARD для Ktm 125 SX - 2005 года выпуска`

№

Артикул

Название
1

54804030044 SWINGARM CPL. 2-STROKE "L4"

SWINGARM CPL. 2-STROKE "L4"

0 ₽
3

50304066100 CHAIN GUARD

CHAIN GUARD

5 600 ₽
4

72210079000 BUCKET

BUCKET

680 ₽
5

0015060103 HH COLLAR SCREW M 6X10 WS=8

HH COLLAR SCREW M 6X10 WS=8

500 ₽
6

54611076100 RETAIN.CLAMP FOR BRAKE HOSE

RETAIN.CLAMP FOR BRAKE HOSE

350 ₽
7

0009050103 SPECIAL SCREW M 5,0X10

SPECIAL SCREW M 5,0X10

290 ₽
8

54804034000 BUCKET F. SHAFT SEAL RING

BUCKET F. SHAFT SEAL RING

1 330 ₽
9

0760253270 SHAFT SEAL RING 25X32X7

SHAFT SEAL RING 25X32X7

1 610 ₽
10

54804032000 BUSHING SLEEVE F. SWING ARM

BUSHING SLEEVE F. SWING ARM

2 680 ₽
11

58033097000 NEEDLE BEARING HK 2216

NEEDLE BEARING HK 2216

3 770 ₽
12

54603036000 STOP DISK 22,2X31,7X1

STOP DISK 22,2X31,7X1

440 ₽
13

54607066100 CHAIN GUIDE REAR

CHAIN GUIDE REAR

6 600 ₽
14

54607070144 RETAINING PLATE CPL.

RETAINING PLATE CPL.

8 150 ₽
15

0015060163 HH COLLAR SCREW M 6X16 WS=8

HH COLLAR SCREW M 6X16 WS=8

290 ₽
16

0015060503 HH COLLAR SCREW M 6X50 WS=8

HH COLLAR SCREW M 6X50 WS=8

640 ₽
18

50304090044 PIVOT BEARING+BUSHES PDS

PIVOT BEARING+BUSHES PDS

17 470 ₽
19

50329000044 TOOL BEARING MOUNTING PDS

TOOL BEARING MOUNTING PDS

145 420 ₽
20

50304060100 CHAIN GUARD SMALL

CHAIN GUARD SMALL

3 140 ₽
21

54607460000 CHAIN GUARD LARGE EGS

CHAIN GUARD LARGE EGS

11 010 ₽
22

20012062055 HOLLOW RIVET TWO PARTS

HOLLOW RIVET TWO PARTS

790 ₽
23

0985060003 SELF LOCK. NUT DIN0985-M 6

SELF LOCK. NUT DIN0985-M 6

290 ₽
24

0021060003 WASHER DIN9021-A 6,4

WASHER DIN9021-A 6,4

290 ₽
25

54804037000 SWINGARM BOLT M16X1,5 03

SWINGARM BOLT M16X1,5 03

13 080 ₽
26

54804038000 SELF LOCK.NUT M16X1,5 WS=19

SELF LOCK.NUT M16X1,5 WS=19

270 ₽
27

58404041100 CLOSING COVER ROUND

CLOSING COVER ROUND

240 ₽
