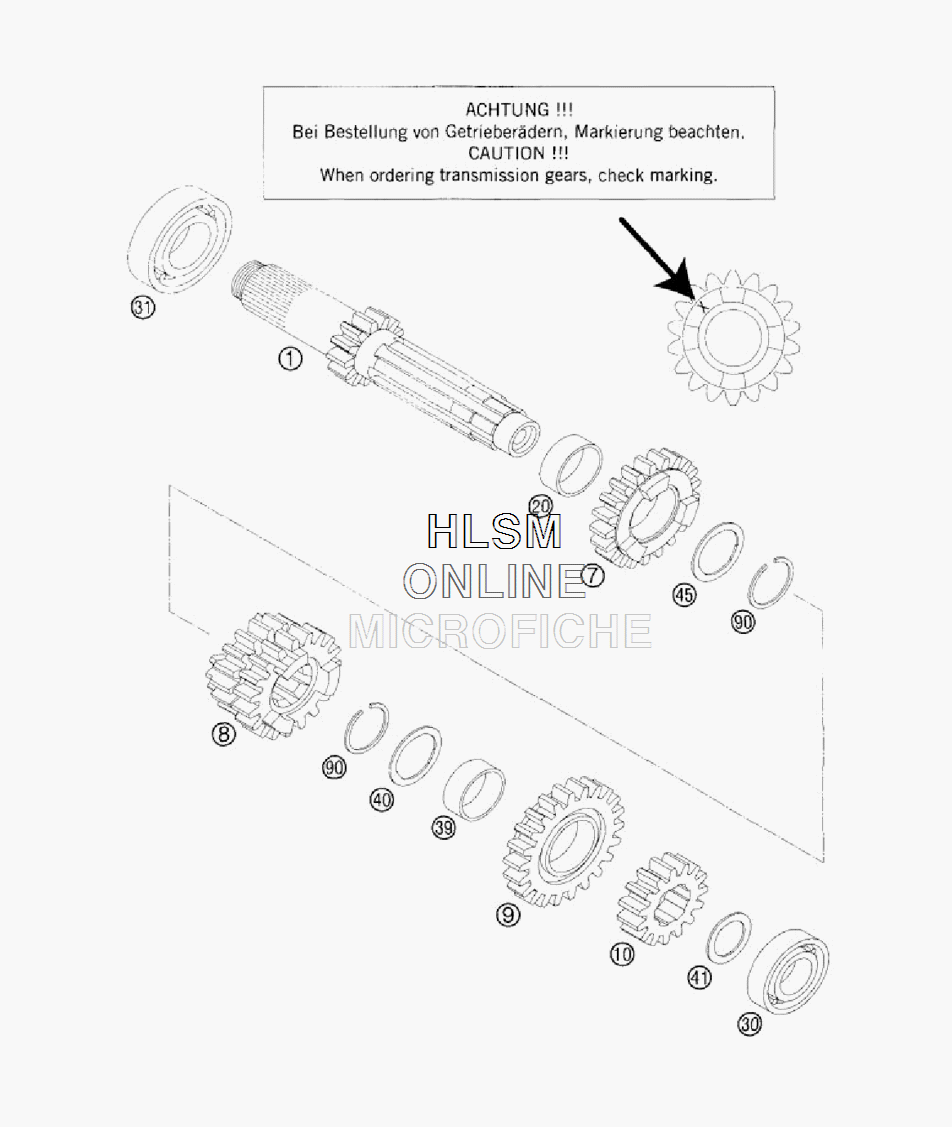

TRANSMISSION - MAIN SHAFT для Ktm 125 EXC SIXDAYS - 2005 года выпуска`
-
№АртикулНазвание
-
150333001144 MAIN SHAFT CPL. 12-TMAIN SHAFT CPL. 12-T
-
750333007000 IDLER G.5TH G.21-T 5S21IDLER G.5TH G.21-T 5S21
-
850333008100 SLIDING GEAR 3/4G. 17/19-T (3S17H - 4S19H)SLIDING GEAR 3/4G. 17/19-T (3S17H - 4S19H)
-
950333009100 IDLER G.6TH G.20-T 6G20IDLER G.6TH G.20-T 6G20
-
1050333010100 SOLID GEAR 2ND G.15-T "2S15"SOLID GEAR 2ND G.15-T "2S15"
-
2050333020000 IDLER GEAR BUSH. 22X25X11,1 AIDLER GEAR BUSH. 22X25X11,1 A
-
300625160030 GROOVED BALL BEARING 16003 C3GROOVED BALL BEARING 16003 C3
-
310625060042 BALL BEARING 6004 TN9 C4BALL BEARING 6004 TN9 C4
-
3950333020000 IDLER GEAR BUSH. 22X25X11,1 AIDLER GEAR BUSH. 22X25X11,1 A
-
4050333040000 STOP DISC 22,2X27,8X1 ASTOP DISC 22,2X27,8X1 A
-
4150333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
4550333045000 STOP DISK 22,2X27,8X1STOP DISK 22,2X27,8X1
-
9050133090000 LOCK RING 22X1,2LOCK RING 22X1,2
