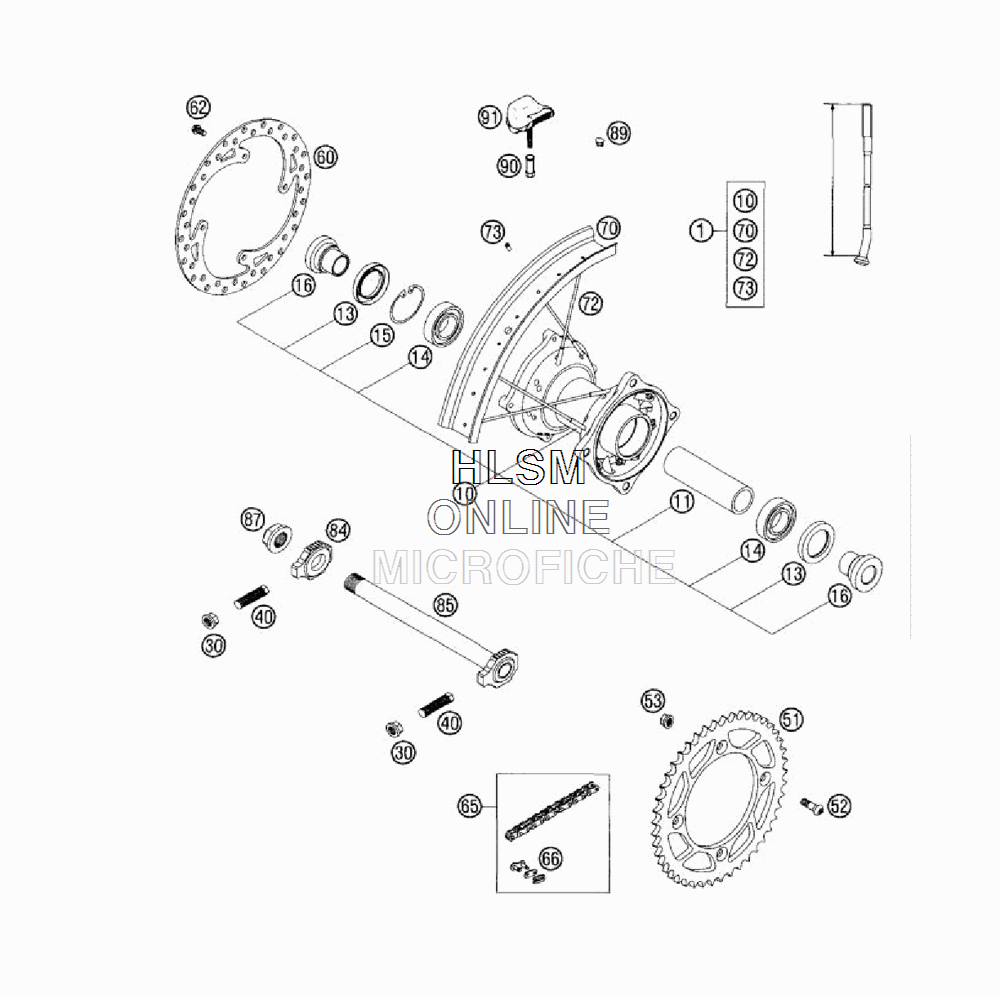

REAR WHEEL для Ktm 85 SX - 2004 года выпуска`
-
№АртикулНазвание
-
147010001044 REAR WHEEL SP 85 SX 14"REAR WHEEL SP 85 SX 14"
-
147010001144 REAR WHEEL SP 85 SX 15"REAR WHEEL SP 85 SX 15"
-
147010001244 REAR WHEEL SP 85 SX 16"REAR WHEEL SP 85 SX 16"
-
104701001004496 REAR WHEEL HUB CPL.REAR WHEEL HUB CPL.
-
1147010011000 BEARING SPACER TUBEBEARING SPACER TUBE
-
130760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
140625060058 GR.BALL BEAR.6005 DDU2CG23S6NMGR.BALL BEAR.6005 DDU2CG23S6NM
-
150472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
1654610016000 BUSHING FOR HUBBUSHING FOR HUB
-
3058414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4050304040000 SPEC. SCREW M10X1,25X40 WS=10SPEC. SCREW M10X1,25X40 WS=10
-
5147010051044 REAR SPROCKET 44-TREAR SPROCKET 44-T
-
5147010051045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
5147010051046 REAR SPROCKET 46-TREAR SPROCKET 46-T
-
5147010051047 REAR SPROCKET 47-TREAR SPROCKET 47-T
-
5147010051048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
5147010051049 REAR SPROCKET 49-TREAR SPROCKET 49-T
-
5147010051050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
5254510052100 SPROCKET SCREW-AH M8X26 WS=6SPROCKET SCREW-AH M8X26 WS=6
-
5354310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
6047010060000 BRAKE DISC REAR D=200MMBRAKE DISC REAR D=200MM
-
6259009062013 SPECIAL SCREW M6X13 WS=8 10.9SPECIAL SCREW M6X13 WS=8 10.9
-
6547010165124 CHAIN 124 ROLLSCHAIN 124 ROLLS
-
6647010166000 MASTER LINKMASTER LINK
-
7047010070000 RIM REAR AL4 14X1,60-32RIM REAR AL4 14X1,60-32
-
7047010070100 RIM REAR AL4 15X1,60-32RIM REAR AL4 15X1,60-32
-
7047010070200 RIM REAR AL4 16X1,85-32RIM REAR AL4 16X1,85-32
-
7247010072148 SPOKE REAR 14" 4/3,5/4-148SPOKE REAR 14" 4/3,5/4-148
-
7247010072162 SPOKE REAR 15" 4/3,5/4-162SPOKE REAR 15" 4/3,5/4-162
-
7247010072171 SPOKE REAR 16" 4/3,5/4-171SPOKE REAR 16" 4/3,5/4-171
-
7350309072000 SPOKE NIPPLE M4,5X0,75 8X21SPOKE NIPPLE M4,5X0,75 8X21
-
8450310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
8547010085044 AXLE REAR CPL.AXLE REAR CPL.
-
8750310099000 HEXAGON NUT M20X1,5 '98HEXAGON NUT M20X1,5 '98
-
8955003135000 PLUG FOR RIMPLUG FOR RIM
-
9050310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
9151009100100 RIM LOCK VM1 (1,60")RIM LOCK VM1 (1,60")
