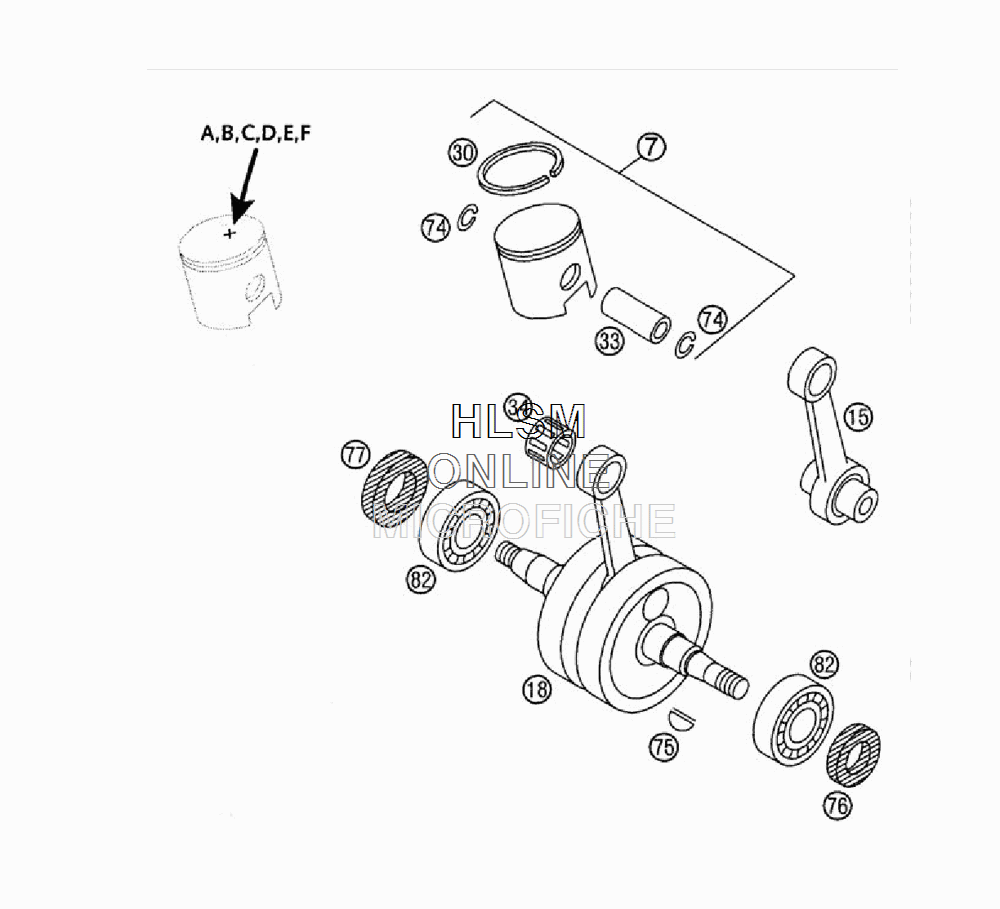

CRANKSHAFT W/ PISTON для Ktm 50 SX Pro Sr LC - 2004 года выпуска
-
№АртикулНазвание
-
745130007000A PISTON CPL.39,5 "AB"PISTON CPL.39,5 "AB"
-
745130007000C PISTON CPL.39,5 CDPISTON CPL.39,5 CD
-
745130007000E PISTON CPL.39,5 "EF"PISTON CPL.39,5 "EF"
-
1545130015000 CON.ROD REPAIRS.CON.ROD REPAIRS.
-
1845130018100 CRANKSHAFTCRANKSHAFT
-
3045130030000 PISTON RINGPISTON RING
-
3345130033000 PISTON PINPISTON PIN
-
3445130034000 NEEDLE BEAR.PISTONPIN 12X15X15NEEDLE BEAR.PISTONPIN 12X15X15
-
7446030074000 CIRCLIP 12X1CIRCLIP 12X1
-
7545130075000 WOODRUFF KEY 2,5X3,7WOODRUFF KEY 2,5X3,7
-
7645130076000 OIL SEAL RING 15X24X7OIL SEAL RING 15X24X7
-
7745130077000 OIL SEAL RING 17X35X7OIL SEAL RING 17X35X7
-
8245130082100 BALL BEARING 17X40X12BALL BEARING 17X40X12
