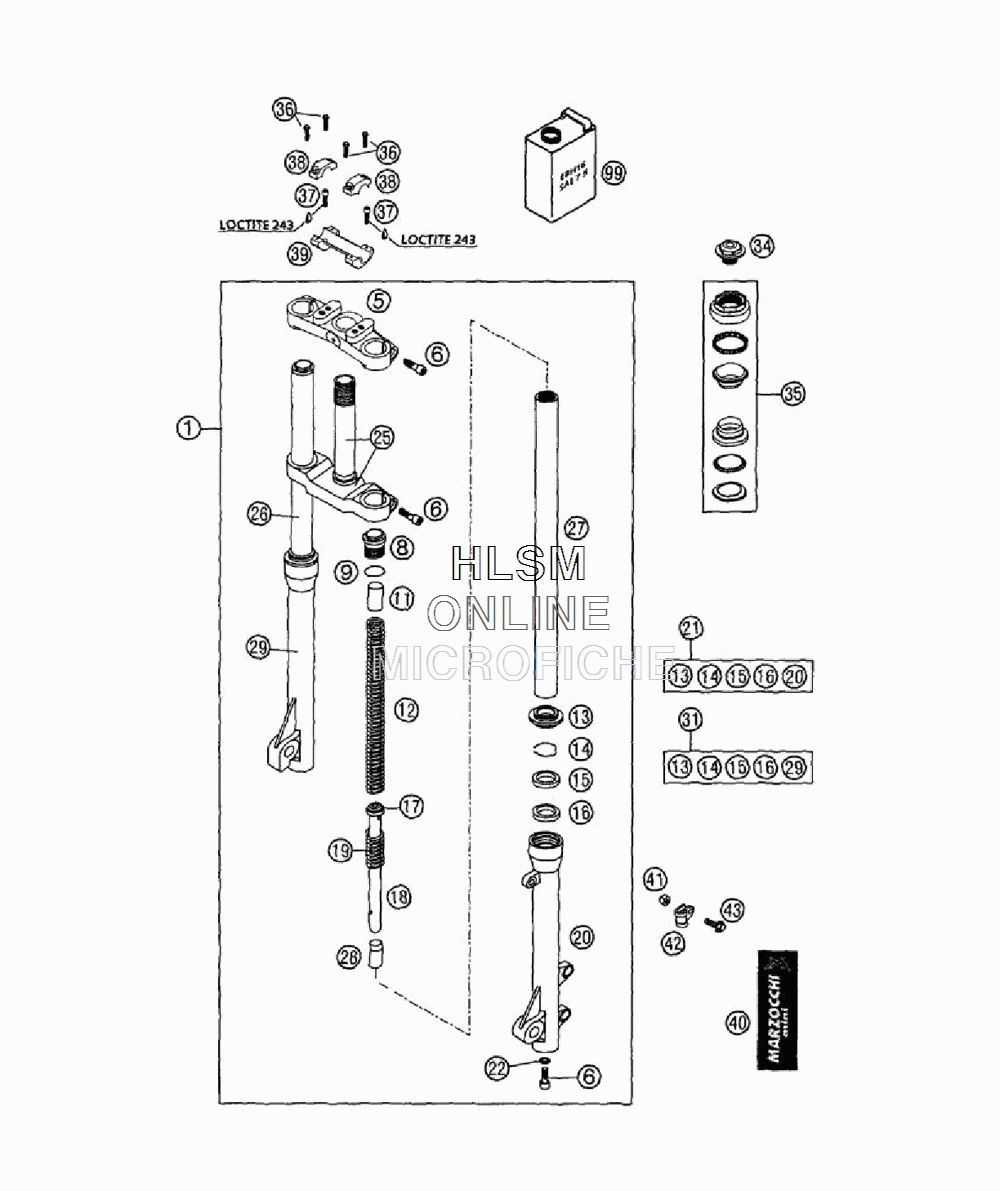

FRONT FORK для Ktm 50 SX Pro Jr LC - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    45101000444 FORK CPL. JUN MARZ.
    FORK CPL. JUN MARZ.
  • 5
    7501476A TOP FORK PLATE
    TOP FORK PLATE
  • 6
    0912080303 AH SCREW DIN0912-M 8X30
    AH SCREW DIN0912-M 8X30
  • 8
    7504212AC SCREW CAP
    SCREW CAP
  • 9
    7528010 O-RING
    O-RING
  • 9
    7528010 O-RING
    O-RING
  • 11
    7518031 PRE LOAD BUSH L=55MM
    PRE LOAD BUSH L=55MM
  • 12
    75141169 SPRING 2N/MM
    SPRING 2N/MM
  • 12
    75141214 SPRING 2,5N/MM
    SPRING 2,5N/MM
  • 13
    7533297 DUST SEAL
    DUST SEAL
  • 14
    7523264 STOP RING
    STOP RING
  • 15
    7528230 OIL SEAL 32/42/6,5-9,5
    OIL SEAL 32/42/6,5-9,5
  • 16
    7522166AA WASHER D42X32,5X1,5
    WASHER D42X32,5X1,5
  • 17
    7524157 PISTON RING D32
    PISTON RING D32
  • 18
    7803936/A PISTON ROD REBOUND (LEFT)
    PISTON ROD REBOUND (LEFT)
  • 18
    7803938/A PISTON ROD COMPRESSION (RIGHT)
    PISTON ROD COMPRESSION (RIGHT)
  • 19
    75141015 REBOUND SPRING
    REBOUND SPRING
  • 20
    75031570A SLIDER L/S
    SLIDER L/S
  • 21
    75031570A/R SLIDER CPL. L/S
    SLIDER CPL. L/S
  • 22
    7522225 WASHER 14X8X1,5
    WASHER 14X8X1,5
  • 25
    77051124 BOT. FORK PLATE CPL
    BOT. FORK PLATE CPL
  • 26
    7708247/R FORK TUBE R/S
    FORK TUBE R/S
  • 27
    7708248/R FORK TUBE L/S
    FORK TUBE L/S
  • 28
    7512068 FOOT BUFFER
    FOOT BUFFER
  • 29
    75031571A SLIDER R/S
    SLIDER R/S
  • 31
    75031571A/R SLIDER CPL. R/S
    SLIDER CPL. R/S
  • 34
    50301036000 STEER. HEAD SCREW M20X1,5 WS=27
    STEER. HEAD SCREW M20X1,5 WS=27
  • 35
    45101081100 STEER.STEM B. CPL.
    STEER.STEM B. CPL.
  • 36
    0015080303 HH COLLAR SCREW M 8X30 WS=10
    HH COLLAR SCREW M 8X30 WS=10
  • 37
    0912100250 AH SCREW DIN6912-M10X25,10.9,L
    AH SCREW DIN6912-M10X25,10.9,L
  • 38
    50301038000 HANDLEBAR CLAMP D=22MM
    HANDLEBAR CLAMP D=22MM
  • 39
    45101039000 HANDLEBAR SUPPORT D=22MM
    HANDLEBAR SUPPORT D=22MM
  • 40
    7547325 STICKER LEFT SIDE MARZOCCHI
    STICKER LEFT SIDE MARZOCCHI
  • 40
    7547331 STICKER RIGHT SIDE MARZOCCHI
    STICKER RIGHT SIDE MARZOCCHI
  • 41
    0985050003 SELF LOCKING NUT DIN0985-M 5
    SELF LOCKING NUT DIN0985-M 5
  • 42
    45001070000 BRAKE CABLE GUIDE
    BRAKE CABLE GUIDE
  • 43
    0015050203 HH COLLAR SCREW M 5X20 WS=8
    HH COLLAR SCREW M 5X20 WS=8
  • 99
    7550013 FORKOIL EBH16 SAE 7.5
    FORKOIL EBH16 SAE 7.5
