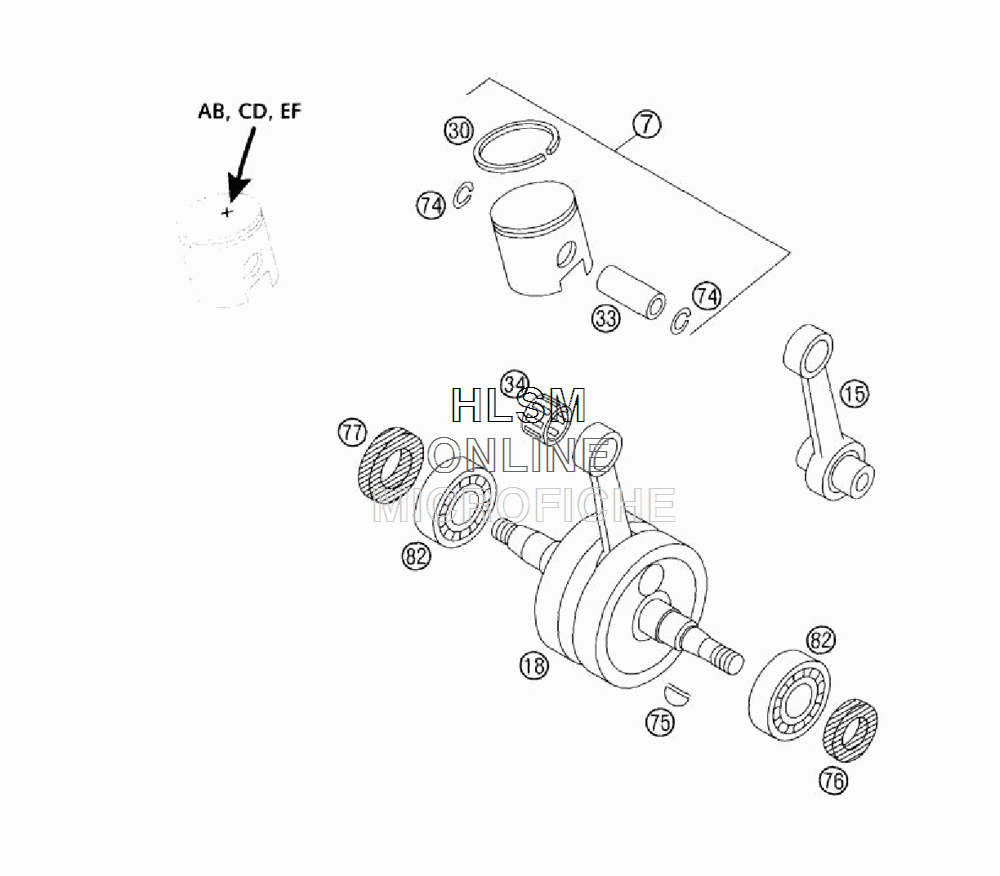

CRANKSHAFT W/ PISTON для Ktm 50 Mini Adventure - 2004 года выпуска
-
№АртикулНазвание
-
745130007000A PISTON CPL.39,5 "AB"PISTON CPL.39,5 "AB"
-
745130007000C PISTON CPL,39,5 "CD"PISTON CPL,39,5 "CD"
-
745130007000E PISTON CPL.39,5 "EF"PISTON CPL.39,5 "EF"
-
1545130515000 CON.ROD REPAIR SETCON.ROD REPAIR SET
-
1845130518100 CRANKSHAFTCRANKSHAFT
-
3045130030000 PISTON RINGPISTON RING
-
3345130033000 PISTON PINPISTON PIN
-
3445130034000 NEEDLE BEAR. PISTON PIN 12X15X15NEEDLE BEAR. PISTON PIN 12X15X15
-
7446030074000 CIRCLIP 12X1CIRCLIP 12X1
-
7545130075000 WOODRUFF KEY 2,5X3,7WOODRUFF KEY 2,5X3,7
-
7645130076000 OIL SEAL RING 15X24X7OIL SEAL RING 15X24X7
-
7745130077000 OIL SEAL RING 17X35X7OIL SEAL RING 17X35X7
-
8245130082100 BALL BEARING 17X40X12BALL BEARING 17X40X12
Все узлы модели:
- CARBURETOR DELLORTO 14 PHVA DS
- CLUTCH
- CLUTCH - CASE
- • CRANKSHAFT W/ PISTON
- CYLINDER
- DECAL
- EXHAUST PIPE
- FENDER W/ MASK
- FRAME W/ SUB FRAME
- FRONT FORK
- FRONT WHEEL
- HANDLEBAR W/ CONTROLS
- IGNITION SYSTEM
- KICKSTARTER
- OIL PUMP
- REAR BRAKE
- REAR WHEEL
- SHOCK ABSORBER
- SPECIAL TOOLS
- TANK - SEAT - COVER
- TRANSMISSION
