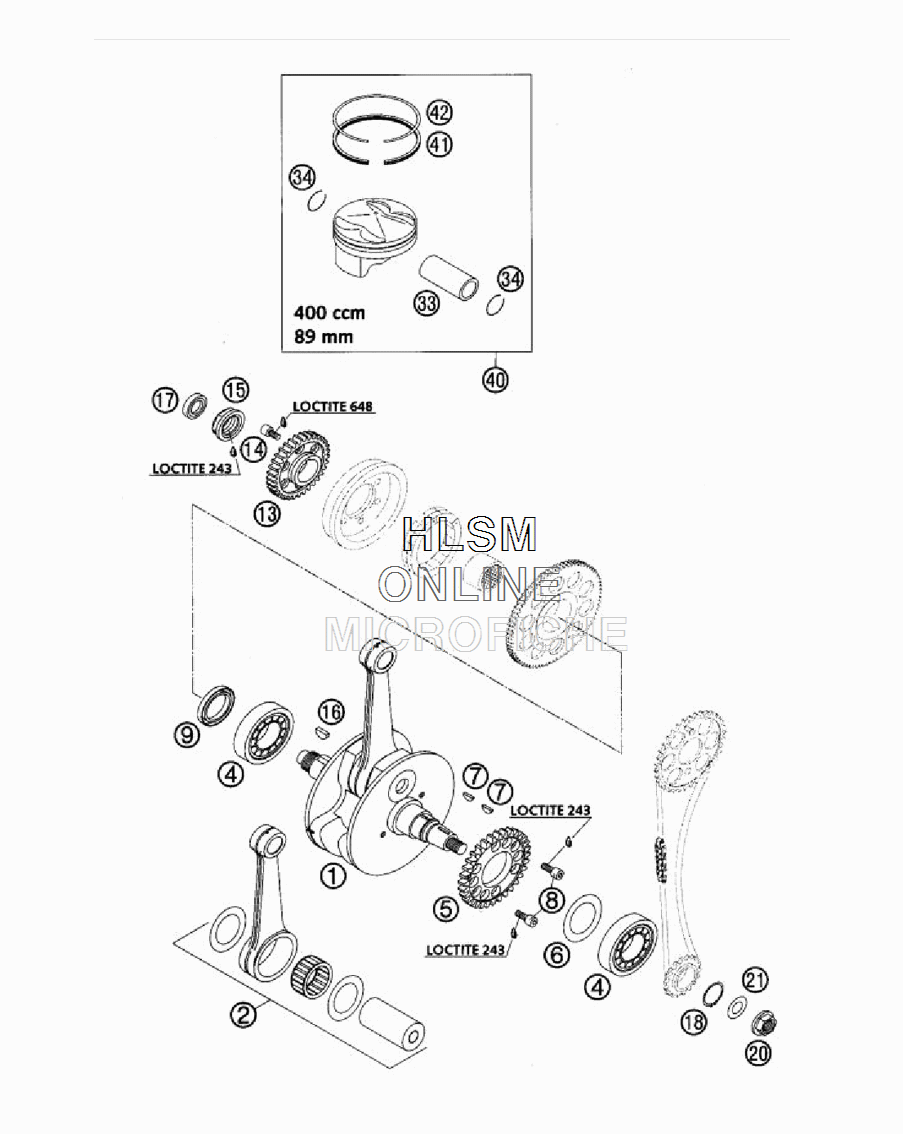

CRANKSHAFT W/ PISTON для Ktm 400 EXC RFS - 2004 года выпуска

  • №
    Артикул
    Название
  • 1
    59530018200 CRANKSHAFT CPL.
    CRANKSHAFT CPL.
  • 2
    59530015044 CON.ROD REP. SET
    CON.ROD REP. SET
  • 4
    50330082000 CYL.ROLLER BEAR.NJ206 ET2XCS46
    CYL.ROLLER BEAR.NJ206 ET2XCS46
  • 5
    59030055000 DRIVE GEAR 32-T F.BALANC.SHAFT
    DRIVE GEAR 32-T F.BALANC.SHAFT
  • 6
    56030081000 THRUST WASHER 30,5X45X0,10
    THRUST WASHER 30,5X45X0,10
  • 6
    56030081100 THRUST WASHER 30,7X47X0,15
    THRUST WASHER 30,7X47X0,15
  • 6
    56030081200 THRUST WASHER 30,5X45X0,30
    THRUST WASHER 30,5X45X0,30
  • 7
    0888030050 WOODRUFF KEY DIN6888-3X5X13
    WOODRUFF KEY DIN6888-3X5X13
  • 8
    0984060162 AH SCREW DIN7984-M 6X16
    AH SCREW DIN7984-M 6X16
  • 9
    0760304772 SH.SEAL RING 30X47X7 BSL VITON
    SH.SEAL RING 30X47X7 BSL VITON
  • 13
    59032000033 PRIMARY GEAR 33-T
    PRIMARY GEAR 33-T
  • 14
    0912060106 AH SCREW DIN0912-M 6X10 10.9
    AH SCREW DIN0912-M 6X10 10.9
  • 15
    59030029100 HH NUR M20X1,5 WS=27 LEFT
    HH NUR M20X1,5 WS=27 LEFT
  • 16
    6946005 WOODRUFF KEY 5X6,5 HARDED
    WOODRUFF KEY 5X6,5 HARDED
  • 17
    0760142460 SHAFT SEAL RING 14X24X6 B
    SHAFT SEAL RING 14X24X6 B
  • 18
    0471250120 CIRCLIP DIN0471-25X1,2
    CIRCLIP DIN0471-25X1,2
  • 20
    49030021000 COLLAR NUT M12X1 R/S
    COLLAR NUT M12X1 R/S
  • 21
    0137120000 SPRING WASHER DIN0137-B12
    SPRING WASHER DIN0137-B12
  • 33
    59030033000 PISTON PIN BOLT 20X15,8/12X50
    PISTON PIN BOLT 20X15,8/12X50
  • 34
    59030074000 CIRCLIP C20X1,5
    CIRCLIP C20X1,5
  • 40
    59530007000I PISTON /89MM CPL. CAST
    PISTON /89MM CPL. CAST
  • 40
    59530007000II PISTON II 89MM CPL. CAST
    PISTON II 89MM CPL. CAST
  • 41
    59530031000 OIL SCRAPER RING 89/81,5X3
    OIL SCRAPER RING 89/81,5X3
  • 42
    57530032000 RECTANGULAR RING 89MM
    RECTANGULAR RING 89MM
