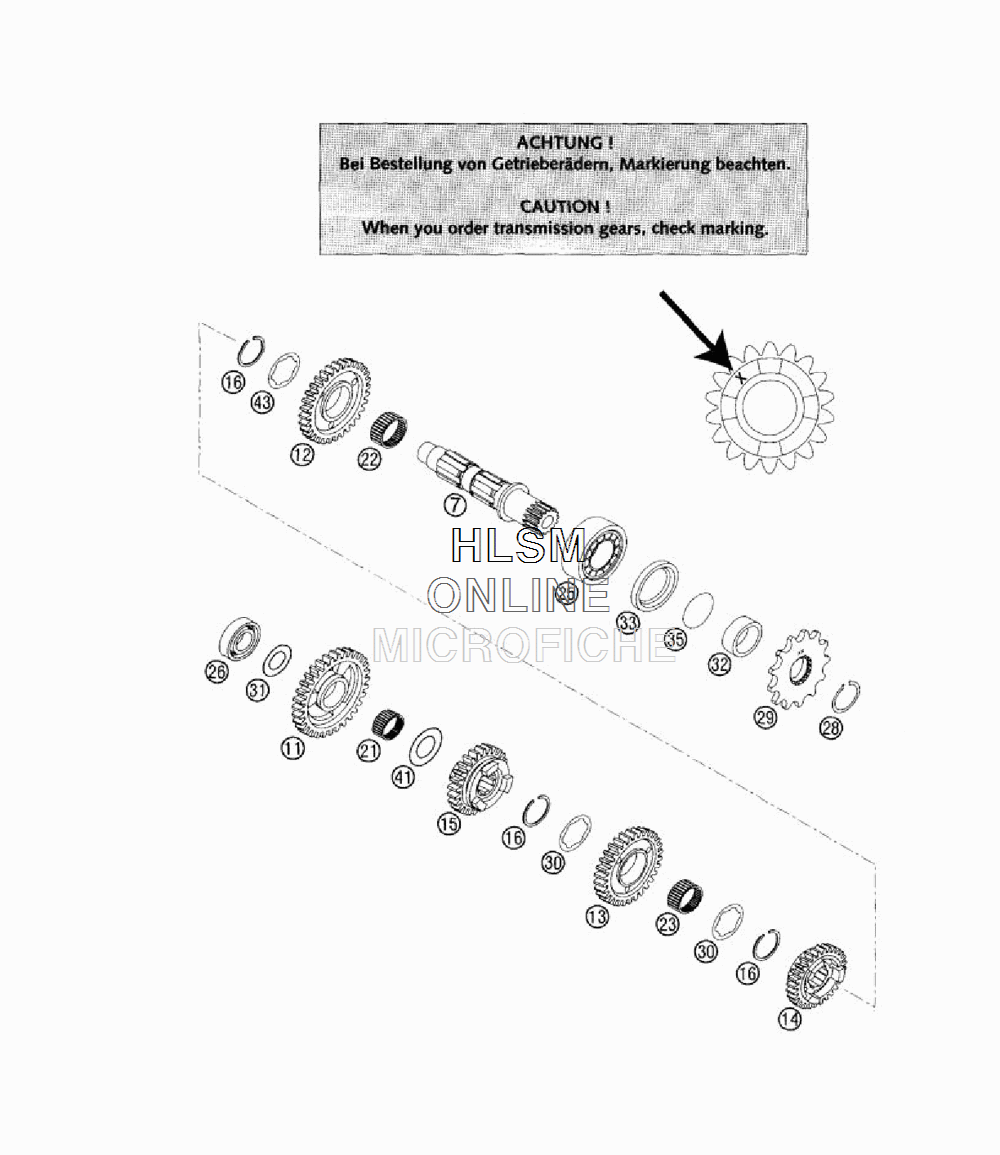

TRANSMISSION - COUNTERSHAFT для Ktm 300 MXC - 2004 года выпуска

  • №
    Артикул
    Название
  • 7
    54833007000 COUNTERSHAFT
    COUNTERSHAFT
  • 11
    54833011000 IDLER GEAR 1ST G. 28-T "1S28"
    IDLER GEAR 1ST G. 28-T "1S28"
  • 12
    54833012100 IDLER GEAR 2ND G. 26-T "2S26"
    IDLER GEAR 2ND G. 26-T "2S26"
  • 13
    54833013000 IDLER GEAR 3RD G. 24-T "3S24"
    IDLER GEAR 3RD G. 24-T "3S24"
  • 14
    54833014000 SLIDING GEAR 4TH G.24-T "2S24"
    SLIDING GEAR 4TH G.24-T "2S24"
  • 15
    54833015000 SLIDING GEAR 5TH G.21-T "5S21"
    SLIDING GEAR 5TH G.21-T "5S21"
  • 16
    54633096000 AXIAL-CIRCLIP 25X1,64
    AXIAL-CIRCLIP 25X1,64
  • 21
    0405202413 NEEDLE BEAR. K20X24X13
    NEEDLE BEAR. K20X24X13
  • 22
    0405242812 NEDDLE BEAR. K24X28X11,9 DIV.
    NEDDLE BEAR. K24X28X11,9 DIV.
  • 23
    56533099000 NEEDLE BEAR. K22X26X13 DIVIDED
    NEEDLE BEAR. K22X26X13 DIVIDED
  • 25
    54833025000 BALL BEARING TM-SCO5C20C4 NTN
    BALL BEARING TM-SCO5C20C4 NTN
  • 26
    0625062035 BALL BEARING 6203 C3 NTN
    BALL BEARING 6203 C3 NTN
  • 28
    52033096000 LOCK RING DIN0471-25X1,64SD
    LOCK RING DIN0471-25X1,64SD
  • 29
    50033029013 SPROCKET 13-T
    SPROCKET 13-T
  • 29
    50033029014 SPROCKET 14-T
    SPROCKET 14-T
  • 29
    50033029015 SPROCKET 15-T
    SPROCKET 15-T
  • 30
    59033030000 STOP DISC 25,2X32X1,5
    STOP DISC 25,2X32X1,5
  • 31
    56033030000 STOP DISC 17,2X30X1
    STOP DISC 17,2X30X1
  • 32
    54833032011 SPACER SLEEVE DRIVE END
    SPACER SLEEVE DRIVE END
  • 33
    0760324565 SHAFT SEAL RING 32X45X6,5 BTSL
    SHAFT SEAL RING 32X45X6,5 BTSL
  • 35
    0770250020 O-RING 25,00X2,00 NBR 70
    O-RING 25,00X2,00 NBR 70
  • 41
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 43
    50333043000 STOP DISC 25,2X32X1
    STOP DISC 25,2X32X1
