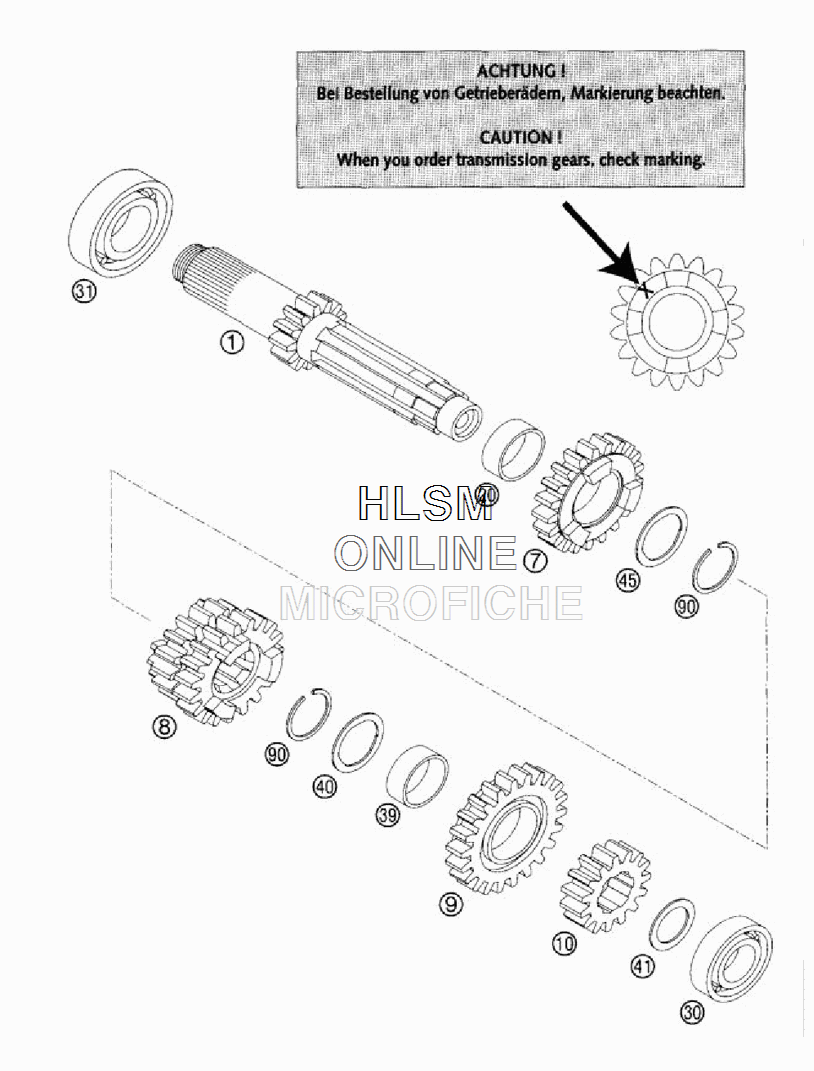

TRANSMISSION - MAIN SHAFT для Ktm 200 SX - 2004 года выпуска`
-
№АртикулНазвание
-
150333001044 MAIN SHAFT CPL. 13-TMAIN SHAFT CPL. 13-T
-
750333007000 IDLER G.5TH G.21-T "5521IDLER G.5TH G.21-T "5521
-
850333008000 SLIDING GEAR 3/4.GEAR 17/19-T "3517" - "4519"SLIDING GEAR 3/4.GEAR 17/19-T "3517" - "4519"
-
950333009000 IDLER G.6TH G.22-T "6522"IDLER G.6TH G.22-T "6522"
-
1050333010100 SOLID GEAR 2ND G.15-T2515SOLID GEAR 2ND G.15-T2515
-
2050333020000 IDLER GEAR BUSH. 22X25X11,1 AIDLER GEAR BUSH. 22X25X11,1 A
-
300625160030 GROOVED BALL BEARING 16003 C3GROOVED BALL BEARING 16003 C3
-
310625060042 BALL BEARING 6004 TN9 C4BALL BEARING 6004 TN9 C4
-
3950333020000 IDLER GEAR BUSH. 22X25X11,1 AIDLER GEAR BUSH. 22X25X11,1 A
-
4050333040000 STOP DISC 22,2X27,8X1 ASTOP DISC 22,2X27,8X1 A
-
4150333041000 STOP DISC 17,2X26X1 BSTOP DISC 17,2X26X1 B
-
4550333045000 STOP DISK 22,2X27,8X1STOP DISK 22,2X27,8X1
-
9050133090000 LOCK RING 22X1,2LOCK RING 22X1,2
