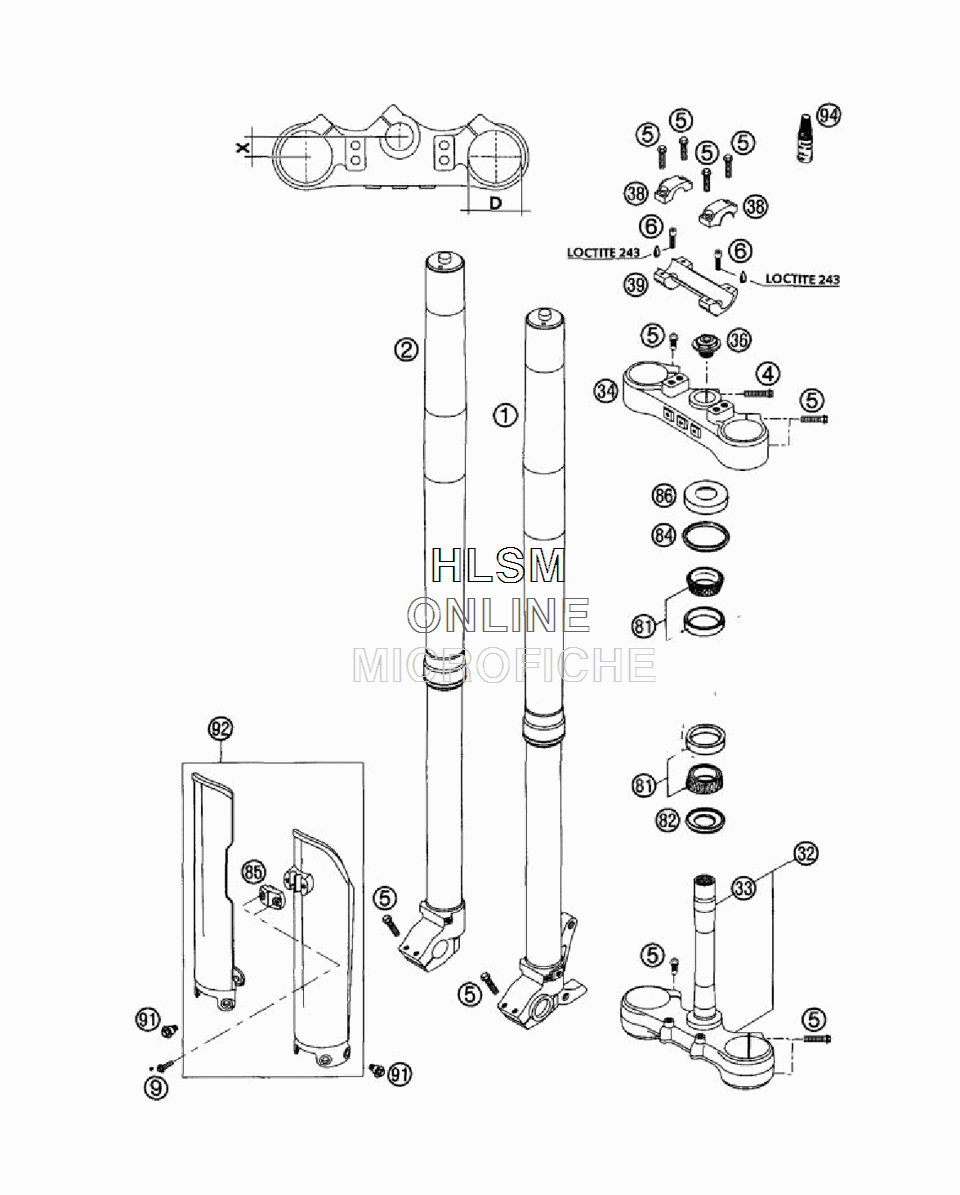

FRONT FORK - 48 для Ktm 525 MXC-G Racing - 2003 года выпуска`

№

Артикул

Название
1

1418X737LS FORK LEG L/S WP48

FORK LEG L/S WP48

0 ₽
2

1418X737RS FORK LEG R/S WP48

FORK LEG R/S WP48

0 ₽
4

0015080353 HH COLLAR SCREW M8X35 WS=10

HH COLLAR SCREW M8X35 WS=10

410 ₽
5

0015080303 HH COLLAR SCREW M8X30 WS=10

HH COLLAR SCREW M8X30 WS=10

700 ₽
6

0912100250 AH SCREW DIN0912-M10X25,10.9,L

AH SCREW DIN0912-M10X25,10.9,L

820 ₽
9

0017060203 SPECIAL SCREW T60 6X20 WS=6

SPECIAL SCREW T60 6X20 WS=6

290 ₽
32

59001132120 BOT.TRIP.CL.CPL. X=20MM/D=60MM

BOT.TRIP.CL.CPL. X=20MM/D=60MM

60 250 ₽
33

50101033100 FORK TUBE L=244 '91

FORK TUBE L=244 '91

20 300 ₽
34

59001034120 TOP TRIPLE CLAMP X=20MM/D=57MM

TOP TRIPLE CLAMP X=20MM/D=57MM

42 170 ₽
36

54801036000 STEER.HEAD SCREW M20X1,5 WS=27

STEER.HEAD SCREW M20X1,5 WS=27

2 840 ₽
38

59001038200 HANDLEBAR CLAMP D=28MM

HANDLEBAR CLAMP D=28MM

5 640 ₽
39

59001039100 HANDLEBAR SUPPORT 28MM

HANDLEBAR SUPPORT 28MM

17 210 ₽
81

54201081000 TAPERED ROLLER BEARING

TAPERED ROLLER BEARING

13 380 ₽
82

54601084100 O-RING SUPPORT W. SEALING LIP

O-RING SUPPORT W. SEALING LIP

4 940 ₽
84

54601184000 STEARING HEAD GASKET TOP

STEARING HEAD GASKET TOP

1 900 ₽
85

59001085100 CLAMP F.SPEED.CABLE D=6MM

CLAMP F.SPEED.CABLE D=6MM

640 ₽
86

54201086000 STEERING HEAD COVER

STEERING HEAD COVER

2 270 ₽
91

59001092050 SPECIAL SCREW M6X12,5 WS=8

SPECIAL SCREW M6X12,5 WS=8

410 ₽
92

5900109400030 FORK PROTECT. L/S+R/S BLACK

FORK PROTECT. L/S+R/S BLACK

10 550 ₽
94

6899785 LOCTITE 243 BLUE 6CCM

LOCTITE 243 BLUE 6CCM

7 570 ₽
