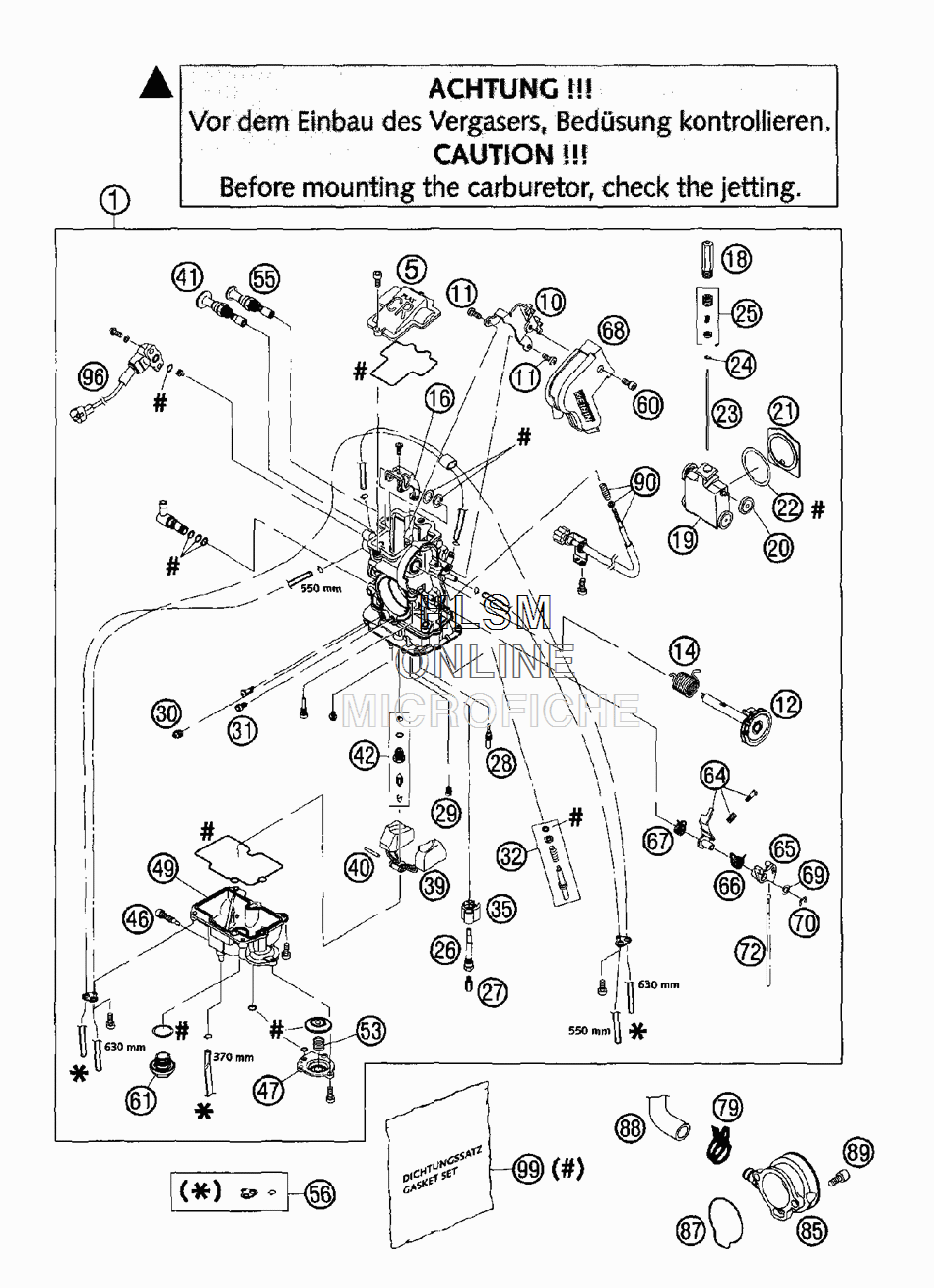

CARBURETOR FCR-MX 39/41 для Ktm 525 EXC-G Racing - 2003 года выпуска`

№

Артикул

Название
1

59031001200 CARBURETOR FCR-MX39 TPS

CARBURETOR FCR-MX39 TPS

340 ₽
5

57331027000 CARBURETOR COVER

CARBURETOR COVER

10 610 ₽
10

57331080000 BRACKET PLATE FOR THR. CABLE

BRACKET PLATE FOR THR. CABLE

17 520 ₽
11

57331055000 SCREW M 5 X 8

SCREW M 5 X 8

380 ₽
12

57331046000 THROTTLE SHAFT CPL.

THROTTLE SHAFT CPL.

34 760 ₽
14

57331046050 COIL SPRING THROTTLE SHAFT

COIL SPRING THROTTLE SHAFT

2 100 ₽
16

57331035051 LINK ARM THROTTLE VALVE CPL.

LINK ARM THROTTLE VALVE CPL.

22 930 ₽
18

59031029010 SLIDE STOP 03

SLIDE STOP 03

3 830 ₽
19

57331035000 THROTTLE VALVE CPL.

THROTTLE VALVE CPL.

93 280 ₽
20

59031035050 BEARING THROTTLE VALVE

BEARING THROTTLE VALVE

2 860 ₽
21

57331035053 GASKET PLATE THROTTLE VALVE

GASKET PLATE THROTTLE VALVE

51 860 ₽
22

59031035052 GASKET WASHER THROTTLE VALVE

GASKET WASHER THROTTLE VALVE

4 850 ₽
23

59031023200 JET NEEDLE KEIHIN OBDVT

JET NEEDLE KEIHIN OBDVT

7 860 ₽
23

590310340TM JET NEEDLE KEIHIN OBDTM

JET NEEDLE KEIHIN OBDTM

7 540 ₽
23

59031034000 JET NEEDLE KEIHIN OBDTN

JET NEEDLE KEIHIN OBDTN

7 650 ₽
23

59031034500 JET NEEDLE KEIHIN OBDTQ

JET NEEDLE KEIHIN OBDTQ

7 800 ₽
24

59031029000 BAR CLIP

BAR CLIP

1 110 ₽
25

57331032000 NEEDLE SET SCREW CPL.

NEEDLE SET SCREW CPL.

10 840 ₽
26

59031121000 NEEDLE JET

NEEDLE JET

8 820 ₽
27

54531623170 MAIN JET 170 KEIHIN

MAIN JET 170 KEIHIN

3 450 ₽
27

54531623172 MAIN JET 172 KEIHIN

MAIN JET 172 KEIHIN

3 450 ₽
27

54531623175 MAIN JET 175 KEIHIN

MAIN JET 175 KEIHIN

3 450 ₽
27

54531623178 MAIN JET 178 KEIHIN

MAIN JET 178 KEIHIN

3 660 ₽
27

54531623180 MAIN JET 180 KEIHIN

MAIN JET 180 KEIHIN

3 300 ₽
27

54531623182 MAIN JET 182 KEIHIN

MAIN JET 182 KEIHIN

3 480 ₽
27

54531623188 MAIN JET 188 KEIHIN

MAIN JET 188 KEIHIN

3 390 ₽
27

54531623190 MAIN JET 190 KEIHIN

MAIN JET 190 KEIHIN

3 210 ₽
28

54531607042 IDLE JET 42 KEIHIN

IDLE JET 42 KEIHIN

3 300 ₽
28

54531607045 IDLE JET 45 KEIHIN

IDLE JET 45 KEIHIN

3 240 ₽
29

59031051085 STARTER JET 85

STARTER JET 85

4 500 ₽
30

57331007100 IDLE AIR JET 100 KEIHIN

IDLE AIR JET 100 KEIHIN

4 180 ₽
31

57331037200 MAIN AIR JET 200 KEIHIN

MAIN AIR JET 200 KEIHIN

3 960 ₽
32

59031017100 ADJUST SCREW CPL. FCR-MX

ADJUST SCREW CPL. FCR-MX

5 000 ₽
35

57331085000 BUFFER PLATE

BUFFER PLATE

3 010 ₽
39

57331009000 FLOAT CPL.

FLOAT CPL.

16 090 ₽
40

57331008000 ARM PIN FLOAT

ARM PIN FLOAT

470 ₽
41

57331075000 HOT-STARTER VALVE CPL.

HOT-STARTER VALVE CPL.

26 430 ₽
42

57331020000 NEEDLE VALVE CPL.

NEEDLE VALVE CPL.

21 930 ₽
46

57331155000 DRAIN SCREW FLOAT CHAMBER

DRAIN SCREW FLOAT CHAMBER

1 380 ₽
47

57331060000 COVER ACCELERATOR PUMP

COVER ACCELERATOR PUMP

6 630 ₽
49

57331011000 FLOAT CHAMBER

FLOAT CHAMBER

48 240 ₽
53

59031059000 COIL SPRING

COIL SPRING

1 690 ₽
55

57331048000 STARTER VALVE CPL.

STARTER VALVE CPL.

23 450 ₽
56

57331098000 BREATH.HOSE FCR-MX KEIHIN CPL.

BREATH.HOSE FCR-MX KEIHIN CPL.

29 060 ₽
60

57331038100 SCREW F. COVER KEIHIN

SCREW F. COVER KEIHIN

2 570 ₽
61

57331014000 HOLDING BOLT

HOLDING BOLT

4 790 ₽
64

57331062000 INTERMEDIATE LEVER CPL.

INTERMEDIATE LEVER CPL.

9 000 ₽
65

57331056000 LINK LEVER

LINK LEVER

1 870 ₽
66

57331059000 SPRING LINK LEVER

SPRING LINK LEVER

2 750 ₽
67

57331159000 SPRING INTERMEDIATE LEVER

SPRING INTERMEDIATE LEVER

2 650 ₽
68

57331038000 CARBURETOR COVER

CARBURETOR COVER

6 630 ₽
69

57331087000 WASHER LINK LEVER

WASHER LINK LEVER

350 ₽
70

57331084000 E-CLIP

E-CLIP

530 ₽
72

57331061000 ROD ACCELERATOR PUMP

ROD ACCELERATOR PUMP

7 220 ₽
79

58431082100 YDNAC-CLAMP 16MM

YDNAC-CLAMP 16MM

210 ₽
85

59031040200 INTAKE FUNNEL FCR/FCR-MX (SIDEWARDS CLOSED)

INTAKE FUNNEL FCR/FCR-MX (SIDEWARDS CLOSED)

2 350 ₽
85

59031040100 INTAKE FUNNEL FCR/FCR-MX (SIDEWARDS CLOSED)

INTAKE FUNNEL FCR/FCR-MX (SIDEWARDS CLOSED)

2 510 ₽
87

59031040010 O-RING FOR INTAKE FUNNEL

O-RING FOR INTAKE FUNNEL

680 ₽
88

59031050100 ENGINE BREATHER TUBE

ENGINE BREATHER TUBE

3 920 ₽
89

0912050123 AH SCREW DIN0912-M 5X12

AH SCREW DIN0912-M 5X12

270 ₽
90

57331025000 STOP SCREW CPL. FCR-MX

STOP SCREW CPL. FCR-MX

15 300 ₽
96

59031077000 THROTTLE POSITION SENSOR

THROTTLE POSITION SENSOR

56 220 ₽
99

57331099000 GASKET SET FCR-MX KEIHIN

GASKET SET FCR-MX KEIHIN

32 360 ₽
