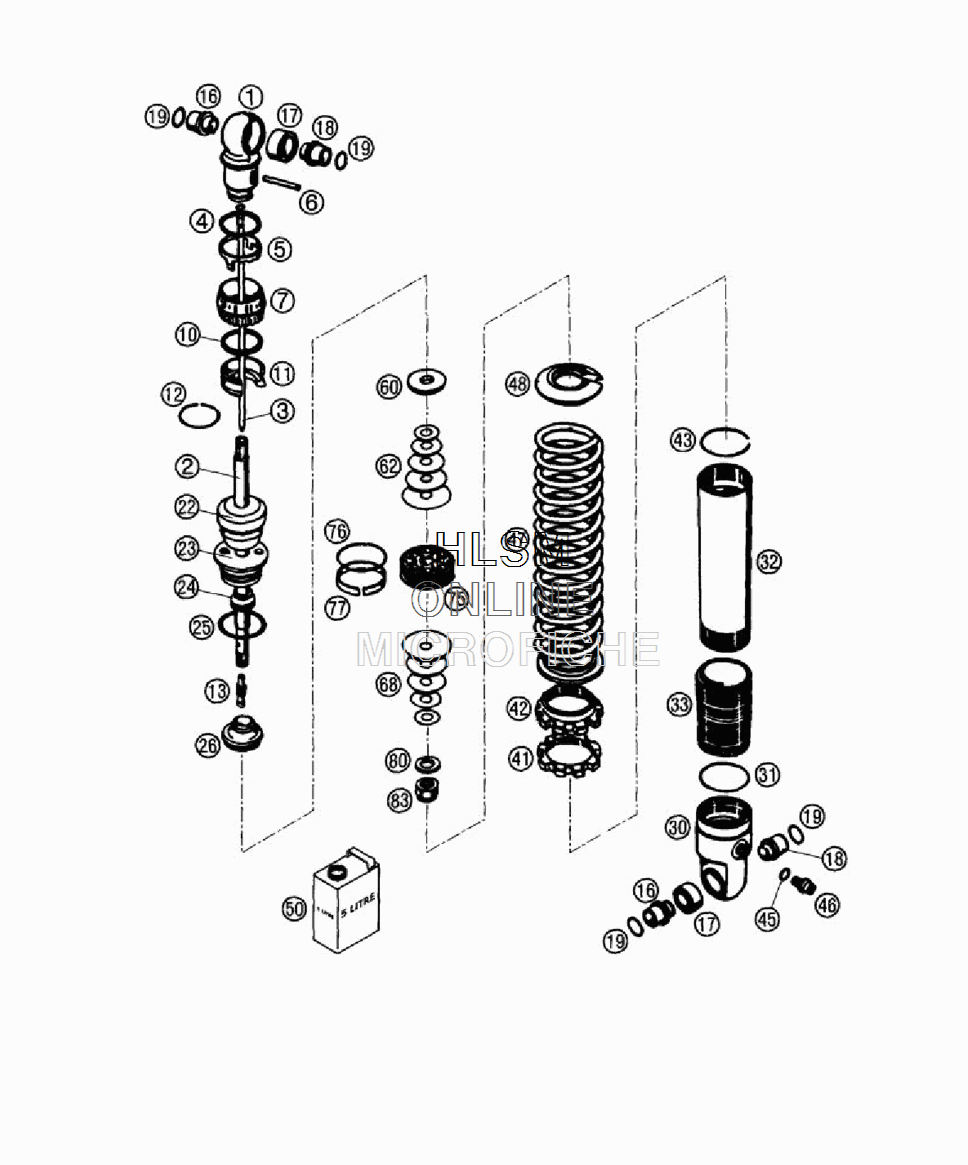

SHOCK ABSORBER - DISASSEMBLED для Ktm 50 SX Pro Jr - 2003 года выпуска`
-
№АртикулНазвание
-
146811495 SHOCK ABS. BOTTOM L=50SHOCK ABS. BOTTOM L=50
-
236120570 SPINDEL D=14; L=78 50SPINDEL D=14; L=78 50
-
346811385S NEEDLE CPL. D=4; L=94NEEDLE CPL. D=4; L=94
-
446811222 O-RING 36X0,5O-RING 36X0,5
-
546811263 WASHERWASHER
-
646811261 PIN 4X35PIN 4X35
-
746811827 ADJ. KNOB D=40ADJ. KNOB D=40
-
1046811221 O-RING 35X3O-RING 35X3
-
1146811367 INTERMEDIATO RING H=4INTERMEDIATO RING H=4
-
1246811268 CIRCLIP 22X1,2CIRCLIP 22X1,2
-
1346811259 NEEDLE SEAT 5X17,25NEEDLE SEAT 5X17,25
-
1646811076 ADAPTOR BUSH KGW 10X20ADAPTOR BUSH KGW 10X20
-
1746811027 BEARING KGW 1525BEARING KGW 1525
-
1846811078 ADAPTOR KGW 10X24ADAPTOR KGW 10X24
-
1946811050 SEAL KGWSEAL KGW
-
2236120427 BUMP RUBBER WP65 L=20BUMP RUBBER WP65 L=20
-
2336120651 SCREW CAP M37,65SCREW CAP M37,65
-
2446811044 DUST SEAL 1424DUST SEAL 1424
-
2536120064 O-RING NBR 29,74X3,53O-RING NBR 29,74X3,53
-
2636120522S1 ADAPTOR CPL. D=36 H=20,5ADAPTOR CPL. D=36 H=20,5
-
3036120551 SHOCK ABSORBER CASE KGW H=38SHOCK ABSORBER CASE KGW H=38
-
3140540037 O-RING 38X2O-RING 38X2
-
3236120094 TUBE L=112TUBE L=112
-
3336120388 THREADED BUSH L=45 BLACKTHREADED BUSH L=45 BLACK
-
4136120015 COUNTERNUTCOUNTERNUT
-
4236120418 ADJUSTING NUTADJUSTING NUT
-
4340540015 CIRCLIP 38X1,5CIRCLIP 38X1,5
-
4546810893 O-RING NBR 5,28X1,78O-RING NBR 5,28X1,78
-
4636120151 SCREW PLUG M5X6SCREW PLUG M5X6
-
4793010166 SPRING(46,5/40,5) 85-130 D=9,0SPRING(46,5/40,5) 85-130 D=9,0
-
4836120461 SPRING RETAINER D=39SPRING RETAINER D=39
-
5050180342S1 SHOCK ABSORBER FLUIDSHOCK ABSORBER FLUID
-
6036120557 REBOUND.BUSH H=5,6REBOUND.BUSH H=5,6
-
6236120350 SHIM 10X21X0,30SHIM 10X21X0,30
-
6236120298 SHIM 10X16X0,2SHIM 10X16X0,2
-
6236120343 SHIM 10X23X0,25SHIM 10X23X0,25
-
6236120344 SHIM 10X25X0,25SHIM 10X25X0,25
-
6236120345 SHIM 10X27X0,25SHIM 10X27X0,25
-
6236120338 SHIM 10X29X0,20SHIM 10X29X0,20
-
6236120339 SHIM 10X31X0,20SHIM 10X31X0,20
-
6236120340 SHIM 10X33X0,20SHIM 10X33X0,20
-
6836120312 BACKPLATE 10X16X0,30BACKPLATE 10X16X0,30
-
6836120334 SHIM 10X21X0,20SHIM 10X21X0,20
-
6836120336 SHIM 10X25X0,2SHIM 10X25X0,2
-
6836120327 SHIM 10X23X0,15SHIM 10X23X0,15
-
6836120655 PRESSURE-RING 27X23,25X0,30PRESSURE-RING 27X23,25X0,30
-
6836120328 SHIM 10X25X0,15SHIM 10X25X0,15
-
7536120624 PISTON 6+6X5,5/3,5PISTON 6+6X5,5/3,5
-
7646810035 O-RING VITON 37,82X1,78O-RING VITON 37,82X1,78
-
7736120040 PISTON RING 8X1X108,3PISTON RING 8X1X108,3
-
8036120604 SHIM D10XD22X2,5SHIM D10XD22X2,5
-
8336120605S PISTON ROD NUT CPL. H=15,2PISTON ROD NUT CPL. H=15,2
