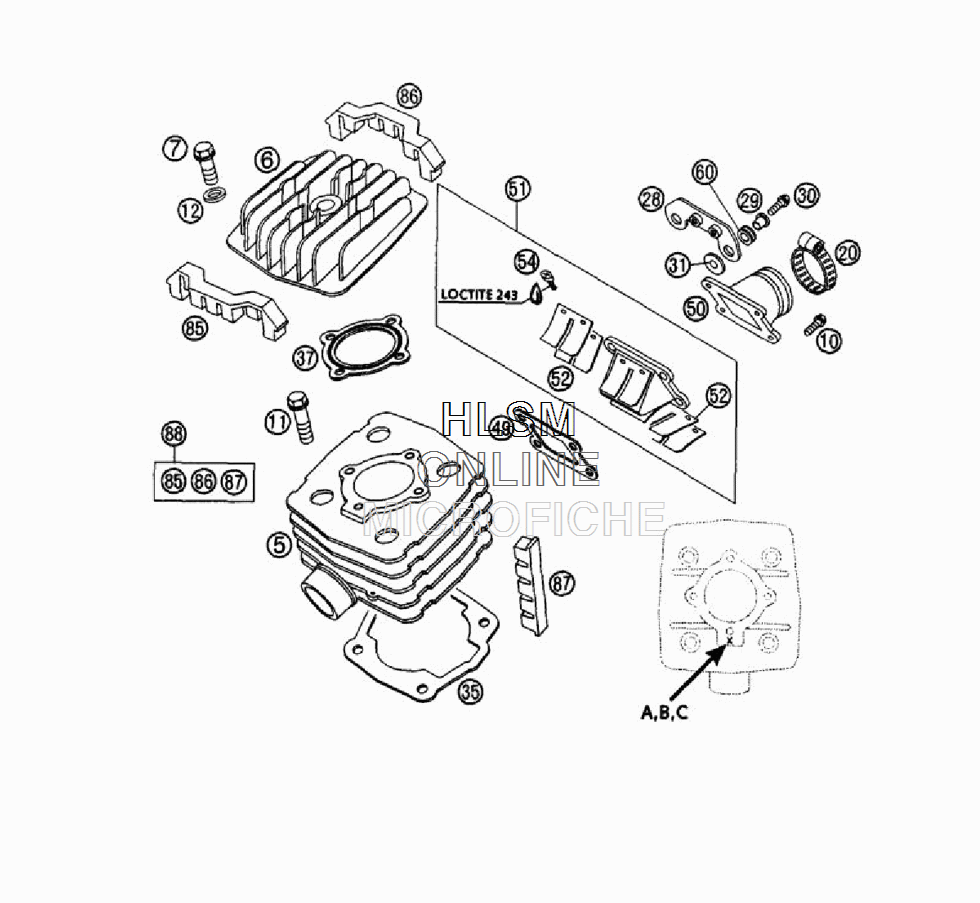

CYLINDER W/ CYLINDER HEAD для Ktm 50 Mini Adventure AC - 2003 года выпуска`
-
№АртикулНазвание
-
545130505000A CYLINDER 39,5MM "A"CYLINDER 39,5MM "A"
-
545130505000B CYLINDER 39,5MM "B"CYLINDER 39,5MM "B"
-
545130505000C CYLINDER 39,5MM "C"CYLINDER 39,5MM "C"
-
645130506100 CYLINDER HEADCYLINDER HEAD
-
70015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
100015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
110015080203 HH COLLAR SCREW M 8X20 WS=10HH COLLAR SCREW M 8X20 WS=10
-
120125060003 WASHER DIN0125-A 6,4WASHER DIN0125-A 6,4
-
2010001120000 CLAMP 25-40 SGT 4CLAMP 25-40 SGT 4
-
2845139028000 BRACKET IGNITI. COILBRACKET IGNITI. COIL
-
2945139128000 COLLAR BUSHING 6,3X8X7,5COLLAR BUSHING 6,3X8X7,5
-
300015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
310021060003 WASHER DIN9021-A 6,4WASHER DIN9021-A 6,4
-
3546030035020 CYLINDER BASE GASKET 0,2 MMCYLINDER BASE GASKET 0,2 MM
-
3546030035050 CYLINDER BASE GASKET 0,5 MMCYLINDER BASE GASKET 0,5 MM
-
3745130537000 CYLINDER HEAD GASKETCYLINDER HEAD GASKET
-
4946030049000 INTAKE VALVE GASKETINTAKE VALVE GASKET
-
5045130050000 INLET MANIFOLDINLET MANIFOLD
-
5145130051044 MEMBRANE HOUSING CPL.MEMBRANE HOUSING CPL.
-
5246030052000 MEMBRANE LOOSE 60/65MEMBRANE LOOSE 60/65
-
540985030063 FLAT HEAD SCREW DIN7985-M 3X6FLAT HEAD SCREW DIN7985-M 3X6
-
6031008060000 RUBBER SLEEVE D=8MM OPENRUBBER SLEEVE D=8MM OPEN
-
8845130588000 DAMPING RUBBER-SETDAMPING RUBBER-SET
