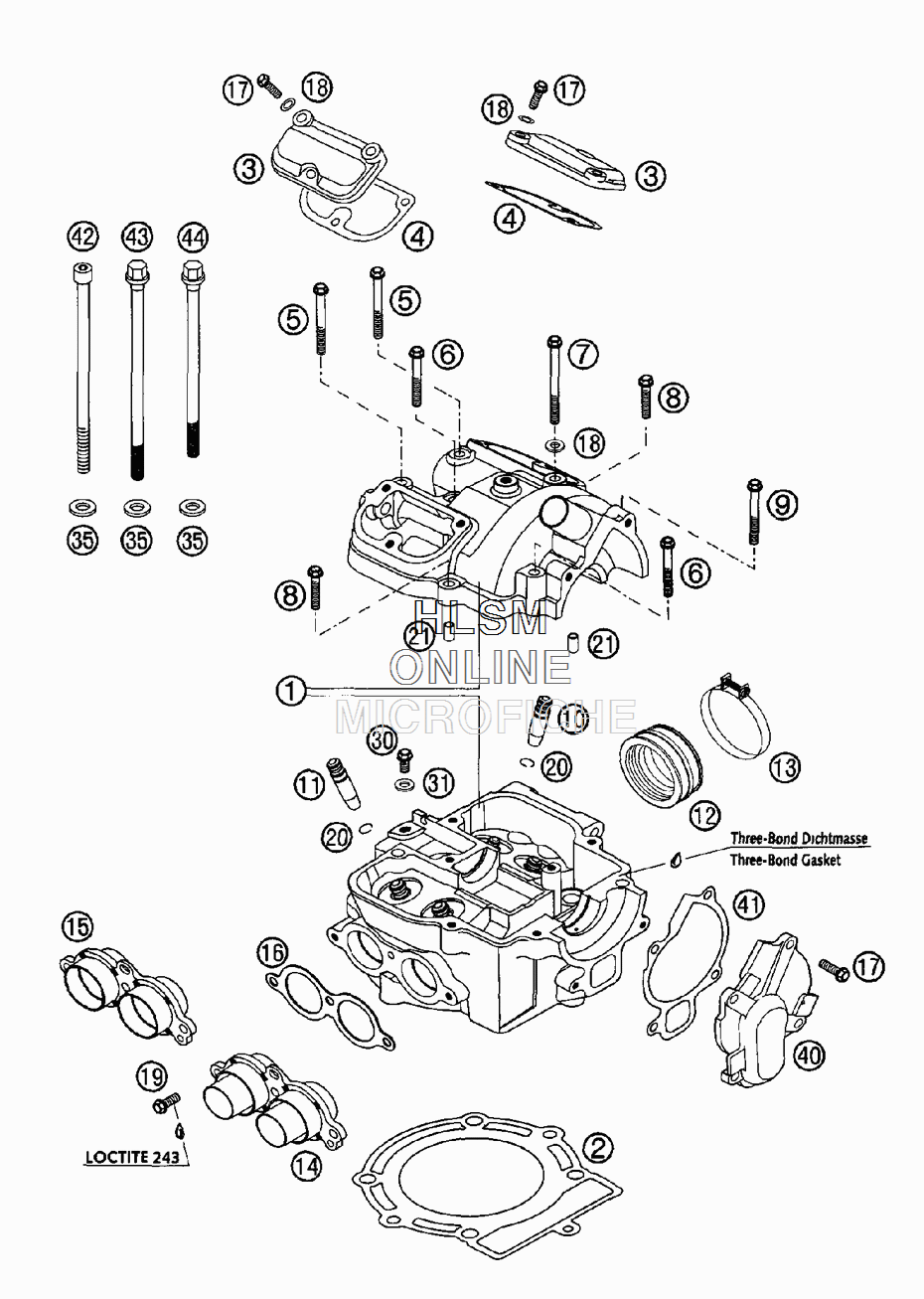

CYLINDER HEAD для Ktm 450 EXC-G Racing - 2003 года выпуска`
-
№АртикулНазвание
-
159036020144 CYLINDER HEAD CPL.CYLINDER HEAD CPL.
-
259530036000 CYLINDER HEAD GASKET 89,3 MMCYLINDER HEAD GASKET 89,3 MM
-
358036052000 VALVE COVER REARVALVE COVER REAR
-
458036053000 VALVE COVER GASKETVALVE COVER GASKET
-
50015060553 HH COLLAR SCREW M 6X55 WS=8HH COLLAR SCREW M 6X55 WS=8
-
60015060453 HH COLLAR SCREW M 6X45 WS=8HH COLLAR SCREW M 6X45 WS=8
-
70015060753 HH COLLAR SCREW M 6X75 WS=8HH COLLAR SCREW M 6X75 WS=8
-
80015060303 HH COLLAR SCREW M 6X30 WS=8HH COLLAR SCREW M 6X30 WS=8
-
90015060503 HH COLLAR SCREW M 6X50 WS=8HH COLLAR SCREW M 6X50 WS=8
-
1059036025000 VALVE GUIDE INTAKE 36,5MMVALVE GUIDE INTAKE 36,5MM
-
1159036026000 VALVE GUIDE EXHAUST 40,5MMVALVE GUIDE EXHAUST 40,5MM
-
1259036044100 RUBBER CLAMP RACINGRUBBER CLAMP RACING
-
1359030061000 CLAMP D=56MM B=9MM M4X25CLAMP D=56MM B=9MM M4X25
-
1559036039000 EXHAUST FLANGE CPL. RACINGEXHAUST FLANGE CPL. RACING
-
1659036041000 GASKET EXHAUST FLANGE 1MMGASKET EXHAUST FLANGE 1MM
-
170015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
180603061001 CU-SEAL RING DIN7603-6X10X1CU-SEAL RING DIN7603-6X10X1
-
190015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
200993012000 CIRCLIP DIN7993-RW12CIRCLIP DIN7993-RW12
-
2159030023000 DOWEL 6X8X11,5DOWEL 6X8X11,5
-
3059036006090 VENT SCREW M6X10 CPL.VENT SCREW M6X10 CPL.
-
3158036065100 CU-SEAL RING 6 X 10 X 2CU-SEAL RING 6 X 10 X 2
-
3559036090000 WASHER 10,8X18,8X1,5WASHER 10,8X18,8X1,5
-
4059035052000 WATER PUMP COVER RACING 2000WATER PUMP COVER RACING 2000
-
4159035053000 WATER PUMP COVER GASKET 0,5MMWATER PUMP COVER GASKET 0,5MM
-
420912101503 AH SCREW M10X150 10.9AH SCREW M10X150 10.9
-
4359036079000 CYLINDER HEAD SCREW M10X158CYLINDER HEAD SCREW M10X158
