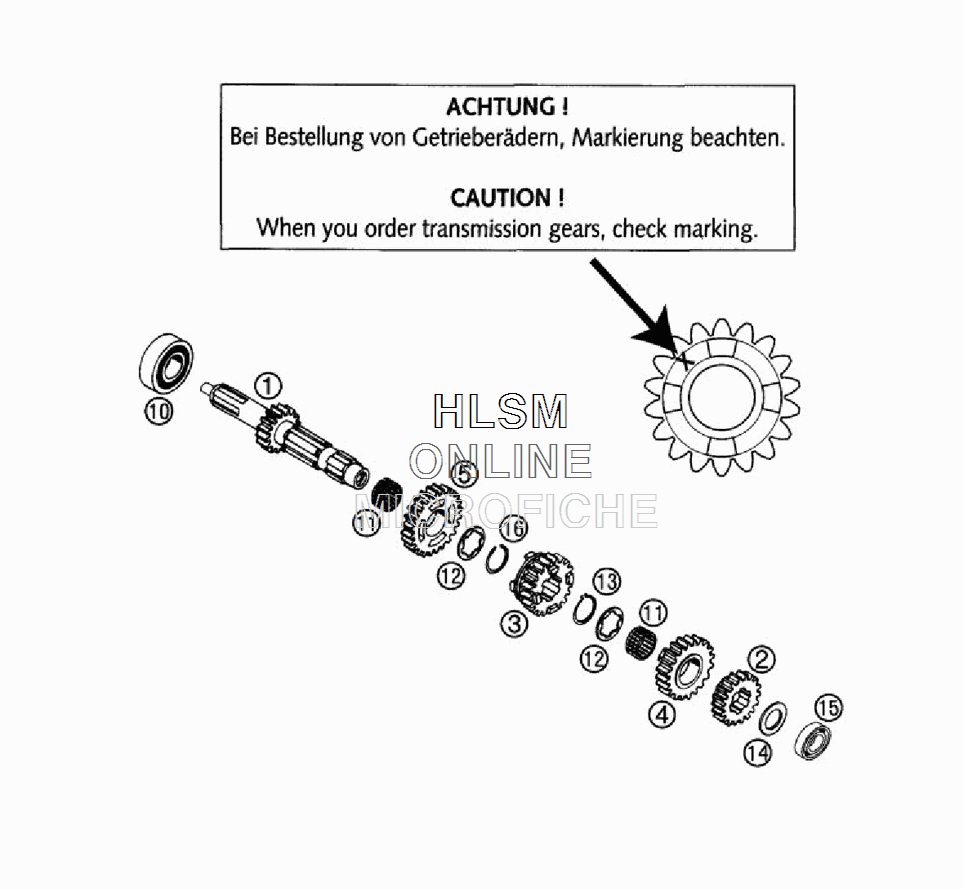

TRANSMISSION - MAIN SHAFT для Ktm 300 MXC - 2003 года выпуска`
-
№АртикулНазвание
-
154733001000 MAIN SHAFT 15-TMAIN SHAFT 15-T
-
254633110000 SOLID GEAR 2ND GEAR 18-T "446"SOLID GEAR 2ND GEAR 18-T "446"
-
354633006300 SLIDING GEAR 3RD G. 19-T "462"SLIDING GEAR 3RD G. 19-T "462"
-
454633008000 IDLER GEAR 4TH GEAR 21-T "480"IDLER GEAR 4TH GEAR 21-T "480"
-
554633004000 IDLER GEAR 5TH GEAR 23-T "500"IDLER GEAR 5TH GEAR 23-T "500"
-
100625201029 BALL BEARING 6304/22BALL BEARING 6304/22
-
1156533099000 NEEDLE BEAR. K22X26X13 DIVIDEDNEEDLE BEAR. K22X26X13 DIVIDED
-
1254633016000 STOP DISK 22,4X25,7X32X1,5STOP DISK 22,4X25,7X32X1,5
-
1352033096000 LOCK RING DIN0471-25X1,64SDLOCK RING DIN0471-25X1,64SD
-
1454633015000 STOP DISK 20,2X33X1,5STOP DISK 20,2X33X1,5
-
150625069040 BALL BEARING 6904 C3BALL BEARING 6904 C3
-
1654633096000 AXIAL-CIRCLIP 25X1,64AXIAL-CIRCLIP 25X1,64
