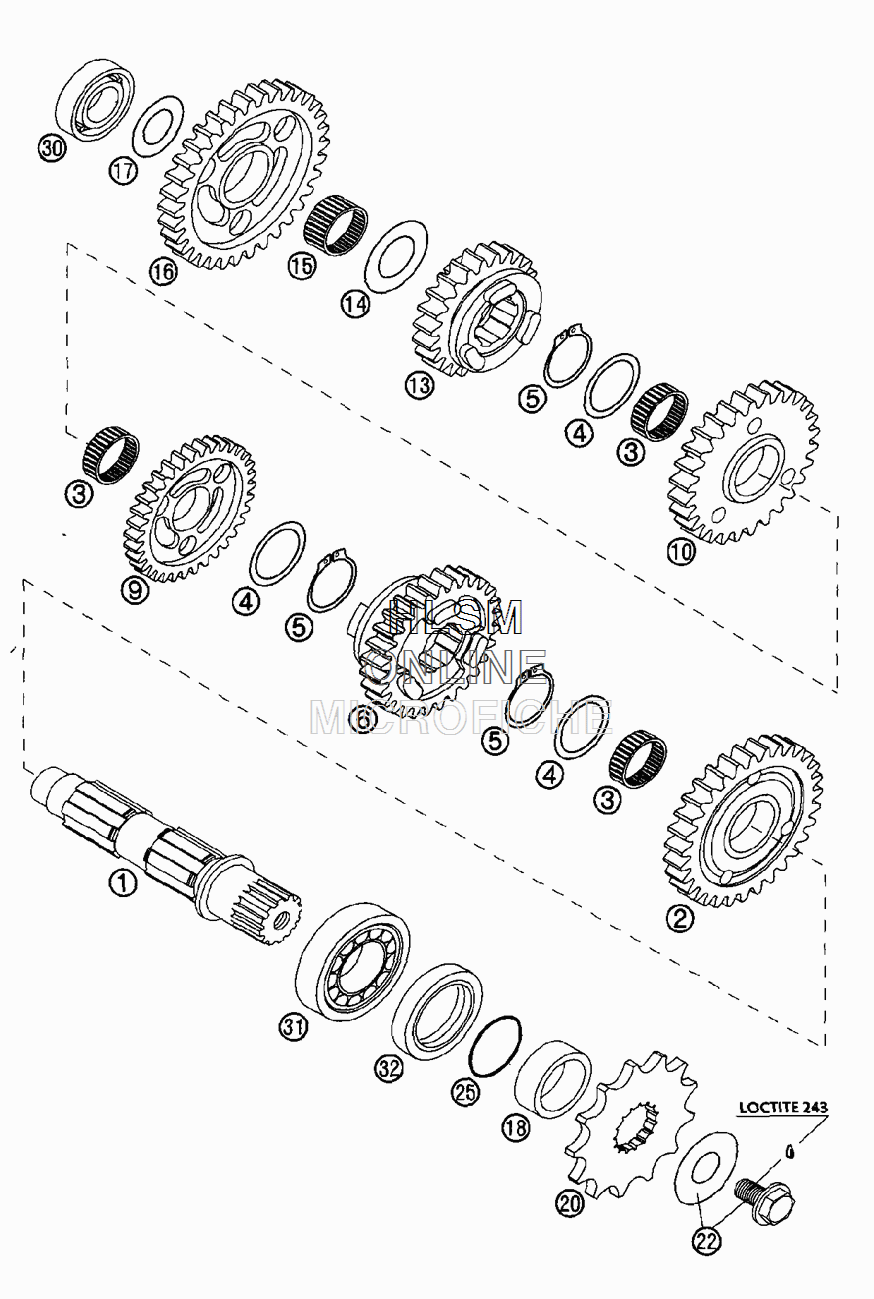

TRANSMISSION - COUNTERSHAFT для Ktm 250 EXC-G/RFS - 2003 года выпуска

  • №
    Артикул
    Название
  • 1
    59033010000 MAIN SHAFT RACING
    MAIN SHAFT RACING
  • 2
    59833012056 IDLER GEAR 2.GEAR 36-T
    IDLER GEAR 2.GEAR 36-T
  • 3
    0405222611 NEEDLE BEAR.K 22X26X10 DIVIDED
    NEEDLE BEAR.K 22X26X10 DIVIDED
  • 4
    59033031000 STOP DISK 25,2X32X1,5
    STOP DISK 25,2X32X1,5
  • 5
    0471250120 CIRCLIP DIN0471-25X1,2
    CIRCLIP DIN0471-25X1,2
  • 6
    59833016060 SLIDING GEAR 6.GEAR 25-T
    SLIDING GEAR 6.GEAR 25-T
  • 9
    59833014058 IDLER GEAR 4.GEAR 32-T
    IDLER GEAR 4.GEAR 32-T
  • 10
    59833013057 IDLER GEAR 3.GEAR 34-T
    IDLER GEAR 3.GEAR 34-T
  • 13
    59833015059 SLIDING GEAR 5.GEAR 30-T
    SLIDING GEAR 5.GEAR 30-T
  • 14
    59033080000 SHIM 20X32X1
    SHIM 20X32X1
  • 15
    0405202612 NEEDLE BEARING K 20X26X12
    NEEDLE BEARING K 20X26X12
  • 16
    59833011055 IDLER GEAR 1.GEAR 38-T
    IDLER GEAR 1.GEAR 38-T
  • 17
    56033030000 STOP DISK 17,2X30X1
    STOP DISK 17,2X30X1
  • 18
    54633014100 SPACER BUSHING 12MM
    SPACER BUSHING 12MM
  • 20
    50033029013 SPROCKET 13-T
    SPROCKET 13-T
  • 20
    50033029014 SPROCKET 14-T
    SPROCKET 14-T
  • 20
    50033029015 SPROCKET 15-T
    SPROCKET 15-T
  • 22
    59033034044 SCREW+SPRING WASHER
    SCREW+SPRING WASHER
  • 25
    0770020220 O-RING 25,12X1,78 NBR70
    O-RING 25,12X1,78 NBR70
  • 30
    0625062034 BALL BEARING 6203 C3 NTN
    BALL BEARING 6203 C3 NTN
  • 31
    49030023000 CYL.ROLL BEARING NJ205 C3
    CYL.ROLL BEARING NJ205 C3
  • 32
    0760324571 SHAFT SEAL RING 32X45X7 BSLNBR
    SHAFT SEAL RING 32X45X7 BSLNBR
