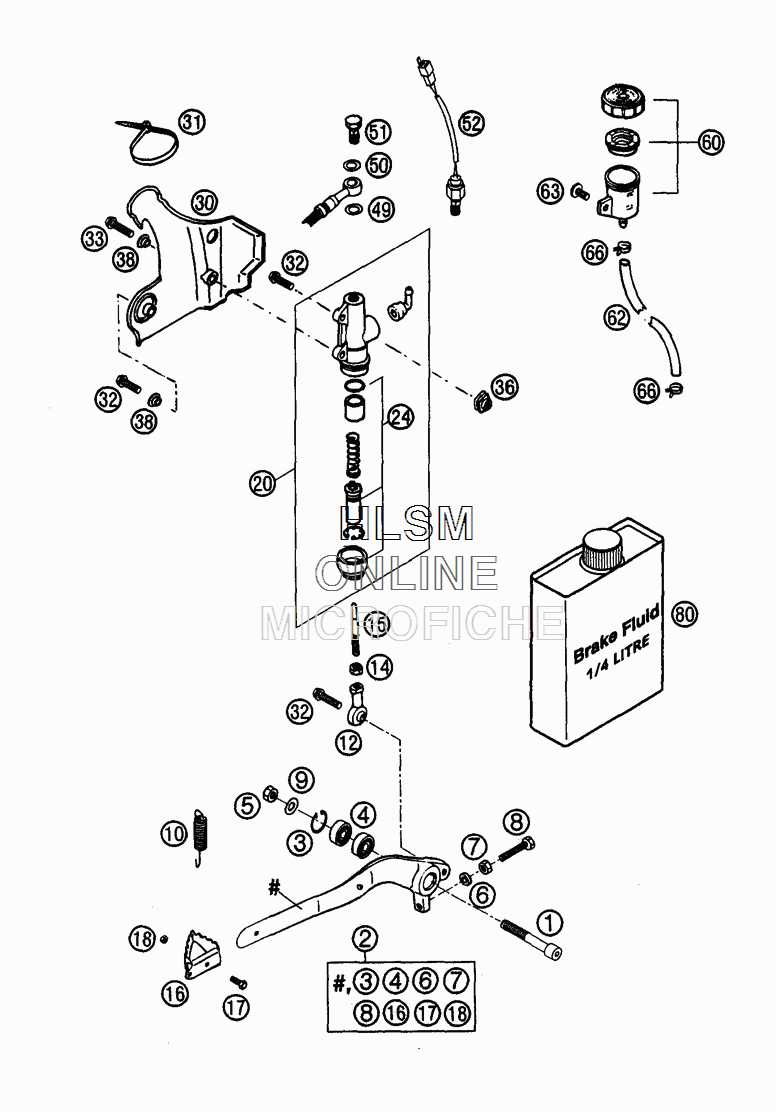

REAR BRAKE CONTROL для Ktm 125 SX - 2003 года выпуска`
-
№АртикулНазвание
-
10912080603 AH SCREW DIN0912-M 8X60AH SCREW DIN0912-M 8X60
-
254603060144 FOOT BRAKE LEVER CPL.FOOT BRAKE LEVER CPL.
-
30472022100 CIRCLIP DIN0472.22X1CIRCLIP DIN0472.22X1
-
40625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
50985080003 SELF LOCKING NUT D1N0985-M 8SELF LOCKING NUT D1N0985-M 8
-
612011016000 WASHER 6X12X3WASHER 6X12X3
-
70934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
80933060353 HH SCREW DIN0933-M 6X35HH SCREW DIN0933-M 6X35
-
90125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
1054603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
1254603069000 SWIVEL HEAD M6 FOOT BRAKE LEV.SWIVEL HEAD M6 FOOT BRAKE LEV.
-
140934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1554603068000 PRESSURE ROD ALUPRESSURE ROD ALU
-
1654603060150 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
170933050163 HH SCREW DIN0933-M 5X16HH SCREW DIN0933-M 5X16
-
180985050003 SELF LOCKING NUT D1N0985-M 5SELF LOCKING NUT D1N0985-M 5
-
2050313060100 FOOT BRAKE CYL. 13MM NATUREFOOT BRAKE CYL. 13MM NATURE
-
2454513150000 REPAIR KIT PISTON 13MMREPAIR KIT PISTON 13MM
-
3054613038100 BRAKE CYL.PROTECT.BRAKE CYL.PROTECT.
-
3144011076200 CABLE TIE 200MMCABLE TIE 200MM
-
320015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
330015060253 HH COLLAR SCREW M 6X25 WS=8HH COLLAR SCREW M 6X25 WS=8
-
3650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
3850308053000 BUSH FOR SPOILER 6X11X16X7,5BUSH FOR SPOILER 6X11X16X7,5
-
4942013026000 CU-SEAL RING DIN7603-10X16X1,5CU-SEAL RING DIN7603-10X16X1,5
-
5150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
5250311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
6054513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
6258007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
630014060103 HH COLLAR SCREW M6X1O WS=8HH COLLAR SCREW M6X1O WS=8
-
6658007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
80306054 BRAKE FLUID DOT 5.1BRAKE FLUID DOT 5.1
