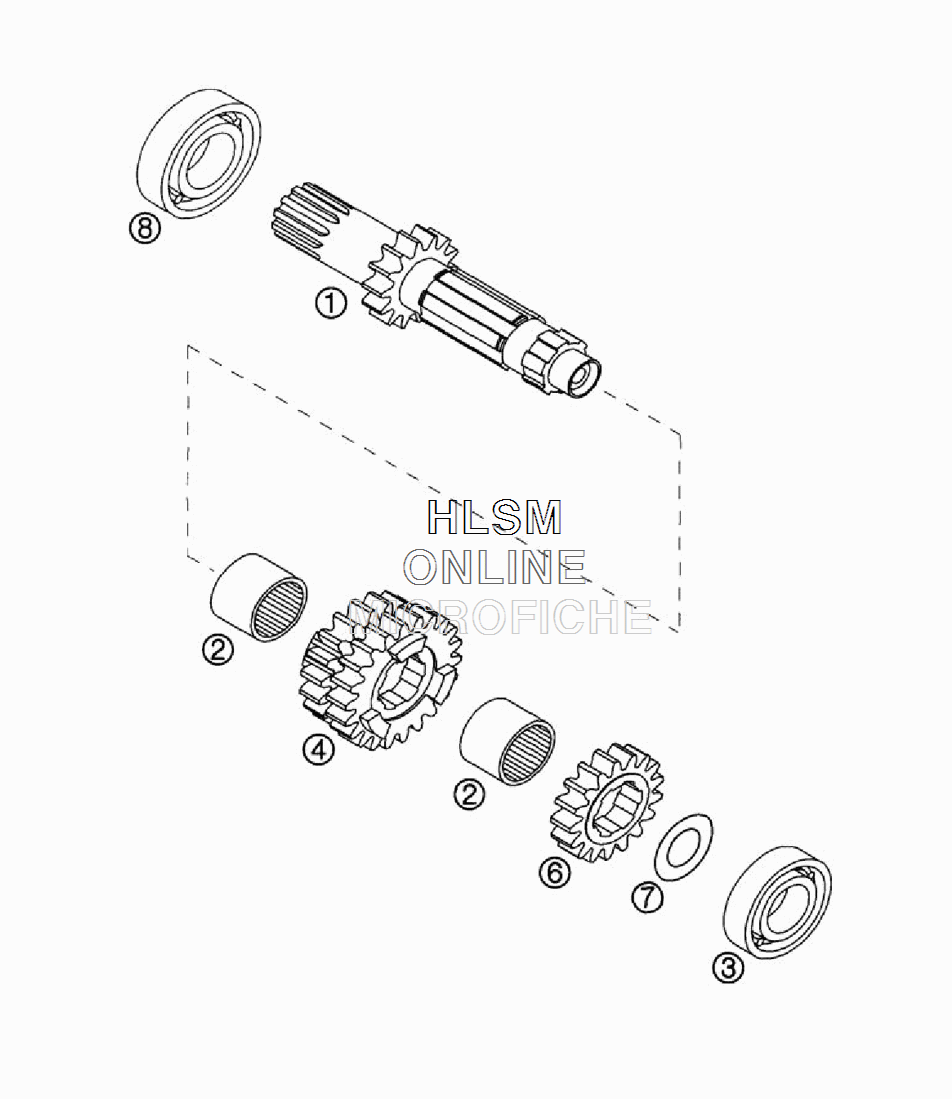

TRANSMISSION I 4 GEAR для Ktm 520 SX Racing - 2002 года выпуска`
-
№АртикулНазвание
-
159033001100 MAIN SHAFT-ZB 16-TMAIN SHAFT-ZB 16-T
-
259033032100 SPACER BUSHING 25X30X24,4SPACER BUSHING 25X30X24,4
-
30625062034 BALL BEARING 6203 C3 NTNBALL BEARING 6203 C3 NTN
-
459033003046 SLIDING GEAR 3/4.G 20/22-T46SLIDING GEAR 3/4.G 20/22-T46
-
659033002037 SOLID GEAR 2.G 18-T "37"SOLID GEAR 2.G 18-T "37"
-
756033030000 STOP DISK 17,2X30X1STOP DISK 17,2X30X1
-
80625062054 BALL BEARING 6205 C3 NTNBALL BEARING 6205 C3 NTN
