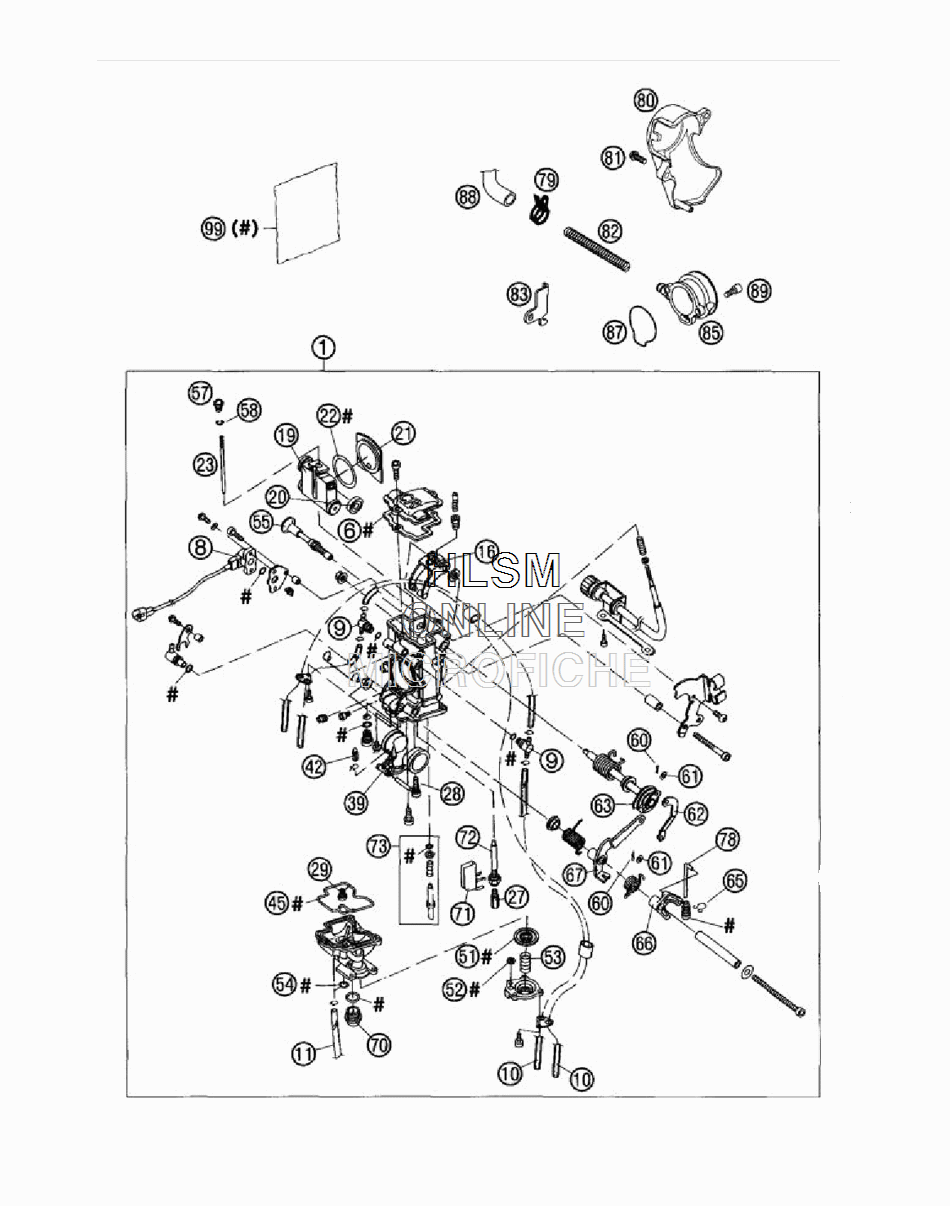

CARBURETOR KEIHIN CR39 для Ktm 520 SX Racing - 2002 года выпуска`
-
№АртикулНазвание
-
159031001100 CARBURETOR KEIH.SX FCR 39CARBURETOR KEIH.SX FCR 39
-
659031028000 GASKET CARBURETOR COVERGASKET CARBURETOR COVER
-
859031077000 THROTTLE POSITION SENSORTHROTTLE POSITION SENSOR
-
959031083000 T-JOINT BREATHER HOSET-JOINT BREATHER HOSE
-
1031007007101 BREATHER HOSE 4X6MMBREATHER HOSE 4X6MM
-
1152031137001 3 PVC-HOSE 3X5MMPVC-HOSE 3X5MM
-
1659031035051 LINK ARM THROTTLE VALVE CPL.LINK ARM THROTTLE VALVE CPL.
-
1959031035015 THROTTLE VALVE 15 CPL.THROTTLE VALVE 15 CPL.
-
2059031035050 BEARING THROTTLE VALVEBEARING THROTTLE VALVE
-
2159031035053 GASKET PLATE THROTTLE VALVEGASKET PLATE THROTTLE VALVE
-
2259031035052 GASKET WASHER THROTTLE VALVEGASKET WASHER THROTTLE VALVE
-
23590311340VR JET NEEDLE OBEVRJET NEEDLE OBEVR
-
2359031023000 JET NEEDLE OBEVPJET NEEDLE OBEVP
-
23590310340VR JET NEEDLE OBDVRJET NEEDLE OBDVR
-
23590310340TM JET NEEDLE OBDTMJET NEEDLE OBDTM
-
2754531623160 MAIN JET 160 KEIHINMAIN JET 160 KEIHIN
-
2754531623165 MAIN JET 165 KEIHINMAIN JET 165 KEIHIN
-
2754531623172 MAIN JET 172 KEIHINMAIN JET 172 KEIHIN
-
2754531623175 MAIN JET 175 KEIHINMAIN JET 175 KEIHIN
-
2754531623178 MAIN JET 178 KEIHINMAIN JET 178 KEIHIN
-
2754531623180 MAIN JET 180 KEIHINMAIN JET 180 KEIHIN
-
2859031607045 IDLE JET 45IDLE JET 45
-
2859031607048 IDLE JET 48IDLE JET 48
-
2859031607050 IDLE JET 50IDLE JET 50
-
2859031607052 IDLE JET 52IDLE JET 52
-
2959031051085 STARTER JET 85STARTER JET 85
-
3959031009000 FLOAT CPL.FLOAT CPL.
-
4254631220000 FLOAT NEEDLEFLOAT NEEDLE
-
4559031010000 GASKET FLOAT CHAMBERGASKET FLOAT CHAMBER
-
5159031057000 DIAPHRAGM ACCELERATOR PUMPDIAPHRAGM ACCELERATOR PUMP
-
5259031058000 U-RINGU-RING
-
5359031059000 COIL SPRINGCOIL SPRING
-
5459031058100 O-RINGO-RING
-
5559031048000 STARTER VALVE CPL.STARTER VALVE CPL.
-
5759031032000 NEEDLE SET SCREWNEEDLE SET SCREW
-
5859031029000 BAR CLIPBAR CLIP
-
600094010103 SPLIT PIN 1,0X10SPLIT PIN 1,0X10
-
6159031087000 PVC WASHER 3X8X0,5PVC WASHER 3X8X0,5
-
6259031063000 LINK ARM CPL.LINK ARM CPL.
-
6359031046000 THROTTLE SHAFT CPL.THROTTLE SHAFT CPL.
-
6559031084000 TUBE CLIPTUBE CLIP
-
6659031056000 LINK LEVERLINK LEVER
-
6759031062000 LINK LEVER CPL.LINK LEVER CPL.
-
7059031014000 HOLDING BOLTHOLDING BOLT
-
7159031085000 BUFFER PLATEBUFFER PLATE
-
7259031121000 NEEDLE JETNEEDLE JET
-
7359031017000 ADJUST SCREW CPL.ADJUST SCREW CPL.
-
7859031061000 ROD ACCELERATOR PUMPROD ACCELERATOR PUMP
-
7958431082100 YDNAC-CLAMP 16MMYDNAC-CLAMP 16MM
-
8059031086000 CARBURETOR COVERCARBURETOR COVER
-
810015060163 HH COLLAR SCREW M 6X16 WS=8HH COLLAR SCREW M 6X16 WS=8
-
8232003073000 PRESSURE SPRINGPRESSURE SPRING
-
8359031029024 SLIDE STOP 24,5MMSLIDE STOP 24,5MM
-
8559031040100 INTAKE FUNNELINTAKE FUNNEL
-
8759031040010 O-RING FOR INTAKE FUNNELO-RING FOR INTAKE FUNNEL
-
8859031050100 ENGINE BREATHER TUBE 00ENGINE BREATHER TUBE 00
-
890912050123 AH SCREW DIN0912-M 5X12AH SCREW DIN0912-M 5X12
-
9959031099000 GASKET SET FCR39 KEIHINGASKET SET FCR39 KEIHIN
