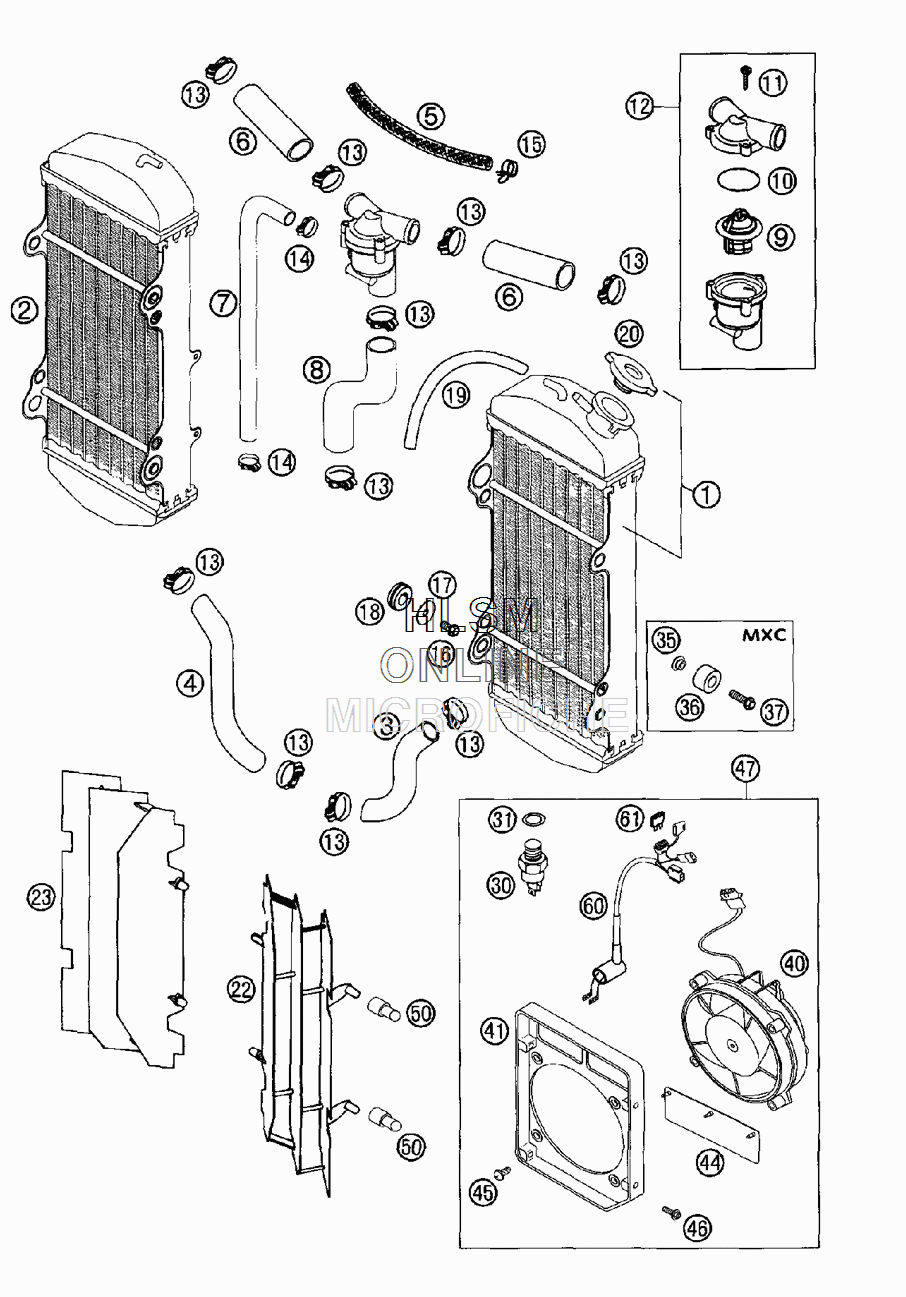

COOLING SYSTEM для Ktm 520 MXC Racing - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    59035007200 RADIATOR L/S 45351U
    RADIATOR L/S 45351U
  • 2
    59035008200 RADIATOR R/S 45352U
    RADIATOR R/S 45352U
  • 3
    59035024000 RADIATORHOSE L/S RADIATOR-CYL.
    RADIATORHOSE L/S RADIATOR-CYL.
  • 4
    59035124000 RADIATORHOSE R/S RADIATOR-CYL.
    RADIATORHOSE R/S RADIATOR-CYL.
  • 5
    54435024001 HOSE ID 7,5 PER METER
    HOSE ID 7,5 PER METER
  • 6
    59035126000 RADIATOR HOSE RADIATOR-THERMO.
    RADIATOR HOSE RADIATOR-THERMO.
  • 7
    59035025001 RADIATOR HOSE SECONDARY (RADIATOR-THERMOSTAT)
    RADIATOR HOSE SECONDARY (RADIATOR-THERMOSTAT)
  • 8
    59035025000 RADIATOR HOSE THERMOS.-HEAD
    RADIATOR HOSE THERMOS.-HEAD
  • 9
    58335017000 THERMOSTAT 70 DEGREES
    THERMOSTAT 70 DEGREES
  • 10
    0770320020 O-RING 32,00X2,00
    O-RING 32,00X2,00
  • 11
    0016040183 PLASTIC SCREW KB40X18 WN1412
    PLASTIC SCREW KB40X18 WN1412
  • 12
    59035013044 THERMOSTAT CPL.
    THERMOSTAT CPL.
  • 13
    10001020000 HOSE CLAMP GEMI 16-27
    HOSE CLAMP GEMI 16-27
  • 14
    58335099000 HOSE CLAMP GEMI 10-16
    HOSE CLAMP GEMI 10-16
  • 15
    50231005000 HOSE CLAMP YDNAC 10119
    HOSE CLAMP YDNAC 10119
  • 16
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 17
    0021060003 WASHER DIN9021-A 6,4
    WASHER DIN9021-A 6,4
  • 18
    41001052000 RUBBER SLEEVE D=12MM
    RUBBER SLEEVE D=12MM
  • 19
    55007016001 PVC-HOSE 7X10 PER METRE
    PVC-HOSE 7X10 PER METRE
  • 20
    58035016000 RADIATOR CAP SMALL 19,6 PSI
    RADIATOR CAP SMALL 19,6 PSI
  • 22
    54635034200 RADIATOR PROTECT.L/S COUL.
    RADIATOR PROTECT.L/S COUL.
  • 23
    54635134200 RADIATOR PROTECT.R/S COUL.
    RADIATOR PROTECT.R/S COUL.
  • 30
    58035045000 THERMOSWITCH 80-85 DG
    THERMOSWITCH 80-85 DG
  • 31
    0603142015 ALU SEALRING DIN7603-14X20X1,5
    ALU SEALRING DIN7603-14X20X1,5
  • 35
    50308052000 BUSH FOR SPOILER 6X11X16X5
    BUSH FOR SPOILER 6X11X16X5
  • 36
    50307014000 TANK ROLLER 12X26X12
    TANK ROLLER 12X26X12
  • 37
    0015060203 HH COLLAR SCREW M 6X20 WS=8
    HH COLLAR SCREW M 6X20 WS=8
  • 40
    58435041000 FAN CPL. 12V
    FAN CPL. 12V
  • 41
    59035044000 FAN CAP 2001
    FAN CAP 2001
  • 44
    58435044050 FAN FLAP RUBBER
    FAN FLAP RUBBER
  • 45
    0081500181 EIOT PT SCREW KA 50X18 WN1411
    EIOT PT SCREW KA 50X18 WN1411
  • 46
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 47
    59035041044 FAN CPL. RACING 2001
    FAN CPL. RACING 2001
  • 50
    54635034050 ADAPTER FOR RADIATOR PROTECTOR
    ADAPTER FOR RADIATOR PROTECTOR
  • 60
    59011079000 FAN WIRING HARNESS
    FAN WIRING HARNESS
  • 61
    58011109005 FUSE 5 A
    FUSE 5 A
