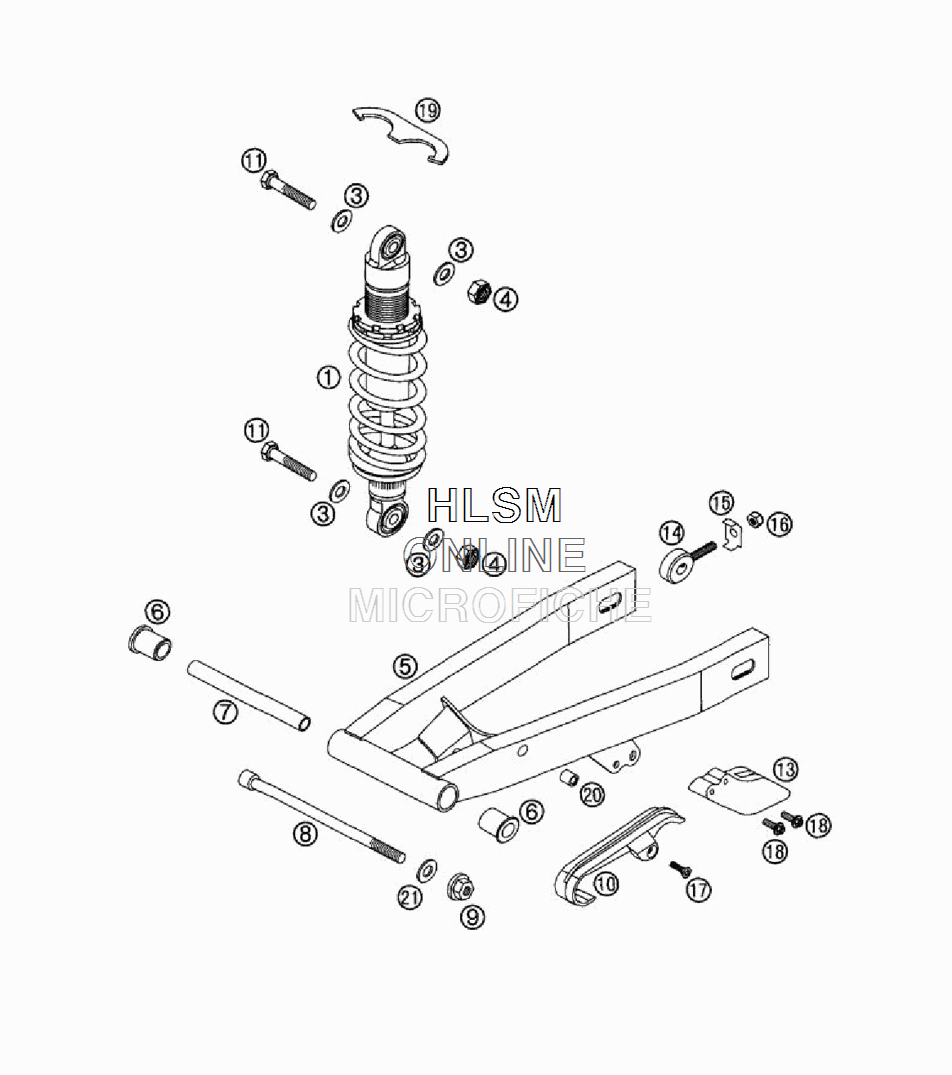

SWINGARM W/ SHOCK ABSORBER для Ktm 50 SX Pro Jr - 2002 года выпуска

  • №
    Артикул
    Название
  • 1
    0318W910 MONOSHOCK WP
    MONOSHOCK WP
  • 3
    0125100003 WASHER DIN0125-A10,5
    WASHER DIN0125-A10,5
  • 4
    0982100003 SELF LOCK.NUT DIN0982-M10 HIGH
    SELF LOCK.NUT DIN0982-M10 HIGH
  • 5
    45104030000 SWING ARM
    SWING ARM
  • 6
    45004031000 BEARING BUSH L=30 MM
    BEARING BUSH L=30 MM
  • 7
    45004039000 SPACING TUBE 10X13X140 MM
    SPACING TUBE 10X13X140 MM
  • 8
    45103014000 SWING ARM BOLT M10X165
    SWING ARM BOLT M10X165
  • 9
    49009082000 SELF LOCKING NUT M10 WS=17
    SELF LOCKING NUT M10 WS=17
  • 10
    45104066000 CHAIN SLID. GUARD FRO. MINI 02
    CHAIN SLID. GUARD FRO. MINI 02
  • 11
    0931100453 HH SCREW DIN0931-M10X45
    HH SCREW DIN0931-M10X45
  • 13
    45104070000 CHAIN GUARD MINI
    CHAIN GUARD MINI
  • 14
    45010083000 CHAIN ADJUSTER
    CHAIN ADJUSTER
  • 15
    45010083060 SUPPORTING BRACKET
    SUPPORTING BRACKET
  • 16
    0985080003 SELF LOCKING NUT DIN0985-M 8
    SELF LOCKING NUT DIN0985-M 8
  • 17
    0991060203 FLAT HEAD SCREW DIN7991-M 6X20
    FLAT HEAD SCREW DIN7991-M 6X20
  • 18
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 19
    45004010090 HOOK WRENCH
    HOOK WRENCH
  • 20
    55003139900 BLIND RIVET INT. THREAD M6 STE.
    BLIND RIVET INT. THREAD M6 STE.
  • 21
    31004001100 WASHER 10,3 X 21 X 3
    WASHER 10,3 X 21 X 3
