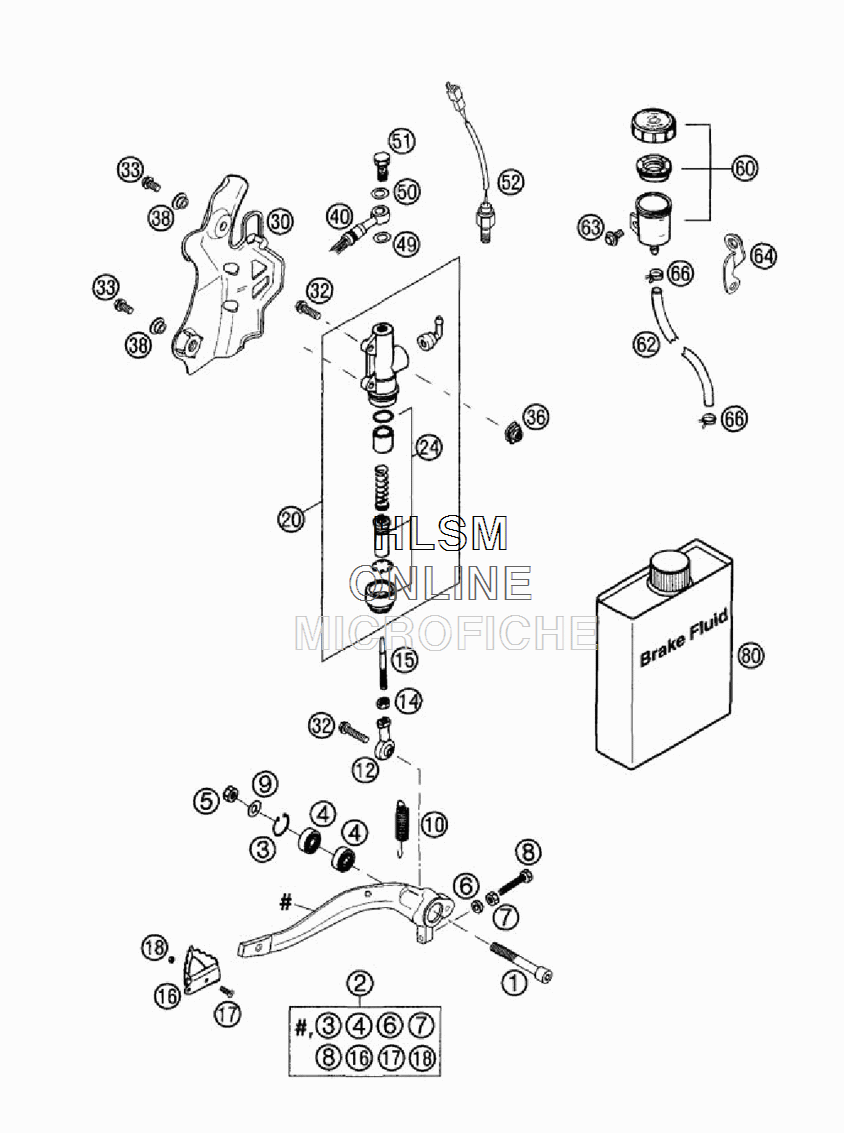

REAR BRAKE CONTROL для Ktm 400 MXC Racing - 2002 года выпуска`
![](/wa-data/public/shop/sheme/ktm/moto/9d256fc7-6f41-4562-b16f-fa1efda19468.gif)
-
№АртикулНазвание
-
10912080603 AH SCREW DIN0912-M 8X60AH SCREW DIN0912-M 8X60
-
259003060044 REAR FOOT BRAKE LEVER CPL.REAR FOOT BRAKE LEVER CPL.
-
30472022100 CIRCLIP DIN0472-22X1CIRCLIP DIN0472-22X1
-
40625006087 GROOVED BALL BEAR. 608 2RS C3GROOVED BALL BEAR. 608 2RS C3
-
50985080003 SELF LOCKING NUT DIN0985-M 8SELF LOCKING NUT DIN0985-M 8
-
612011016000 WASHER6X12X3WASHER6X12X3
-
70934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
80933060353 HH SCREW DIN0933-M 6X35HH SCREW DIN0933-M 6X35
-
90125080003 WASHER DIN0125-A 8,4WASHER DIN0125-A 8,4
-
1054603062000 RETURN SPRING FOR BRAKE LEVERRETURN SPRING FOR BRAKE LEVER
-
1254603069000 SWIVEL HEAD M6 FOOT BRAKE LEVSWIVEL HEAD M6 FOOT BRAKE LEV
-
140934060003 HEXAGON NUT DIN0934-M 6HEXAGON NUT DIN0934-M 6
-
1554603068000 PRESSURE ROD ALUPRESSURE ROD ALU
-
1654603060150 STEP PLATE FOR BRAKE LEVERSTEP PLATE FOR BRAKE LEVER
-
170966050203 OVAL HEAD SCREW DIN0966-M 5X20OVAL HEAD SCREW DIN0966-M 5X20
-
180985050003 SELF LOCKING NUT DIN0985-M 5SELF LOCKING NUT DIN0985-M 5
-
2050313060100 FOOT BRAKE CYL. 13MM NATUREFOOT BRAKE CYL. 13MM NATURE
-
2450313061000 REP. KIT PISTON 12MMREP. KIT PISTON 12MM
-
3059003093000 BRAKECYL.PROTECTORBRAKECYL.PROTECTOR
-
320015060203 HH COLLAR SCREW M 6X20 WS=8HH COLLAR SCREW M 6X20 WS=8
-
330015060123 HH COLLAR SCREW M 6X12 WS=8HH COLLAR SCREW M 6X12 WS=8
-
3650235033300 SNAP-NUT HOLDER M6 KP142SNAP-NUT HOLDER M6 KP142
-
3850308052000 BUSH FOR SPOILER 6X11X16X5BUSH FOR SPOILER 6X11X16X5
-
4050313070000 BRAKE HOSE RE.590MMBRAKE HOSE RE.590MM
-
4942013026000 CU-SEAL RING DIN7603-10X16X1,5CU-SEAL RING DIN7603-10X16X1,5
-
5042013226000 CU-SEAL RING DIN7603-10X16X1CU-SEAL RING DIN7603-10X16X1
-
5150213025000 HOLLOW SCREW M10X1X19HOLLOW SCREW M10X1X19
-
5250311051100 BRAKE LIGHT SWITCH REARBRAKE LIGHT SWITCH REAR
-
6054513030044 BRAKE FLUID RESERVOIRBRAKE FLUID RESERVOIR
-
6258007016101 HOSE FOR RESERVOIR 6X1,5HOSE FOR RESERVOIR 6X1,5
-
630014060103 HH COLLAR SCREW M6X10 WS=8HH COLLAR SCREW M6X10 WS=8
-
6459013068000 BRACKET BRAKE FLUID RESERVOIRBRACKET BRAKE FLUID RESERVOIR
-
6658007017000 YDNAC CLAMP 10101 (9MM)YDNAC CLAMP 10101 (9MM)
-
80306054 BRAKE FLUID DOT 5.1 1/4 LITREBRAKE FLUID DOT 5.1 1/4 LITRE
