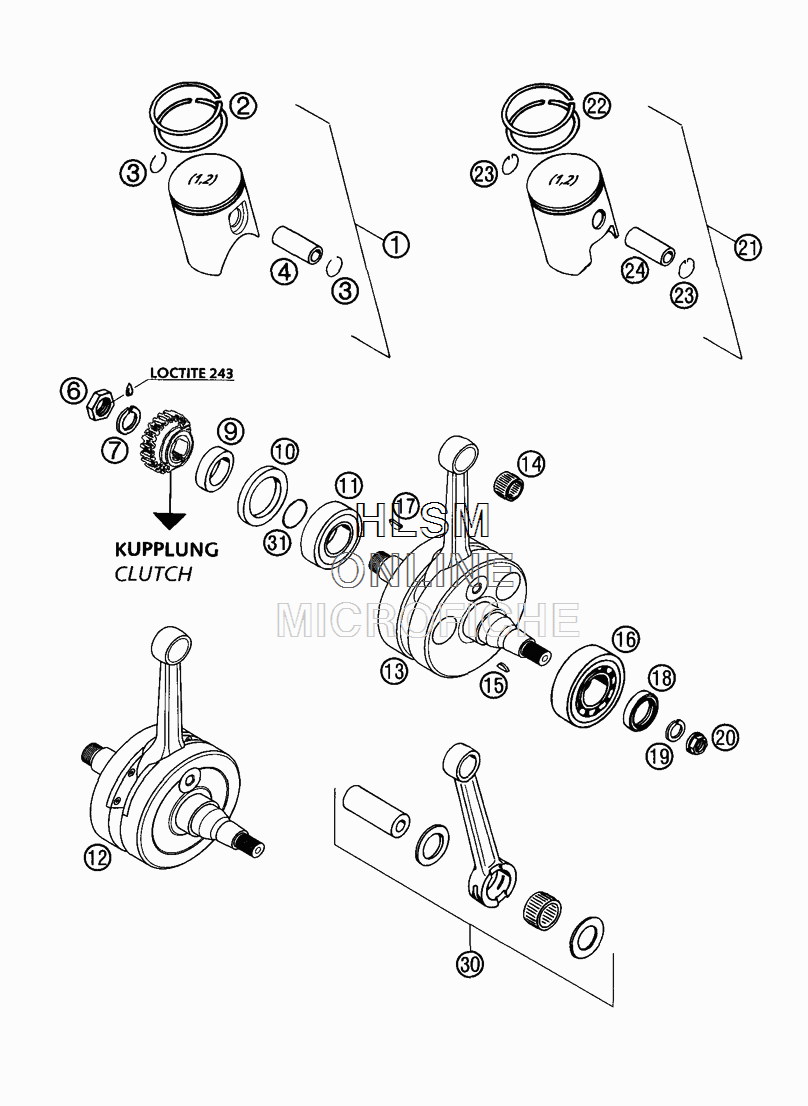

CRANKSHAFT W/ PISTON для Ktm 250 SX - 2002 года выпуска
-
№АртикулНазвание
-
154630207000I PISTON I CPL. 66,4MM (ONE RING)PISTON I CPL. 66,4MM (ONE RING)
-
154630207000II PISTON II CPL. 66,4MM (ONE RING)PISTON II CPL. 66,4MM (ONE RING)
-
154630207100I PISTON I CPL. 66,4MM(TWO RING)PISTON I CPL. 66,4MM(TWO RING)
-
154630207100II PISTON 11 CPL. 66,4MM (TWO RING)PISTON 11 CPL. 66,4MM (TWO RING)
-
254630232000 SQUARE RING 66,4MMSQUARE RING 66,4MM
-
354030074000 WIRE LOCK RING C18X1,5WIRE LOCK RING C18X1,5
-
454630233000 PISTON PIN 18X55,8PISTON PIN 18X55,8
-
654630029000 HEX.NUT L/SH M18X1,5HEX.NUT L/SH M18X1,5
-
758132072000 LOCK WASHER VSK 18LOCK WASHER VSK 18
-
954630016400 SPACER SLEEVE 28X38X11,5SPACER SLEEVE 28X38X11,5
-
100760385273 SHAFT SEAL RING 38X52X7BTSLSHAFT SEAL RING 38X52X7BTSL
-
110625622064 BALL BEARING 62206.803107BALL BEARING 62206.803107
-
1254630218200 CRANKSHAFT STR. 72CRANKSHAFT STR. 72
-
1454430034000 NEEDLE BEARING KBK 18X22X20NEEDLE BEARING KBK 18X22X20
-
150888030050 WOODRUFF KEY DIN6888-3X5X13WOODRUFF KEY DIN6888-3X5X13
-
1656530123100 CYLIND.ROLLER BEARING N1207NSKCYLIND.ROLLER BEARING N1207NSK
-
176946005 WOODRUFF KEY 5X6,5 HARDEDWOODRUFF KEY 5X6,5 HARDED
-
180760253570 SHAFT SEAL RING 25X35X7 BTSLSHAFT SEAL RING 25X35X7 BTSL
-
1950230029012 LOCKING RING VSK 12LOCKING RING VSK 12
-
2049030021000 COLLAR NUT M12X1 R/SCOLLAR NUT M12X1 R/S
-
2454630033000 PISTON PIN 18 X 44PISTON PIN 18 X 44
-
3054630215000 CONROD REP. KIT 250 L=129MMCONROD REP. KIT 250 L=129MM
-
3054630015044 CONR.REP.KIT 250/300 132MMCONR.REP.KIT 250/300 132MM
-
3054730015000 CONR.REP.KIT 360/380 135MMCONR.REP.KIT 360/380 135MM
-
310770250015 O-RING 25,00X1,50 NBR 70O-RING 25,00X1,50 NBR 70
