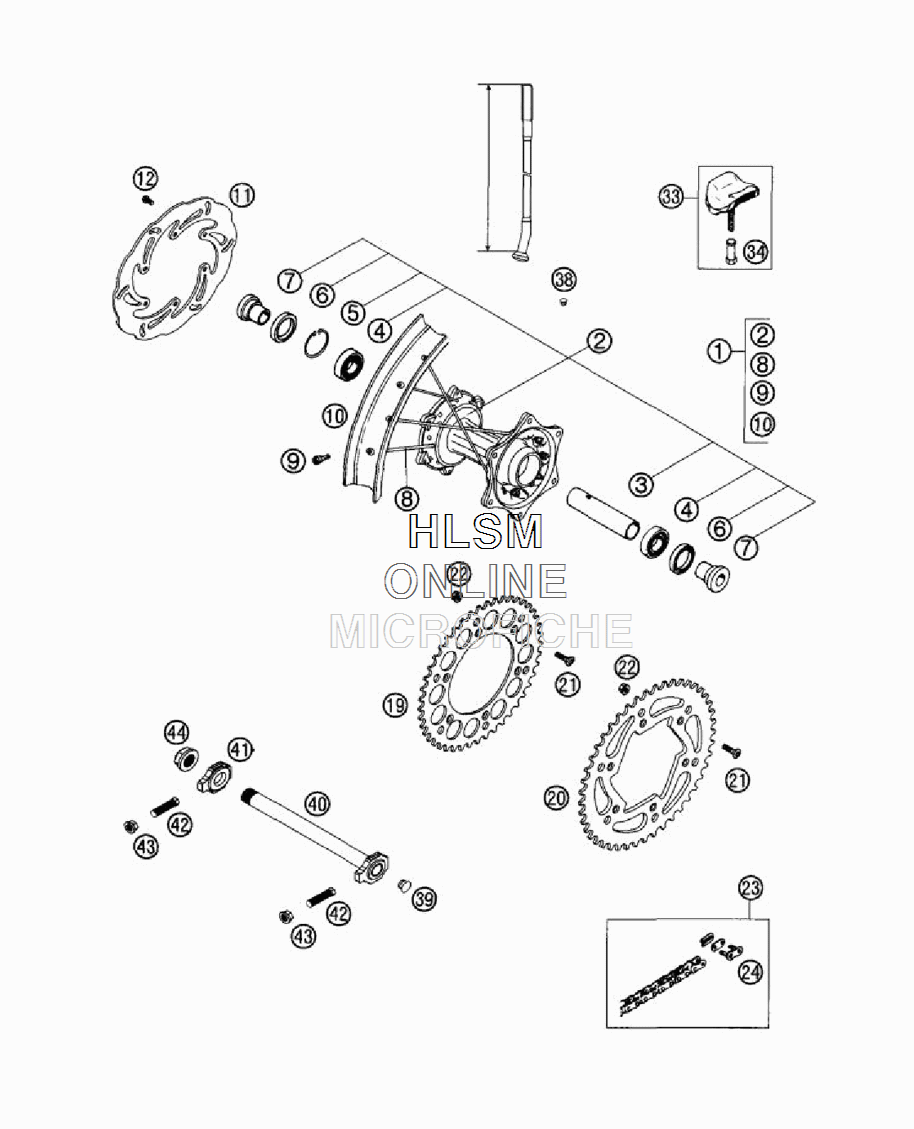

REAR WHEEL для Ktm 200 MXC - 2002 года выпуска`
-
№АртикулНазвание
-
150310001244 REARWHEEL CPL.2.15X18"DIDREARWHEEL CPL.2.15X18"DID
-
250310010044 REARWHEEL HUB CPL.REARWHEEL HUB CPL.
-
359010011000 BEARING SPACER 121,5MMBEARING SPACER 121,5MM
-
40625060058 GROOVED BALL BEAR. 6005 2RS C3GROOVED BALL BEAR. 6005 2RS C3
-
50472047175 CIRCLIP DIN0472-47X1,75CIRCLIP DIN0472-47X1,75
-
60760324771 SHAFT SEAL RING 32X47X7 BSLSHAFT SEAL RING 32X47X7 BSL
-
754610016000 BUSHING FOR HUBBUSHING FOR HUB
-
850310071197 SPOKE M5X197-10G 18" DDESPOKE M5X197-10G 18" DDE
-
958309072000 SPOKE NIPPLE M5-TA (8X21MM)SPOKE NIPPLE M5-TA (8X21MM)
-
1054610070300 REAR RIM 2,15X18 DIDREAR RIM 2,15X18 DID
-
1150310060000 BRAKE DISC REAR D=220MMBRAKE DISC REAR D=220MM
-
1259009062013 SPECIAL SCREW M6X13 WS8 10.9SPECIAL SCREW M6X13 WS8 10.9
-
1958310051038 REAR SPROCKET 38-TREAR SPROCKET 38-T
-
1958310151040 REAR SPROCKET 40-TREAR SPROCKET 40-T
-
1958310051042 REAR SPROCKET 42-TREAR SPROCKET 42-T
-
1958310151045 REAR SPROCKET 45-TREAR SPROCKET 45-T
-
2058310151048 REAR SPROCKET 48-TREAR SPROCKET 48-T
-
2058310151050 REAR SPROCKET 50-TREAR SPROCKET 50-T
-
2058310151052 REAR SPROCKET 52-TREAR SPROCKET 52-T
-
2154510052100 SPROCKET SCREW-AH M8X26 10.9SPROCKET SCREW-AH M8X26 10.9
-
2254310086200 SELF LOCKING NUT M8 10.9SELF LOCKING NUT M8 10.9
-
2350010065000 CHAIN 5/8X1/4" (118 ROLLS)CHAIN 5/8X1/4" (118 ROLLS)
-
2350010065100 O-RING CHAIN 5/8X1/4" DID (114 ROLLS)O-RING CHAIN 5/8X1/4" DID (114 ROLLS)
-
2350010065001 CHAIN /M 5/8X1/4" PER METRECHAIN /M 5/8X1/4" PER METRE
-
2350010065101 O-R.CHAIN 5/8X1/4"/M W.LINKO-R.CHAIN 5/8X1/4"/M W.LINK
-
2450010066000 MASTER LINK 5/8X1/4"MASTER LINK 5/8X1/4"
-
2450010066100 MASTER LINK 5/8X1/4" O-RINGMASTER LINK 5/8X1/4" O-RING
-
3354010100100 RIM LOCK VM3 (2.15")RIM LOCK VM3 (2.15")
-
3450310090050 NUT FOR WHEEL HOLDERNUT FOR WHEEL HOLDER
-
3855003135000 PLUG FOR RIMPLUG FOR RIM
-
3950210086000 COVERING CAP SFL16COVERING CAP SFL16
-
4050310085044 AXLE REAR CPL. 265MMAXLE REAR CPL. 265MM
-
4150310084000 CHAIN TENSIONER R/SCHAIN TENSIONER R/S
-
4250304040000 SPECIAL SCREW M10X1,25 WS=10SPECIAL SCREW M10X1,25 WS=10
-
4358414030000 HH COLLAR NUT M10X1,25 WS=13HH COLLAR NUT M10X1,25 WS=13
-
4450310099000 HEXAGON NUT M20X1,5HEXAGON NUT M20X1,5
