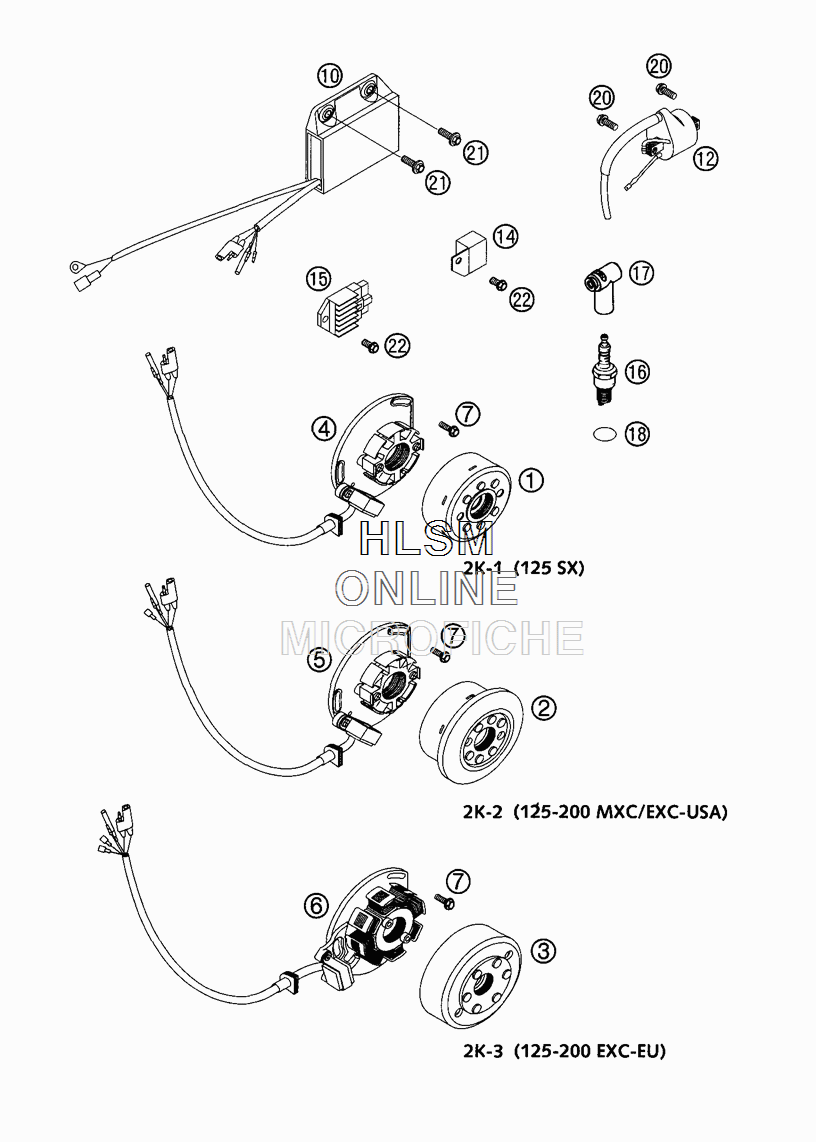

IGNITION SYSTEM для Ktm 125 SX - 2002 года выпуска
-
№АртикулНазвание
-
154739005000 FLYWHEEL KOKUSAN 2K-1/2K-4FLYWHEEL KOKUSAN 2K-1/2K-4
-
450339004000 STATOR KOKUSAN 2K-1STATOR KOKUSAN 2K-1
-
70015050163 HH COLLAR SCREW M5X16 WS=8HH COLLAR SCREW M5X16 WS=8
-
1050339031400 CDI UNIT CU7442 2000 (125 KOKUSAN)CDI UNIT CU7442 2000 (125 KOKUSAN)
-
1052339031300 CDI UNIT CU7434 (200 KOKUSAN)CDI UNIT CU7434 (200 KOKUSAN)
-
1250339006000 IGNITION COIL KOKU.IGNITION COIL KOKU.
-
1650339093100 SPARK PLUG NGK BR 9EVXSPARK PLUG NGK BR 9EVX
-
1654331093310 SPARK PLUG NGK BR8EGSPARK PLUG NGK BR8EG
-
1754531010000 SPARK PLUG CAP LB05EMH NGKSPARK PLUG CAP LB05EMH NGK
-
180770150040 O-RING 15,00X4,00 NBR 70O-RING 15,00X4,00 NBR 70
-
200015060163 HH COLLAR SCREW M6X16 WS=8HH COLLAR SCREW M6X16 WS=8
-
210014060203 HH COLLAR SCREW M6X20 WS=8HH COLLAR SCREW M6X20 WS=8
-
220015060123 HH COLLAR SCREW M6X12 WS=8HH COLLAR SCREW M6X12 WS=8
