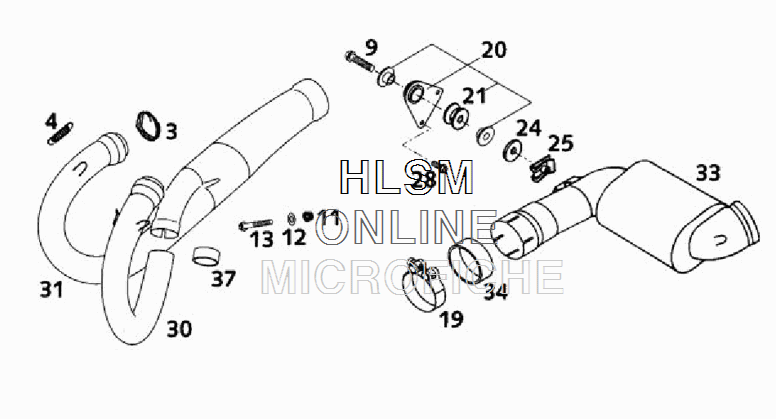

PIPES - PRE SILENCER для Ktm LC4 640 Super Moto - 2001 года выпуска

  • №
    Артикул
    Название
  • 3
    58305053001 CERAMIC LINE 1 METER
    CERAMIC LINE 1 METER
  • 4
    54309036000 RETURN SPRING L=38 MM
    RETURN SPRING L=38 MM
  • 9
    0015080353 HH COLLAR SCREW M 8X35 WS=10
    HH COLLAR SCREW M 8X35 WS=10
  • 11
    51010086000 SELF LOCKING NUT M 6 COPPER
    SELF LOCKING NUT M 6 COPPER
  • 12
    0125060003 WASHER DIN0125-A 6,4
    WASHER DIN0125-A 6,4
  • 13
    0015060403 HH COLLAR SCREW M 6X40 WS=8
    HH COLLAR SCREW M 6X40 WS=8
  • 19
    58705058000 PRE SILENCER CLAMP D=53MM
    PRE SILENCER CLAMP D=53MM
  • 20
    5830506504490 BRACKET-PRE-SIL.CPL SILVER
    BRACKET-PRE-SIL.CPL SILVER
  • 21
    54305068100 DAMPING COMPONENT SILICON GREY
    DAMPING COMPONENT SILICON GREY
  • 24
    51005067000 INSOLATE WASHER 8,5X28X3
    INSOLATE WASHER 8,5X28X3
  • 25
    54603048000 RANGE CHANGE METAL NUT M8
    RANGE CHANGE METAL NUT M8
  • 28
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 30
    58405007200 EXHAUST PIPE L/S "KTM584"
    EXHAUST PIPE L/S "KTM584"
  • 31
    58405008200 EXHAUST PIPE R/S "KTM584"
    EXHAUST PIPE R/S "KTM584"
  • 33
    58405050300 PRESILENCER "KTM V2"
    PRESILENCER "KTM V2"
  • 34
    58405005001 GRAPHITRING 45X50X25
    GRAPHITRING 45X50X25
  • 37
    58405005000 GRAPHIT RING 32X37X20
    GRAPHIT RING 32X37X20
