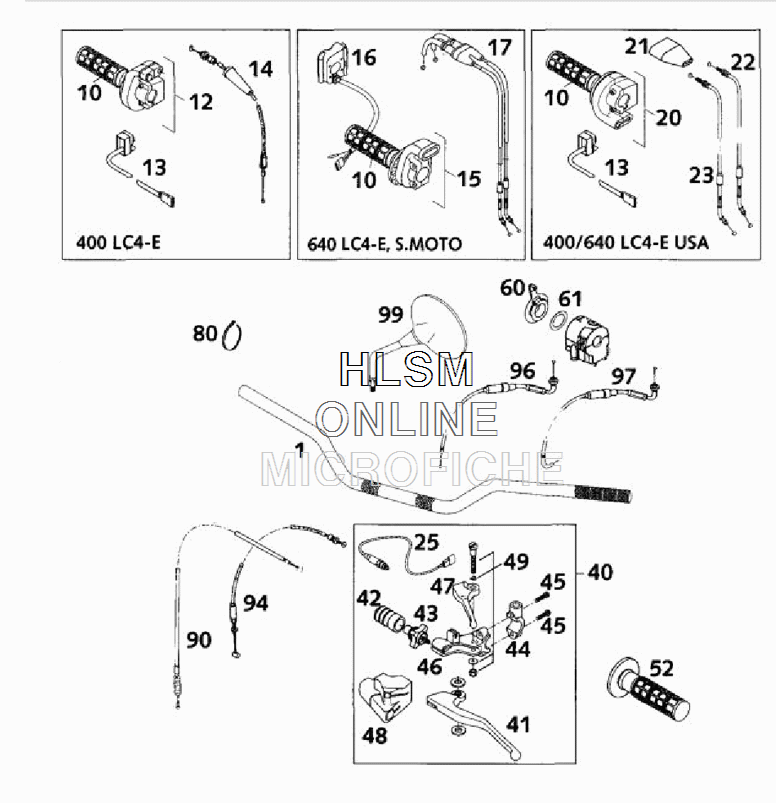

HANDLEBAR W/ CONTROLS для Ktm LC4 640 Dual Sport - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    58302001400 ALU-HANDLEBAR SILVER "4T"
    ALU-HANDLEBAR SILVER "4T"
  • 10
    58302003000 TWIST GRIP COVER DOMINO
    TWIST GRIP COVER DOMINO
  • 12
    58302010000 THROTTLE GRIP CPL.DOMINO
    THROTTLE GRIP CPL.DOMINO
  • 13
    58411074000 START-STOP SWITCH
    START-STOP SWITCH
  • 15
    58402010600 THROTTLE GRIP CPL.
    THROTTLE GRIP CPL.
  • 16
    59011074100 START-STOP SWITCH CPL.
    START-STOP SWITCH CPL.
  • 20
    58402010400 THROTTGRIP CPL. DOMINO-MIKUNI
    THROTTGRIP CPL. DOMINO-MIKUNI
  • 21
    58302016200 PROTECT COVER RXC/DUKE USA
    PROTECT COVER RXC/DUKE USA
  • 22
    58402092000 THROTT. CABLE "CLOSE" DOM.-MIKUNI
    THROTT. CABLE "CLOSE" DOM.-MIKUNI
  • 23
    58402192000 THROTTCABLE "OPEN" DOM.-MIKUNI
    THROTTCABLE "OPEN" DOM.-MIKUNI
  • 25
    58411049000 CLUTCH SWITCH
    CLUTCH SWITCH
  • 40
    58402040100 CLUTCH LEVER CPL. DOMINO
    CLUTCH LEVER CPL. DOMINO
  • 41
    58402042000 CLUTCH LEVER LOOSE SILVER
    CLUTCH LEVER LOOSE SILVER
  • 42
    58302126000 CLUTCH LEVER BOOT
    CLUTCH LEVER BOOT
  • 43
    58302043000 ADJUSTMENT SCREW CPL.M7
    ADJUSTMENT SCREW CPL.M7
  • 44
    58302044000 CLAMP MIRROW M10X1,25
    CLAMP MIRROW M10X1,25
  • 45
    0015060253 HH COLLAR SCREW M 6X25 WS=8
    HH COLLAR SCREW M 6X25 WS=8
  • 46
    58402041000 JOINT (PIVOT) DOMINO
    JOINT (PIVOT) DOMINO
  • 47
    58302047000 DECOMPRESSION LEVER LOOSE
    DECOMPRESSION LEVER LOOSE
  • 48
    58402048000 PLASTIC COVER
    PLASTIC COVER
  • 49
    58302049000 LEVER SCREW CPL.
    LEVER SCREW CPL.
  • 52
    58302052000 FIXED GRIP DOMINO
    FIXED GRIP DOMINO
  • 60
    58302050100 CHOKE LEVER DOMINO
    CHOKE LEVER DOMINO
  • 61
    0988253505 THRUST WASH. DIN0988-25X35X0,5
    THRUST WASH. DIN0988-25X35X0,5
  • 80
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 80
    44011076100 CABLE TIE 100MM
    CABLE TIE 100MM
  • 90
    58402090000 CLUTCH CABLE 4T L=1115MM
    CLUTCH CABLE 4T L=1115MM
  • 94
    58302094200 DECOMPR. CABLE L=693,5
    DECOMPR. CABLE L=693,5
  • 97
    58402095000 CHOKE CABLE FOR MIKUNI
    CHOKE CABLE FOR MIKUNI
  • 99
    58412040100 REAR MIRROR L/S+R/S
    REAR MIRROR L/S+R/S
  • 60
    58302050100 CHOKE LEVER DOMINO
    CHOKE LEVER DOMINO
  • 61
    0988253505 THRUST WASH. DIN0988-25X35X0,5
    THRUST WASH. DIN0988-25X35X0,5
  • 80
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 80
    44011076100 CABLE TIE 100MM
    CABLE TIE 100MM
  • 90
    58402090000 CLUTCH CABLE 4T L=1115MM
    CLUTCH CABLE 4T L=1115MM
  • 94
    58302094200 DECOMPR. CABLE L=693,5
    DECOMPR. CABLE L=693,5
  • 97
    58402095000 CHOKE CABLE FOR MIKUNI
    CHOKE CABLE FOR MIKUNI
  • 99
    58412040100 REAR MIRROR L/S+R/S
    REAR MIRROR L/S+R/S
