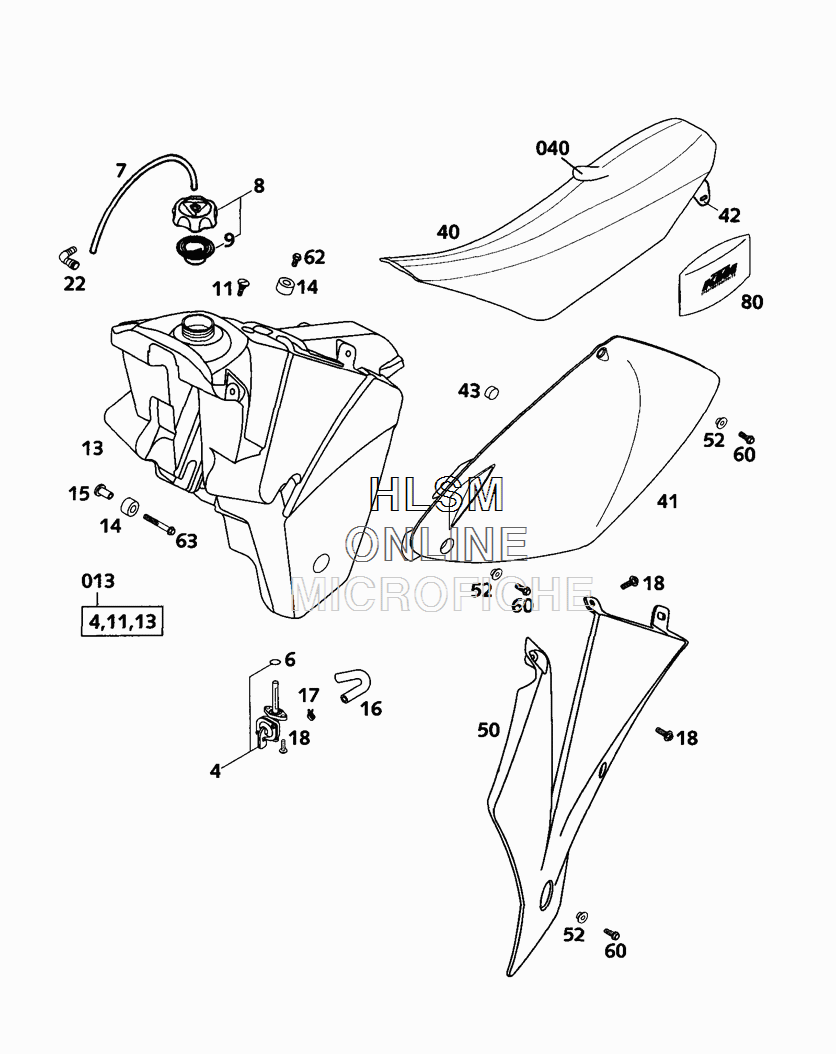

TANK - SEAT - COVER для Ktm 520 SX Racing - 2001 года выпуска

  • №
    Артикул
    Название
  • 4
    50307005000 GAS COCK MIKUNI ON/OFF (CK-81)
    GAS COCK MIKUNI ON/OFF (CK-81)
  • 6
    0770130023 O-RING 13,00X2,30
    O-RING 13,00X2,30
  • 7
    31007107001 PVC-HOSE 6X9 MM PER METER
    PVC-HOSE 6X9 MM PER METER
  • 8
    59007008044 FILLER CAP CPL. SMALL EUROPE
    FILLER CAP CPL. SMALL EUROPE
  • 9
    49007009000 GASKET FOR FILLER CAP
    GASKET FOR FILLER CAP
  • 11
    50307011000 SCREW SEAT FASTENING
    SCREW SEAT FASTENING
  • 013
    59007113000 FUEL TANK CPL.7,5L.
    FUEL TANK CPL.7,5L.
  • 14
    50307014000 TANK ROLLER 12X26X12
    TANK ROLLER 12X26X12
  • 15
    59003001055 SUPORT BUSHING TANKROLLER
    SUPORT BUSHING TANKROLLER
  • 16
    59007016000 FUEL HOSE 7,5X13MM
    FUEL HOSE 7,5X13MM
  • 17
    58031005000 CLAMP YDNAC 10128 12MM
    CLAMP YDNAC 10128 12MM
  • 18
    0017060203 SPECIAL SCREW T60 6X20
    SPECIAL SCREW T60 6X20
  • 22
    51030022000 ANGLE PIECE 90 DEGREE M10X1
    ANGLE PIECE 90 DEGREE M10X1
  • 40
    50307140000 SEAT SX 2001
    SEAT SX 2001
  • 040
    50307140050 SEAT COVER
    SEAT COVER
  • 41
    5030804100090 SIDE COVER L/S SILVER
    SIDE COVER L/S SILVER
  • 41
    5030804200090 SIDE COVER R/S SILVER
    SIDE COVER R/S SILVER
  • 42
    50307041000 SEAT BRACKET L/S-R/S
    SEAT BRACKET L/S-R/S
  • 43
    50308042055 RUBBER FOR SIDE COVER
    RUBBER FOR SIDE COVER
  • 50
    5030815000004 SPOILER L/S ORANGE
    SPOILER L/S ORANGE
  • 50
    5030815100004 SPOILER R/S ORANGE
    SPOILER R/S ORANGE
  • 52
    50308052000 BUSH FOR SPOILER 6X11X16X5
    BUSH FOR SPOILER 6X11X16X5
  • 60
    0015060163 HH COLLAR SCREW M 6X16 WS=8
    HH COLLAR SCREW M 6X16 WS=8
  • 62
    0015060123 HH COLLAR SCREW M 6X12 WS=8
    HH COLLAR SCREW M 6X12 WS=8
  • 63
    0015060453 HH COLLAR SCREW M 6X45 WS=8
    HH COLLAR SCREW M 6X45 WS=8
  • 80
    59029099000 TOOL SET
    TOOL SET
