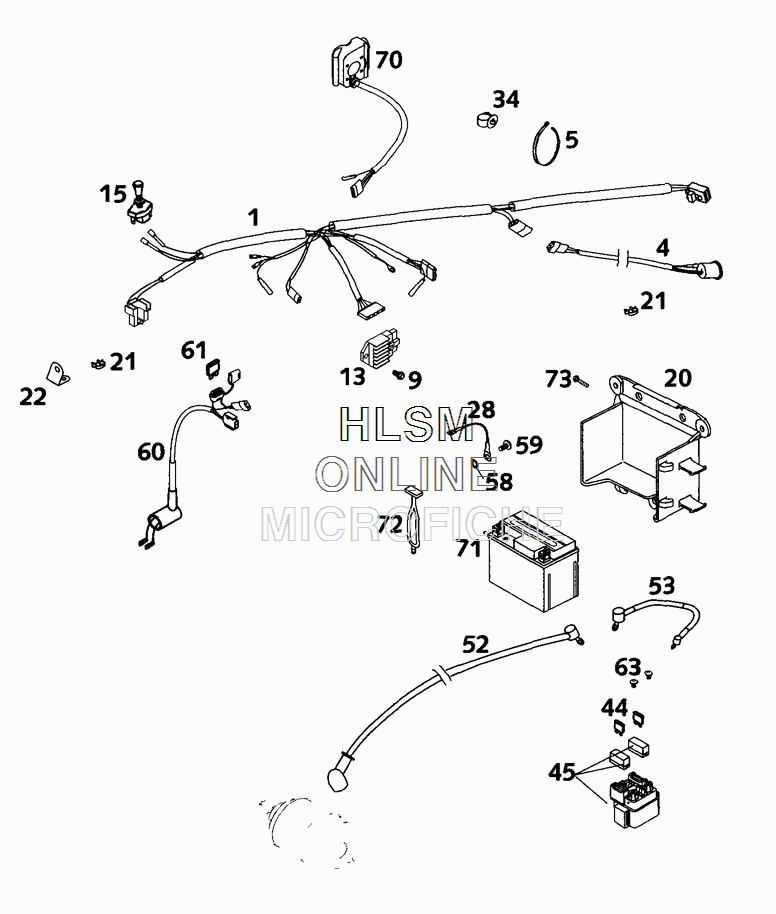

WIRING HARNESS для Ktm 520 MXC Racing - 2001 года выпуска

  • №
    Артикул
    Название
  • 1
    59011075300 WIRING HARNESS FRONT
    WIRING HARNESS FRONT
  • 4
    50311076000 WIRING HARNESS REAR
    WIRING HARNESS REAR
  • 5
    44011076200 CABLE TIE 200MM
    CABLE TIE 200MM
  • 5
    44011076305 CABLE TIE 290MM
    CABLE TIE 290MM
  • 9
    0015060123 HH COLLAR SCREW MX12 WS=8
    HH COLLAR SCREW MX12 WS=8
  • 13
    50311034000 VOLTAGE REGULA. 12V
    VOLTAGE REGULA. 12V
  • 15
    55011599000 PULL SWITCH LOOSE
    PULL SWITCH LOOSE
  • 20
    59011055000 BATTERY CARRIER PLASTIC BLACK
    BATTERY CARRIER PLASTIC BLACK
  • 21
    57013072000 WIRING HOLDER 12MM 0210
    WIRING HOLDER 12MM 0210
  • 21
    57013072100 WIRING HOLDER 16MM
    WIRING HOLDER 16MM
  • 22
    54611090000 RETAINING PLATE FOR BATTERY
    RETAINING PLATE FOR BATTERY
  • 28
    58411097100 GROUND CABLE D=6MM L=140MM
    GROUND CABLE D=6MM L=140MM
  • 34
    58111076000 CABLE SUPPORT KHS NR.150-47610
    CABLE SUPPORT KHS NR.150-47610
  • 44
    58011109110 FUSE 10A 2000
    FUSE 10A 2000
  • 45
    58211058000 STARTER RELAY DUKE
    STARTER RELAY DUKE
  • 52
    58411059100 STARTERCABLE 700 MM
    STARTERCABLE 700 MM
  • 53
    58711086000 WIRING HARNESS BATTERY DUKE
    WIRING HARNESS BATTERY DUKE
  • 58
    58411098100 CONTACT WASHER M6 VSV-K6
    CONTACT WASHER M6 VSV-K6
  • 59
    0014060103 HH COLLAR SCREW MX10 WS=8
    HH COLLAR SCREW MX10 WS=8
  • 60
    59011079000 FAN WIRING HARNESS
    FAN WIRING HARNESS
  • 61
    58011109005 FUSE 5 A
    FUSE 5 A
  • 63
    0902060083 AH OVAL SCREW DIN0902-MX8
    AH OVAL SCREW DIN0902-MX8
  • 70
    59011074000 START-STOP TIP SWITCH CPL.
    START-STOP TIP SWITCH CPL.
  • 71
    58511053000 BATTERY 12V 4AH RALLYE
    BATTERY 12V 4AH RALLYE
  • 72
    50303018000 RUBBER FOR CENTER STAND
    RUBBER FOR CENTER STAND
  • 73
    0017060203 SPECIAL SCREW T60X20
    SPECIAL SCREW T60X20
