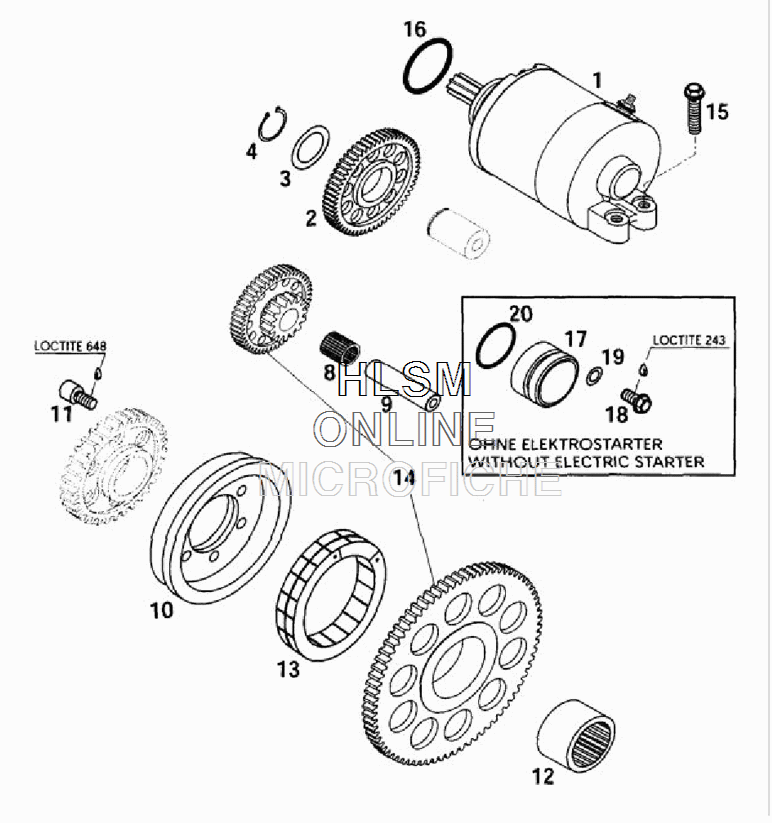

ELECTRIC STARTER для Ktm 520 EXC Racing - 2001 года выпуска`

№

Артикул

Название
1

59040001000 E-STARTER ENGINE KPL. 0,45 KW

E-STARTER ENGINE KPL. 0,45 KW

71 840 ₽
2

59040022058 INTERMEDIATE GEAR 58-T

INTERMEDIATE GEAR 58-T

12 730 ₽
3

54633090000 STOP DISK 17,2X24X1

STOP DISK 17,2X24X1

820 ₽
4

0471170010 CIRCLIP DIN0471-17X1

CIRCLIP DIN0471-17X1

290 ₽
8

0405101316 NEEDLE BEARING K 10X13X16 TN

NEEDLE BEARING K 10X13X16 TN

5 000 ₽
9

59040029000 BEARING BOLT 5X10X47

BEARING BOLT 5X10X47

2 490 ₽
10

59040025000 FREE WHEEL HUB

FREE WHEEL HUB

23 250 ₽
11

0912060106 AH SCREW DIN0912-M 6X10 10.9

AH SCREW DIN0912-M 6X10 10.9

120 ₽
12

0618301617 NEEDLE BEARING HK 3016 B

NEEDLE BEARING HK 3016 B

2 800 ₽
13

58440026000 FREE-WHEEL FWD 332008 BLS

FREE-WHEEL FWD 332008 BLS

27 020 ₽
14

59040020144 FREE WHEEL +REDUCT.G. 75-48/15-Z

FREE WHEEL +REDUCT.G. 75-48/15-Z

0 ₽
15

0015060203 HH COLLAR SCREW M 6X20 WS=8

HH COLLAR SCREW M 6X20 WS=8

500 ₽
16

0770250030 O-RING 25,00X3,00 NBR 70

O-RING 25,00X3,00 NBR 70

620 ₽
17

59040034000 CAP COVER 3OX20XMM

CAP COVER 3OX20XMM

2 370 ₽
18

0015060123 HH COLLAR SCREW M 6X12 WS=8

HH COLLAR SCREW M 6X12 WS=8

500 ₽
19

0125060003 WASHER DIN0125-A 6,4

WASHER DIN0125-A 6,4

120 ₽
20

0770250030 O-RING 25,00X3,00 NBR 70

O-RING 25,00X3,00 NBR 70

620 ₽
